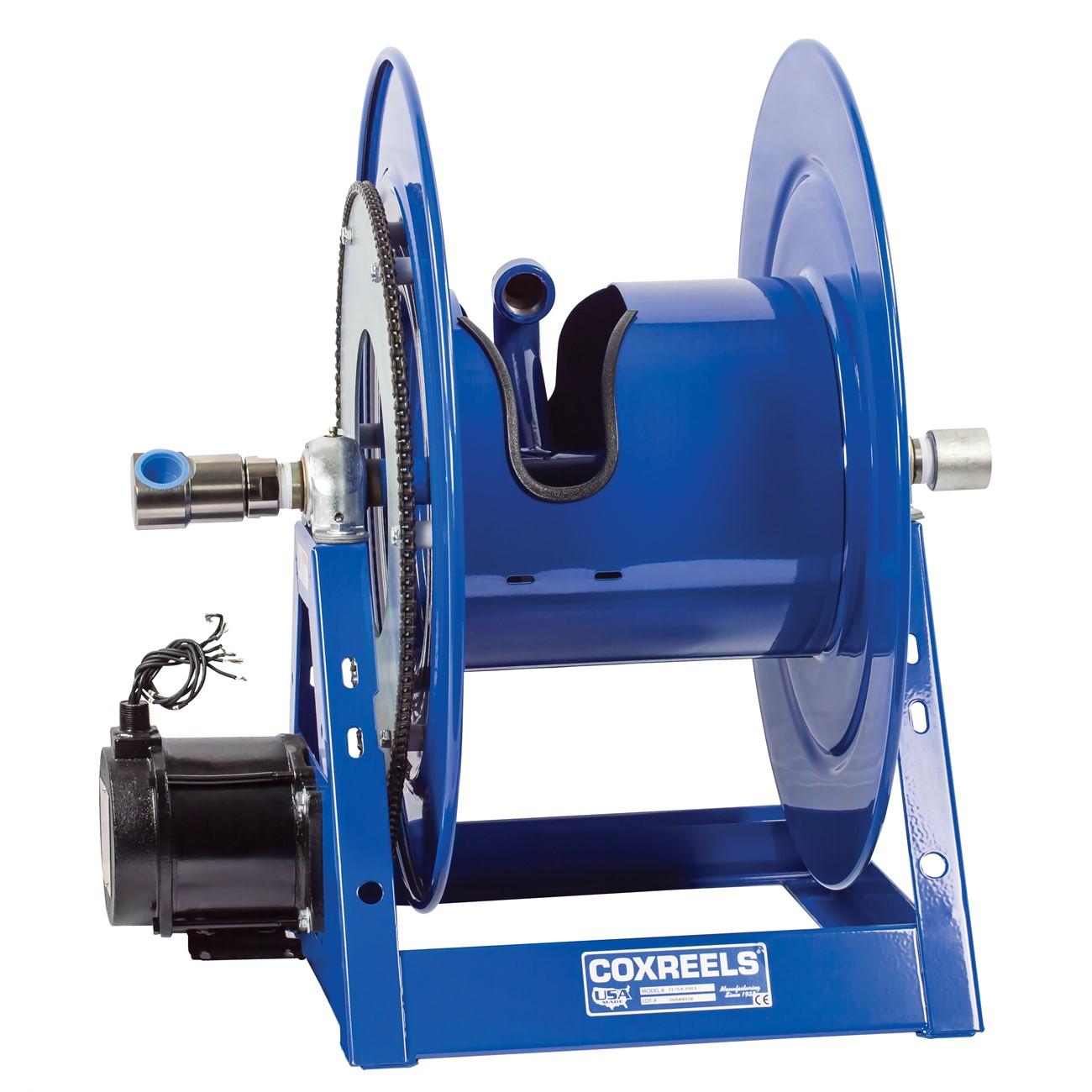

Coxreels 1175-6-50-EA Motorized Hose Reel 1 in 50 Ft

Product Description

The COXREELS 1175-6-50-EA is a heavy-duty motorized hose reel from the 1175 Series, engineered for high-capacity hose storage and controlled retrieval in demanding trade environments. Powered by a 115-volt AC, 1/2 HP reversible AC rectified motor, this reel accepts hose with a 1-inch inner diameter and 1-7/16-inch outer diameter up to 50 feet in length. The one-piece all-welded 12-gauge steel A-frame base provides a rigid, non-bolted structure built to handle the mechanical stress of daily service use. Licensed contractors and industrial maintenance crews working with water, air, or fluid transfer lines are the primary installers of this unit.

The 1175-6-50-EA fits applications where larger hose diameters and longer hose runs are required, making it well suited for commercial facilities, fleet maintenance shops, agricultural operations, and industrial service bays. The motorized drive handles retrieval without manual cranking, reducing operator fatigue during repetitive service cycles. The open drum slot design keeps hose wraps flat and even, preventing kinking and uneven spooling during both payout and retrieval. Where consistent hose management is critical to workflow efficiency, this reel is a practical, durable solution.

Key Features

• 115-volt AC, 1/2 HP reversible AC rectified motor for powered hose retrieval
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for enhanced strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish resists chipping, rust, and corrosion for long service life

Compatibility

Designed for use with hose measuring 1-inch inner diameter and 1-7/16-inch outer diameter up to 50 feet in length; intended as a direct-fit unit within the COXREELS 1175 Series for larger-capacity hose reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting and electrical connections. Disconnect and lock out all electrical power before servicing the motor or swivel assembly. Secure the reel to a structural surface using the mounting pattern integrated into the steel base. Verify that the power supply matches the 115-volt AC motor requirement before energizing the unit.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1-7/16 inches
• Hose Capacity: 50 feet
• Motor: 115 volts AC, 1/2 HP reversible AC rectified
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 93 pounds
• UPC: 674255826441

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-50-EA
