Coxreels 1175-6-50-E Motorized Hose Reel 1 in Id 50 Ft

Product Description

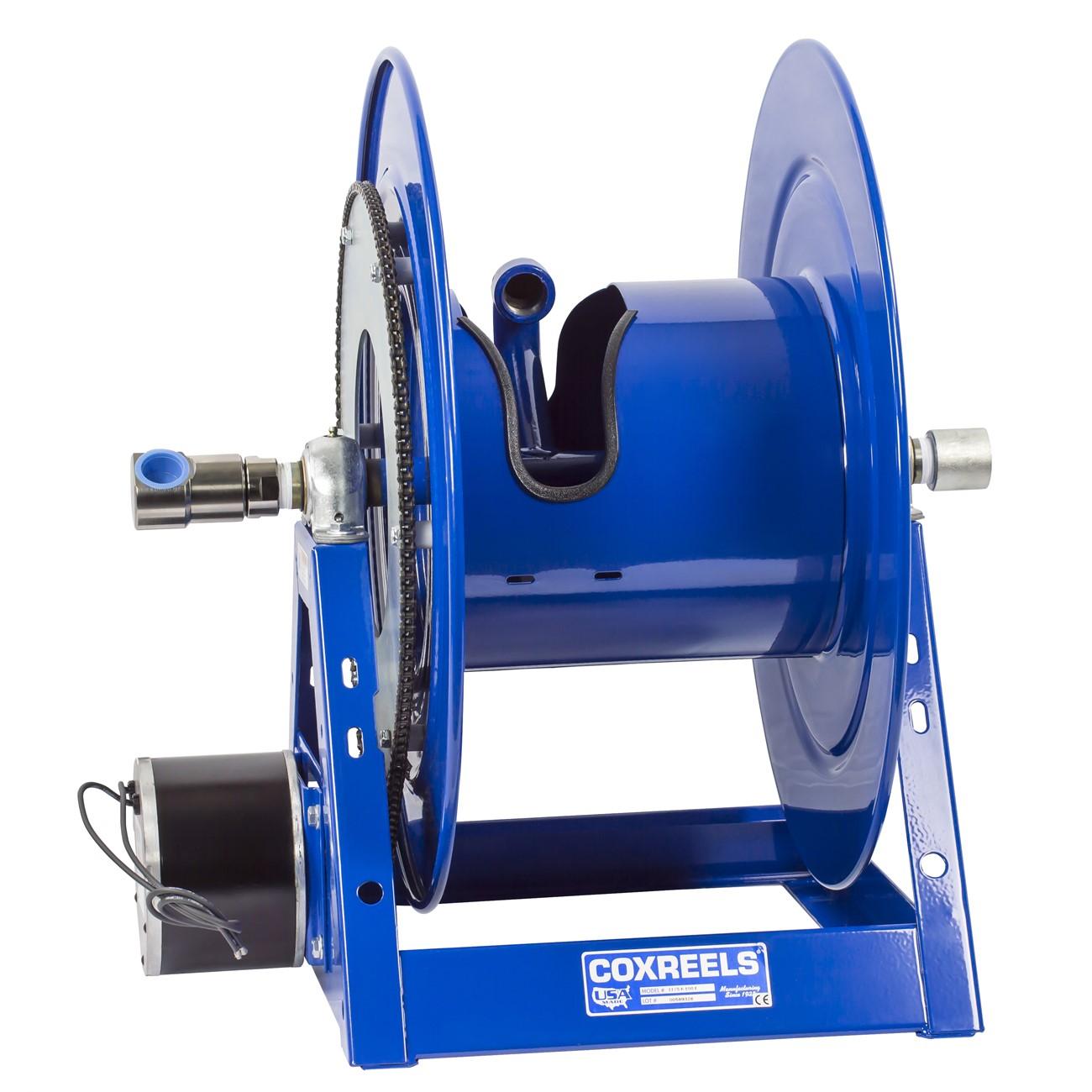

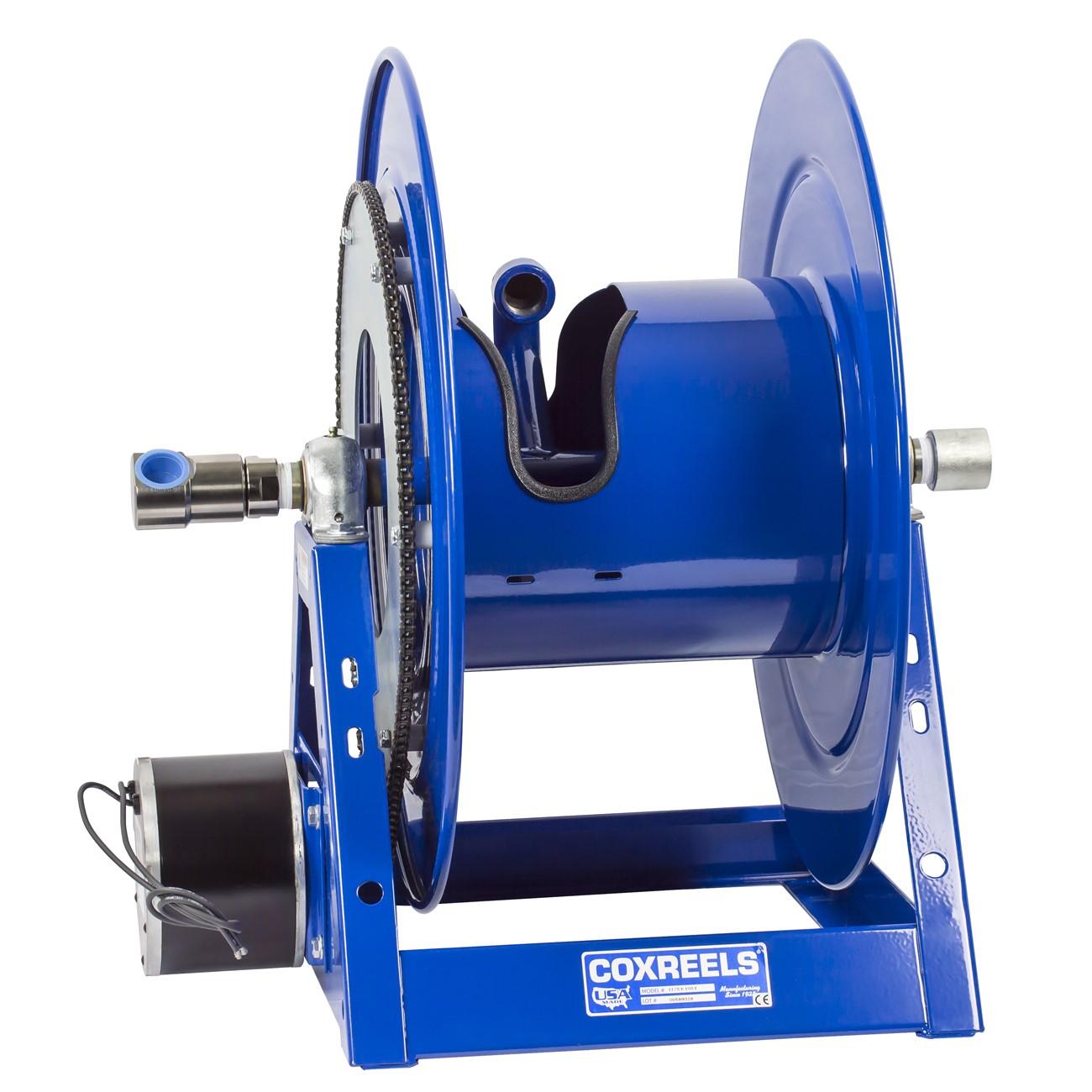

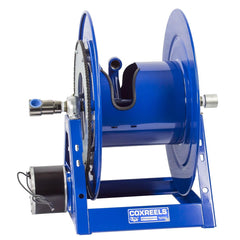

The COXREELS 1175-6-50-E is a heavy-duty motorized hose reel from the 1175 Series, designed for industrial and trade applications that demand larger hose capacities and larger hose diameters. Built on a one-piece all-welded 12-gauge steel A-frame base, this reel accepts 1-inch ID hose with a 1-7/16-inch OD and holds up to 50 feet. A 12V DC, 1/3 HP reversible motor powers hose retrieval. A nickel-plated steel 90-degree full-flow NPT swivel and low-profile outlet riser with open drum slot deliver smooth, even hose wraps without crimping. At 80 pounds, it is a substantial, fixed-mount unit built for long service cycles.

The 1175-6-50-E is suited for commercial and industrial settings where motorized hose retrieval is required, including fleet maintenance shops, manufacturing facilities, agricultural operations, and heavy-equipment service bays. The larger chassis design accommodates greater hose diameters and longer runs than lighter-duty series. The A-frame base includes a dedicated mounting pattern for secure, straightforward installation on walls, floors, or service vehicles. Licensed technicians and shop personnel performing fluid transfer, lubrication, or washdown work are the typical end users.

Key Features

• 12V DC, 1/3 HP reversible motor for powered hose retrieval
• 1-inch ID inlet with 1-7/16-inch OD capacity, 50-foot hose length
• One-piece CNC robotically welded 12-gauge steel A-frame base — not bolted — for superior structural rigidity
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without removing the reel from its mount
• CNC-spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot eliminate hose crimping and promote flat, even wraps
• CPC powder coat finish resists chips, rust, and corrosion for extended service life
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation

Compatibility

Designed as an OEM-style motorized hose reel for use with 1-inch ID hose in industrial and commercial fluid-transfer applications. Consult COXREELS 1175 Series documentation to confirm specific hose type and fitting compatibility before installation.

Installation Notes

Installation is typically performed by qualified shop technicians or industrial mechanics. De-energize the 12V DC power circuit and depressurize all associated fluid lines before mounting or servicing the reel. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern and fasteners rated for the combined weight of the reel and hose fluid load. Verify NPT swivel connections are properly sealed and that the motor wiring meets applicable electrical codes before returning the system to service.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1-7/16 inches
• Hose Capacity: 50 feet
• Motor: 12V DC, 1/3 HP reversible
• Frame: 12-gauge steel, one-piece CNC welded A-frame
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat
• Bearings: Permanently lubricated pillow block, self-aligning
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 80 pounds
• UPC: 674255826465

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-50-E
