Coxreels 1175-6-50-C Hose Reel 1 in Id 50 Ft Hand Crank

Product Description

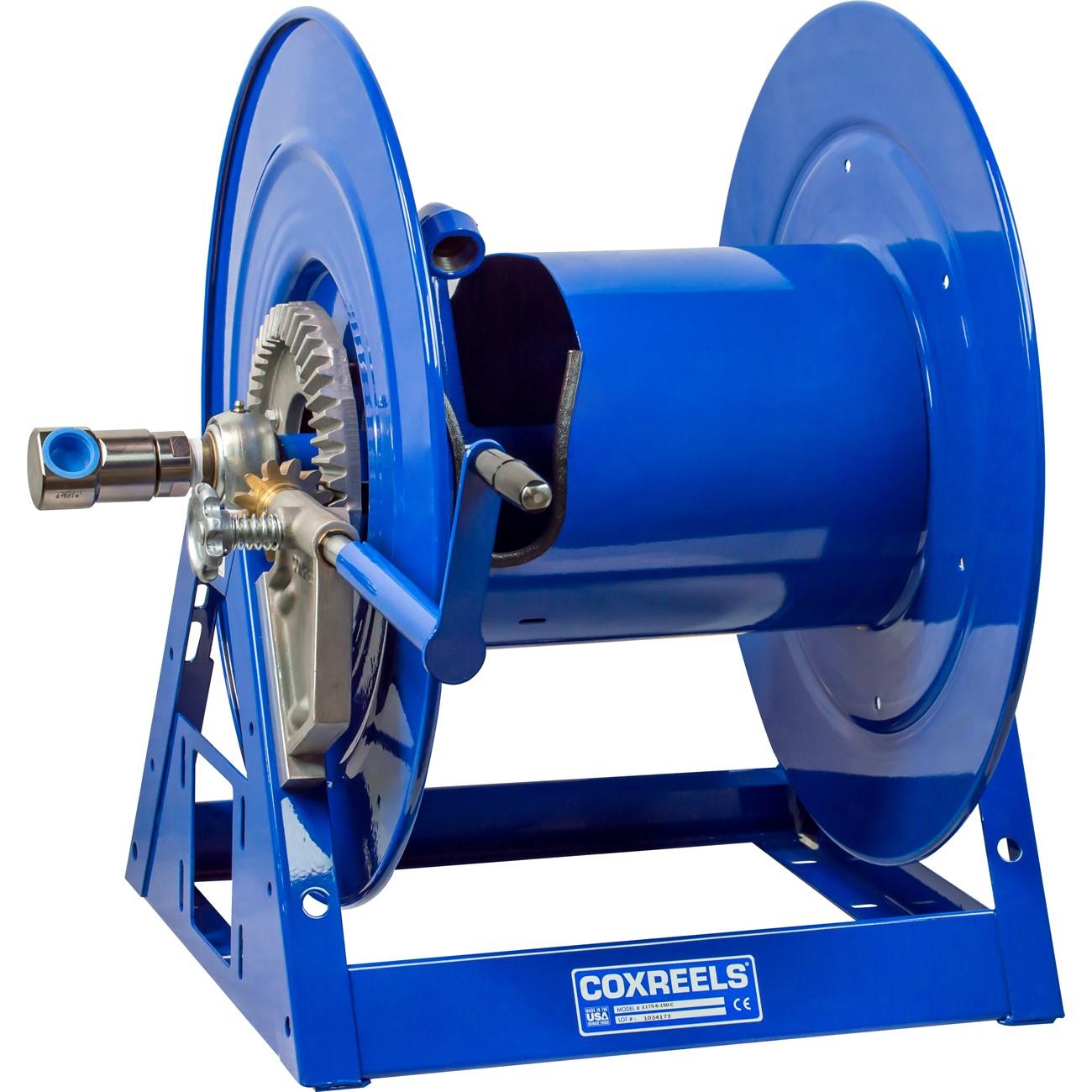

The COXREELS 1175-6-50-C is a heavy-duty hand crank hose reel from the 1175 Series, built for industrial and commercial fluid-transfer applications. It accommodates 1 inch ID hose up to 50 feet in length and features a low-profile outlet riser with an open drum slot design that promotes flat, non-crimping hose wraps for consistent flow and extended hose life. The one-piece all-welded 12-gauge steel A-frame base provides rigid structural support without bolted joints. A nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount. Installed by industrial maintenance technicians, plumbing contractors, and facility service crews.

The 1175-6-50-C is suited for stationary or semi-permanent installations where larger hose diameters and longer hose runs are required. The reel is designed for workshop, fleet maintenance, agricultural, and light industrial service environments. The front bevel-geared hand crank provides controlled mechanical retraction, and an adjustable tension brake prevents free-wheeling during payout. The larger 1175 Series chassis accommodates greater hose capacity compared to smaller-frame series, making it appropriate for high-volume fluid delivery or wash-down stations where a compact reel would be undersized.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for rigid, bolt-free reel structure
• Low-profile outlet riser and open drum slot design for smooth, non-crimping hose wraps
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal service without dismounting the reel
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth drum rotation
• CPC powder coat finish resists chips and rust for long service life
• Adjustable tension brake and front bevel-geared crank for controlled retraction

Compatibility

Designed as an OEM-style replacement or direct-fit hose reel for industrial and commercial fluid-transfer systems requiring 1 inch ID hose up to 50 feet in length within the 1175 Series platform.

Installation Notes

Installation is typically performed by qualified maintenance technicians or plumbing contractors. Shut off all fluid supply and depressurize the line before mounting or connecting the reel. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern and appropriately rated fasteners. Verify NPT thread connections are sealed with compatible thread sealant before returning the system to service.

Technical Specifications

• Hose ID: 1 inch
• Hose Length Capacity: 50 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 70 pounds
• UPC: 674255856554

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-50-C
