Coxreels 1175-6-50-AB Hose Reel 1 Inch Id 50 Foot

Product Description

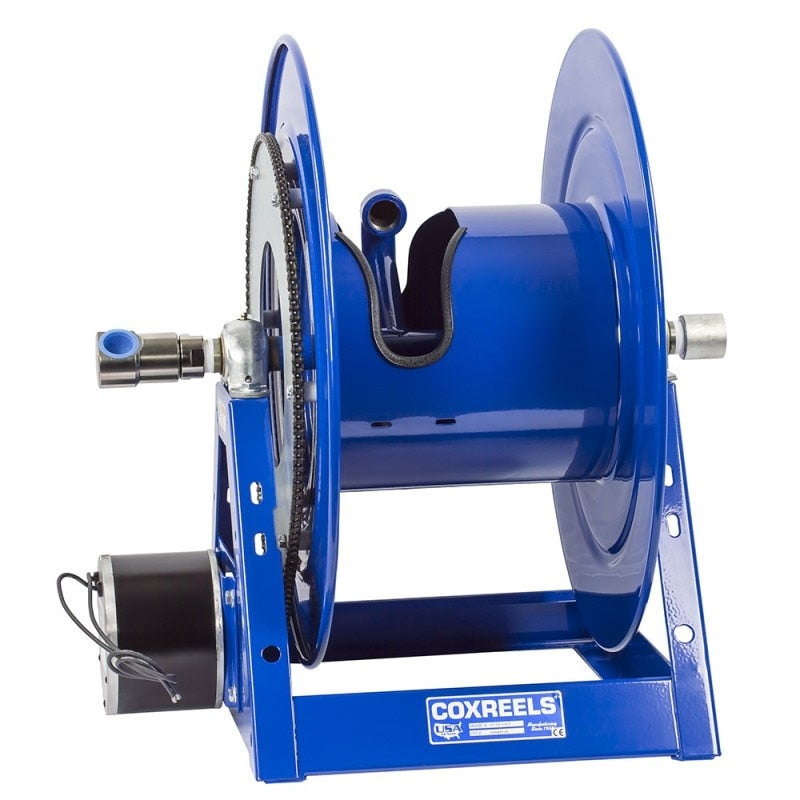

The COXREELS 1175-6-50-AB is a heavy-duty hand crank and motorized hose reel from the 1175 Series, built for industrial and commercial fluid or air delivery applications. It features a one-piece all-welded 12-gauge steel A-frame base, CNC robotically spun and ribbed discs, and a low-profile outlet riser with open drum slot design that promotes smooth, even hose wraps and prevents crimping. Designed for 1-inch ID hose with a 1-7/16-inch OD, the reel accommodates up to 50 feet of hose. At 75 pounds, this is a robust unit suited for demanding service environments where reliability and hose protection are priorities.

The 1175-6-50-AB fits professional service settings including industrial plants, fleet maintenance shops, construction sites, and commercial service bays where larger hose capacities and larger hose diameters are required. The 1175 Series is specifically designed to handle greater hose bulk compared to lighter-duty reel series, making it the appropriate choice where 1-inch ID hose runs are standard. Licensed trades and industrial maintenance technicians are the primary installers of this reel.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Low-profile outlet riser and open drum slot design eliminates hose crimping and promotes flat, even hose wraps
• Nickel-plated steel 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings provide smooth rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition for extended service in harsh environments

Compatibility

Designed as a direct-install industrial hose reel for 1-inch ID hose applications up to 50 feet in length. Consult COXREELS documentation to confirm compatibility with specific hose types and pressure ratings for your application.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed plumbing and mechanical contractors. Power down or depressurize all connected lines before mounting or servicing the reel. The mounting pattern is located in the steel base; ensure the mounting surface is structurally adequate to support the reel weight plus hose and fluid load. Follow all applicable facility safety and pressure-system codes during installation and commissioning.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1-7/16 inches
• Hose Capacity: 50 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Swivel: Nickel-plated steel 90-degree full-flow NPT
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 75 pounds
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-50-AB
