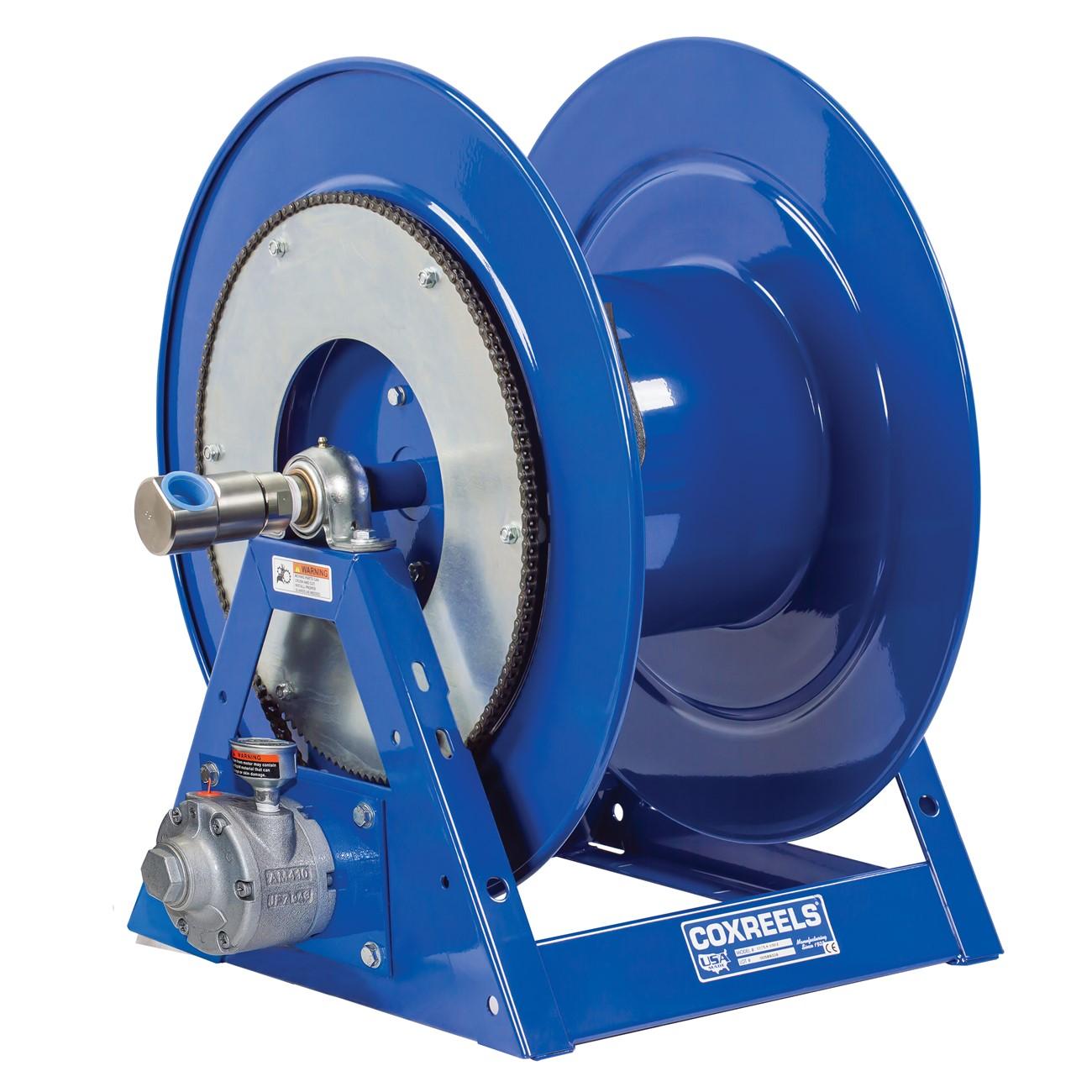

Coxreels 1175-6-50-A Hose Reel 1 in Id 50 Ft Hand Crank Motorized

Product Description

The COXREELS 1175-6-50-A is a heavy-duty hose reel from the 1175 Series, designed for hand crank and motorized operation in demanding industrial and trade applications. Built on a larger chassis than the 1125 Series, this reel accommodates larger hose diameters and capacities, with a 1 inch ID and 50 foot hose length rating. The one-piece all-welded A-frame base is fabricated from 12-gauge steel and provides a rigid, vibration-resistant foundation. A low-profile outlet riser and open drum slot design ensures smooth, even hose layering without kinking. Installation and maintenance are handled by licensed contractors and experienced service technicians working in industrial, commercial, and fleet environments.

This reel is suited for industrial fluid transfer, air supply, and similar hose management applications in commercial and industrial settings. The larger 1175 Series chassis is selected when higher hose capacity or greater hose diameter is required compared to standard compact reels. The mounting pattern is integrated into the steel base, making installation and removal straightforward in fixed or vehicle-mounted configurations. Both hand crank and motorized drive configurations are supported by this platform.

Key Features

• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural integrity without bolted joints
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Low-profile outlet riser and open drum slot design produces a non-crimping, flat, smooth hose wrap around the drum
• Permanently lubricated, self-aligning pillow block bearings provide smooth rotation and long service life
• CPC powder coat finish resists chipping and rust for extended service in harsh environments

Compatibility

Designed as an OEM-style replacement or direct-install hose reel for industrial and commercial hose management systems requiring a 1 inch ID inlet and 50 foot hose capacity in the COXREELS 1175 Series configuration.

Installation Notes

Installation should be performed by qualified technicians familiar with industrial hose reel mounting requirements. Depressurize and bleed the supply line fully before connecting or disconnecting any hose or swivel fitting. Verify that the mounting surface and fastener pattern can support the fully loaded reel weight before final installation. Follow all applicable facility safety procedures and local codes when connecting to air, fluid, or chemical supply lines.

Technical Specifications

• Hose ID: 1 inch
• Hose Capacity: 50 feet
• Frame Material: 12-gauge welded steel
• Swivel: Nickel-plated steel 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 75 pounds
• Drive Type: Hand crank and motorized
• UPC: 674255826434

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-50-A
