Coxreels 1175-6-200-SP Stainless Steel Hose Reel 200 Ft

Product Description

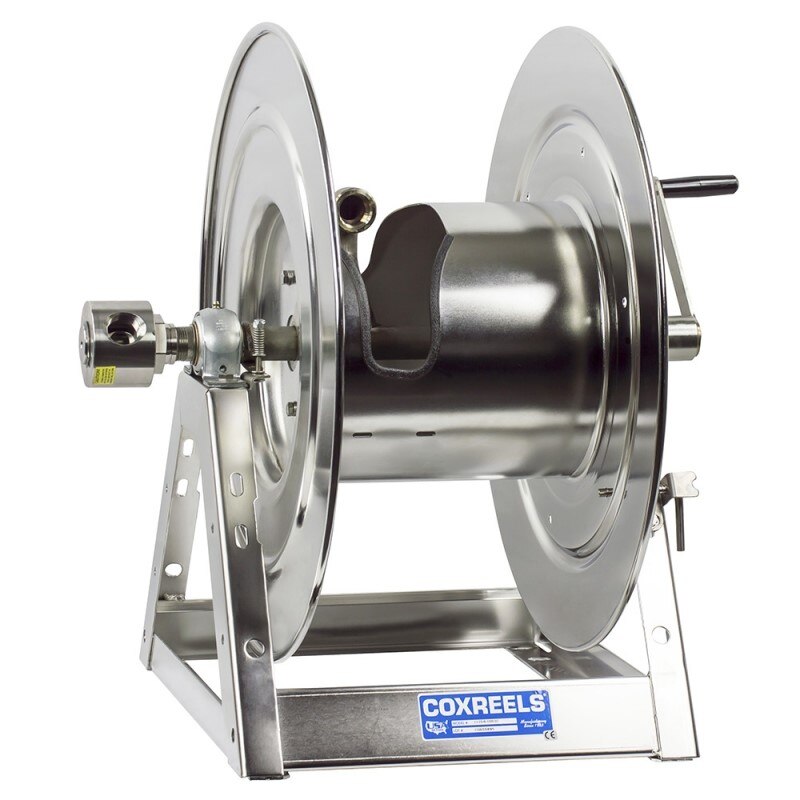

The COXREELS 1175-6-200-SP is a stainless steel hand crank hose reel from the 1175-SS Series, built for demanding environments where corrosion, contamination, and rust are ongoing concerns. The reel features an electro-polished stainless steel construction with an all-stainless fluid path, a 1 inch ID inlet, and a 1 7/16 inch OD, accommodating 200 feet of hose. The A-frame base is CNC robotically welded from 1/4 inch stainless steel plate as a single piece, providing structural rigidity without relying on bolted joints. Licensed trades and facilities maintenance professionals install this reel in fixed or wall-mount configurations where fluid cleanliness and long service life are required.

This hose reel is suited for food and chemical processing facilities, marinas, and industrial environments where corrosion resistance is critical. The non-crimping outlet riser and open drum slot design promote flat, even hose wrap, reducing hose wear over repeated use cycles. Typical applications include wash-down stations, chemical dispensing lines, and fluid transfer setups that demand clean, non-reactive contact surfaces throughout the fluid path.

Key Features

• Electro-polished stainless steel construction with fully stainless fluid path for non-corrosive performance
• Machined stainless steel 90-degree full-flow NPT swivel inlet for leak-resistant external connection
• CNC robotically spun and ribbed stainless steel discs with rolled edges for strength, durability, and hose protection
• Exclusive low-profile stainless steel outlet riser with open drum slot provides non-crimping, flat hose wrap
• One-piece CNC robotically welded 1/4 inch stainless steel A-frame base with integrated mounting pattern
• Permanently lubricated, self-aligning pillow block bearings and adjustable tension brake for smooth, controlled operation

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1175-SS Series for applications requiring 1 inch ID hose connections and 200 foot hose capacity.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with fluid handling systems and applicable plumbing or industrial piping codes. Shut off and depressurize the supply line completely before making any inlet or outlet connections. Use thread sealant rated for the fluid media on all NPT connections. The integrated A-frame base mounting pattern allows direct bolt-down to a fixed surface; verify the mounting substrate can support the loaded weight of the reel and hose.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1 7/16 inches
• Hose Capacity: 200 feet
• Frame Material: 1/4 inch stainless steel, CNC robotically welded one-piece construction
• Finish: Electro-polished stainless steel with standard unpolished as-manufactured option
• Swivel Inlet: 90-degree full-flow NPT stainless steel
• Weight: 83 pounds
• UPC: 674255852020

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-200-SP
