Coxreels 1175-6-200 Hose Reel 1 Inch Id 200 Ft

Product Description

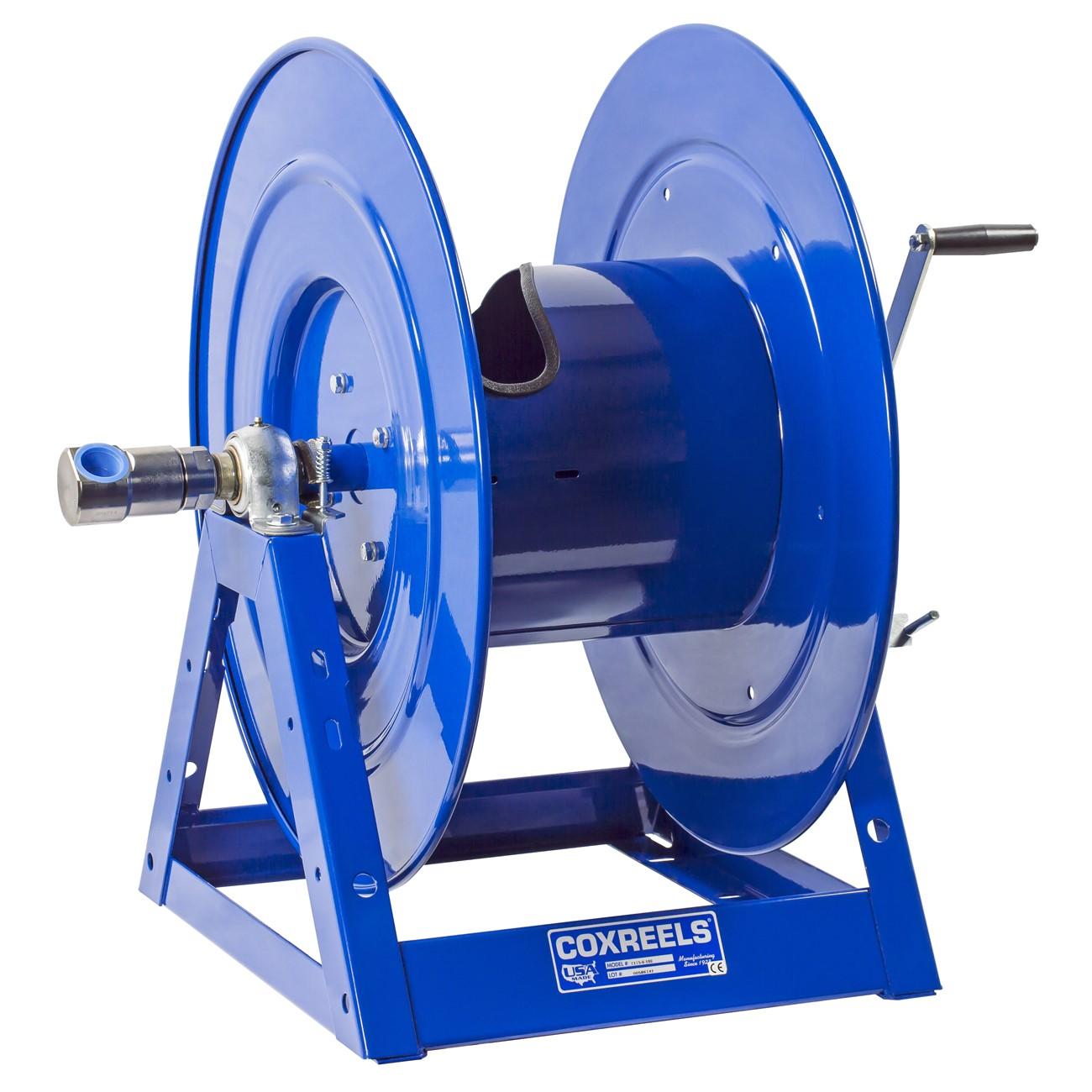

The COXREELS 1175-6-200 is a heavy-duty hose reel from the 1175 Series, built for larger hose capacities and larger hose diameters than standard compact reels. It accepts hose with a 1 inch inner diameter and holds up to 200 feet of hose. The reel ships ready for hand crank operation and can also be configured for motorized use. Welded steel construction and a low-profile outlet riser with an open drum slot deliver smooth, even hose wraps without kinking or binding. This reel is suited for industrial, commercial, and trade applications where reliable, high-volume hose management is required.

The 1175-6-200 is used in facilities maintenance, industrial plant operations, commercial vehicle wash, fire protection service, and similar applications where large-diameter, long-run hose must be deployed and retracted repeatedly. The reel mounts to a fixed surface using the integrated base mounting pattern, making it a common choice for service bays, wash bays, and equipment rooms. Its larger chassis accommodates hose runs and hose diameters that exceed the capacity of the smaller 1125 Series reels.

Key Features

• Low-profile outlet riser and open drum slot design provides a non-crimping, flat, smooth hose wrap around the drum
• One-piece, all CNC robotically welded 12-gauge steel A-frame base — no bolted joints — for superior structural rigidity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chips and rust; adjustable tension brake prevents free-wheeling during deployment

Compatibility

Designed for use with 1 inch inner diameter hose up to 200 feet in length. The 1175 Series uses the same general design architecture as the 1125 Series but with a larger chassis for greater hose capacity and diameter.

Installation Notes

Installation is typically performed by a qualified maintenance technician or industrial contractor. Shut off and depressurize the connected fluid system completely before mounting or servicing the reel. Secure the reel to a structurally adequate surface using the integrated base mounting pattern and hardware appropriate for the substrate. Verify all swivel and inlet connections are leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 200 feet
• Length: 36 inches
• Width: 28 inches
• Height: 30 inches
• Weight: 83 pounds
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Nickel-plated steel
• UPC: 674255826649

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-200
