Coxreels 1175-6-200-EF Motorized Hose Reel 1 in 200 Ft

Product Description

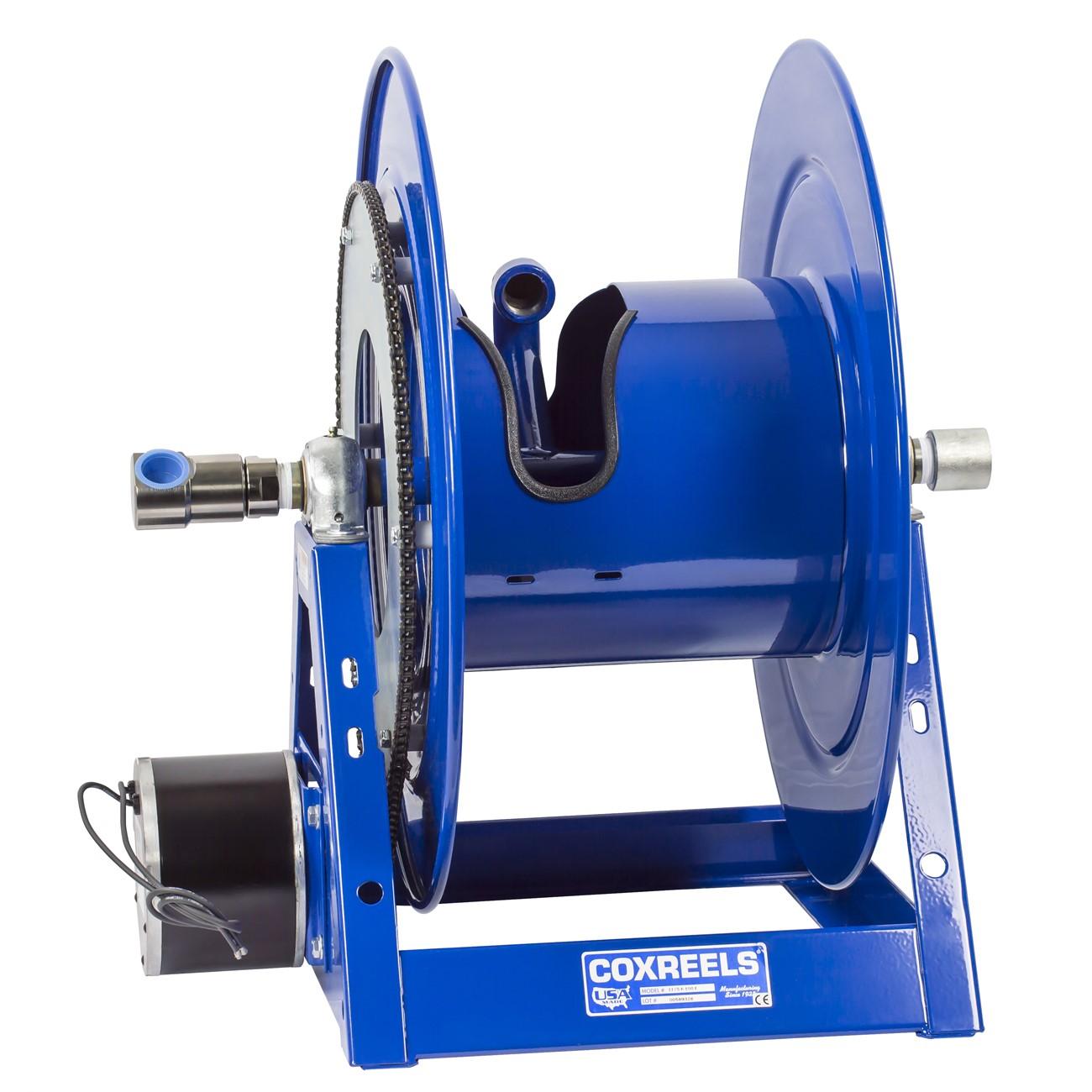

The COXREELS 1175-6-200-EF is a heavy-duty motorized hose reel from the 1175 Series, designed for high-capacity hose management in demanding trade and industrial applications. It accommodates hose with a 1 inch inner diameter and a 1 7/16 inch outer diameter, with a 200 ft capacity. The reel is driven by a 24-volt DC, 1/3 HP reversible motor and built on a one-piece all-welded 12-gauge steel A-frame base. Permanently lubricated, self-aligning pillow block bearings ensure smooth rotation. The unit weighs 96 pounds and measures 36 inches long by 30 inches wide by 30 inches tall.

The 1175-6-200-EF suits commercial and industrial service environments where larger hose diameters and longer hose runs are required. Typical applications include lubrication service, hydraulic fluid transfer, water delivery, and similar fluid-handling operations. The larger chassis accommodates heavier hose assemblies compared to lighter-duty series reels. A low-profile outlet riser and open drum slot design promote flat, even hose wraps, reducing kinking and extending hose service life. This reel is commonly installed by industrial maintenance technicians, fleet service professionals, and commercial contractors in fixed mounting configurations.

Key Features

• 24-volt DC, 1/3 HP reversible motor for powered hose retrieval
• One-piece CNC robotically welded 12-gauge steel A-frame base for rigid, bolt-free structure
• Nickel-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design for non-crimping, flat hose wrap
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed as an OEM-style replacement or direct application fit for systems requiring a motorized hose reel with 1 inch ID hose capacity and 200 ft hose length in the COXREELS 1175 Series configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-handling systems and low-voltage electrical wiring. Shut off the fluid supply and disconnect or de-energize the 24-volt DC power source before mounting or servicing the reel. Secure the unit to a structurally rated surface using the mounting pattern in the steel base. Consult applicable local codes and the manufacturer documentation for proper electrical connection of the DC motor drive circuit.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 200 ft
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP
• Frame Material: 12-gauge steel
• Swivel Finish: Nickel-plated steel
• Length: 36 inches
• Width: 30 inches
• Height: 30 inches
• Weight: 96 pounds
• UPC: 674255852617

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-200-EF
