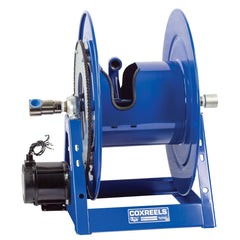

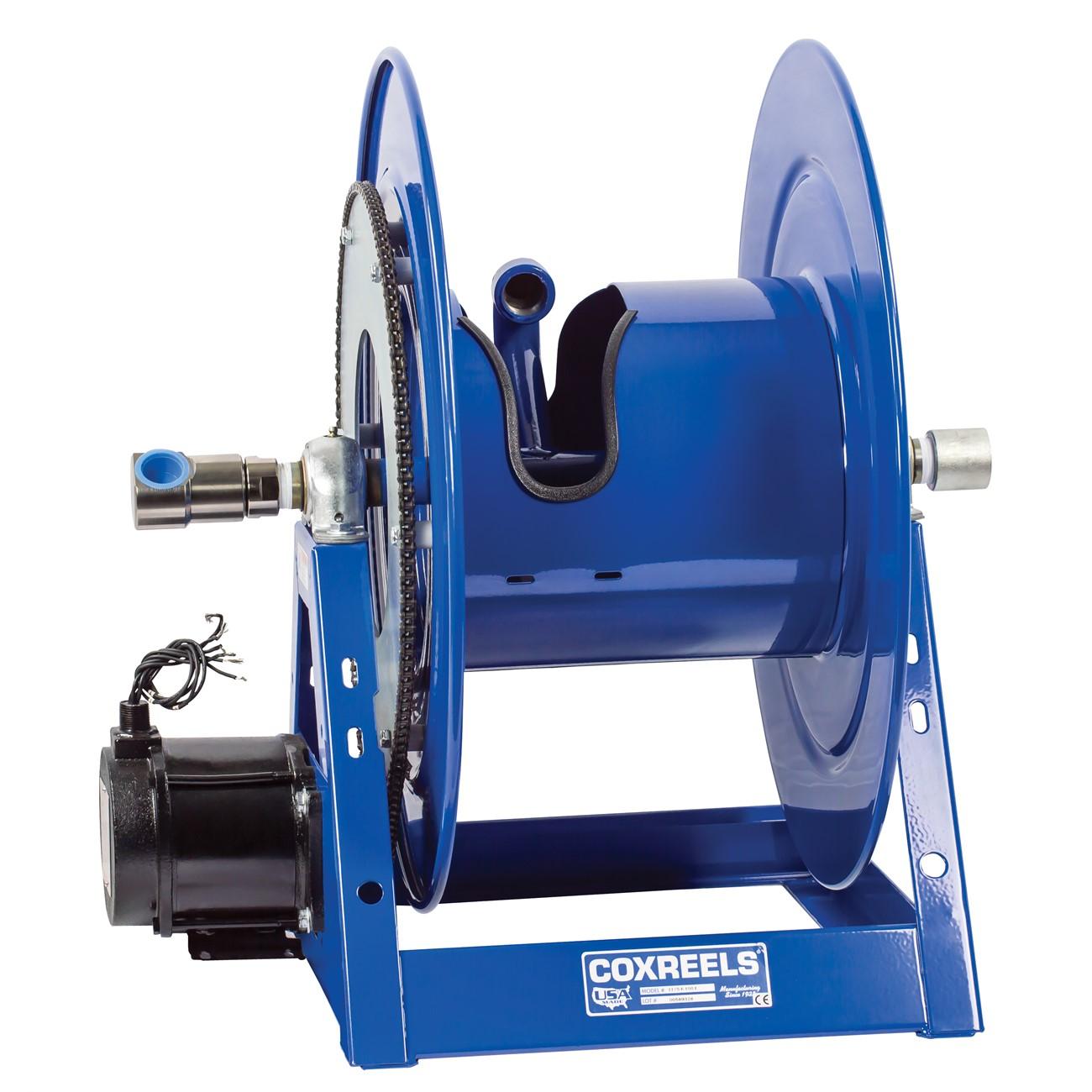

Coxreels 1175-6-200-ED Hose Reel 1 in Id 200 Ft

Product Description

The COXREELS 1175-6-200-ED is a heavy-duty, motor-driven hose reel from the 1175 Series, engineered for demanding industrial and trade applications. It accommodates 1-inch ID hose with a 1-7/16-inch OD at a capacity of 200 feet. Power comes from a 12-volt DC, 1/2 HP explosion-proof reversible motor, making this reel suitable for environments where ignition hazards are a concern. The one-piece all-welded steel frame, CNC-spun ribbed discs, and permanently lubricated pillow block bearings deliver the structural integrity and smooth operation that professional installers and service technicians expect from a high-cycle reel.

The 1175-6-200-ED is built for larger hose capacities and diameters compared to the 1125 Series, making it a fit for commercial, industrial, and heavy trade service environments. Typical applications include fluid transfer, air supply, and similar service operations where extended hose runs and motorized retraction improve workflow. The low-profile outlet riser and open drum slot design ensure flat, even hose wraps that reduce kinking and extend hose service life. Installation suits fixed mounting on service trucks, shop floors, and equipment bays.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered hose retraction in hazardous-rated environments
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Nickel-plated steel 90-degree full-flow NPT swivel allows simple seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and extended service life
• CPC powder coat finish resists chips, rust, and corrosion for long-term durability in field conditions

Compatibility

Designed for use with 1-inch ID, 1-7/16-inch OD hose up to 200 feet in length. The 1175 Series chassis accommodates larger hose diameters and capacities than the 1125 Series platform.

Installation Notes

Installation should be performed by a qualified technician familiar with motorized reel mounting and low-voltage DC electrical connections. Disconnect and lock out all power sources before servicing the motor or electrical components. Secure the reel to a structurally rated mounting surface using the pattern located in the steel base. Verify that the 12V DC power supply meets the motor requirements and that wiring complies with applicable electrical codes before energizing the unit.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1-7/16 inches
• Hose Capacity: 200 feet
• Motor: 12V DC, 1/2 HP explosion-proof reversible
• Frame: 12-gauge welded steel A-frame
• Length: 36 inches
• Width: 30 inches
• Height: 30 inches
• Weight: 109 pounds
• Finish: CPC powder coat
• UPC: 674255826670

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-200-ED
