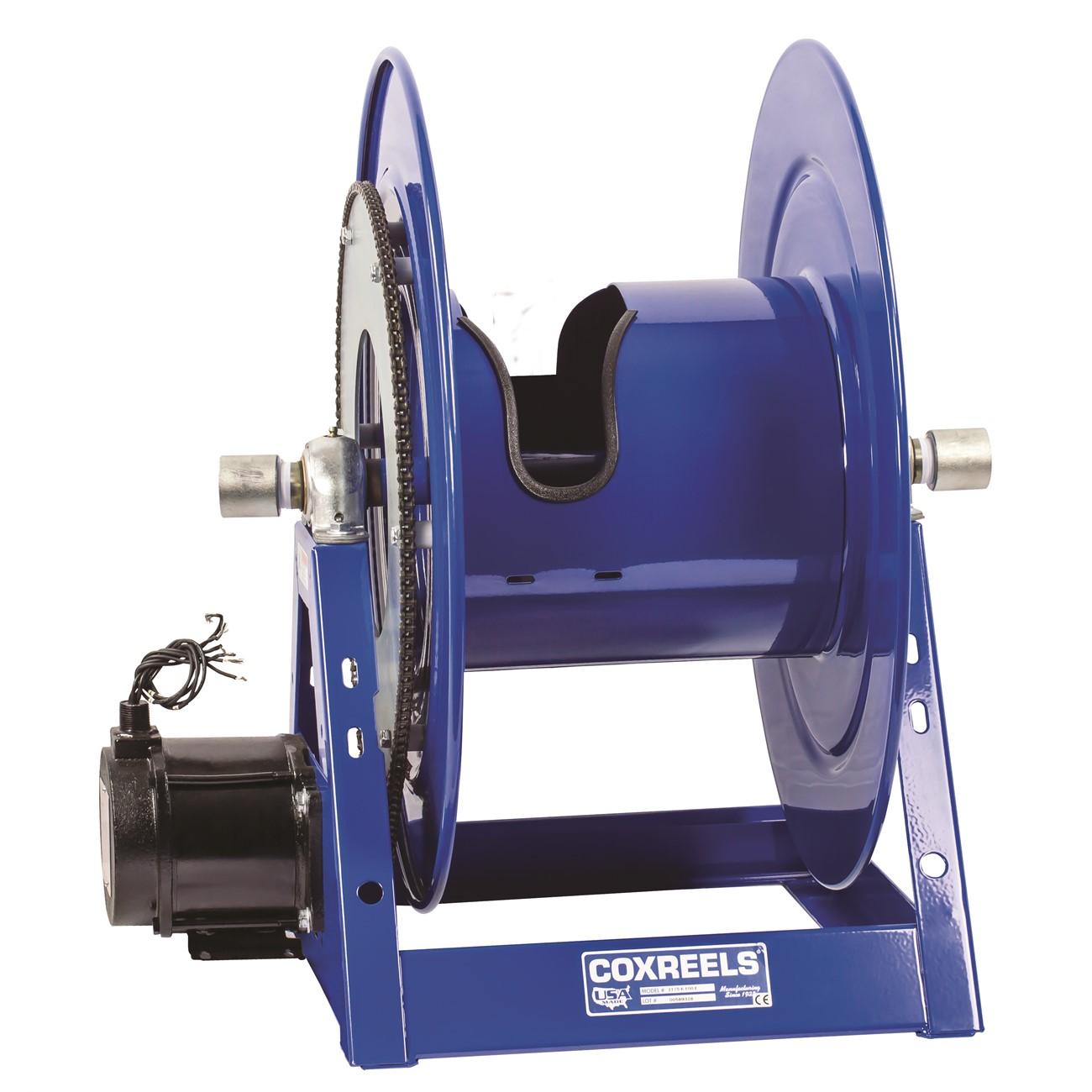

Coxreels 1175-6-200-EA-BYXX Motorized Storage Hose Reel

Product Description

The COXREELS 1175-6-200-EA-BYXX is a heavy-duty motorized storage hose reel constructed from steel and designed for industrial and commercial applications where long lengths of hose, cord, cable, rope, wire, or chain must be stored and retrieved efficiently. The reel is driven by a 115-volt AC, 1/2 HP reversible AC rectified motor, allowing powered take-up without manual cranking. CNC robotically spun and ribbed steel discs with rolled edges provide structural strength and protect stored material from abrasion and edge damage. An all-welded steel A-frame base eliminates bolted joints for superior rigidity. This reel is installed and serviced by industrial maintenance technicians, fleet service professionals, and facilities personnel managing high-demand storage operations.

The 1175-6-200-EA-BYXX suits stationary or mobile installations in workshops, service bays, warehouses, and field service rigs. It handles a wide range of stored materials including hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, and chain. The unit measures 36 inches long by 30 inches wide by 30 inches tall and weighs 109 pounds, making it suitable for permanent floor or platform mounting where a robust, motorized solution is required.

Key Features

• 115-volt AC, 1/2 HP reversible AC rectified motor provides powered reel-in and reel-out without manual cranking
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and material protection
• All-welded one-piece 1/4-inch steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish resists chips, rust, and corrosion for long service life in demanding environments
• No swivel, no riser — purpose-built for storage of long-length materials rather than active fluid transfer

Compatibility

Designed as an OEM-style storage reel for stationary or mobile industrial setups requiring motorized handling of long-length hose, cord, cable, wire, rope, tape, or chain on either fixed or portable platforms.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician familiar with 115-volt AC motor wiring and applicable NEC requirements. Disconnect and lock out power at the source before any wiring or mounting work. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern and appropriately rated fasteners. Verify motor rotation direction and brake tension adjustment before placing the reel into service.

Technical Specifications

• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP
• Motor Type: Reversible AC rectified
• Frame Material: Steel, 1/4-inch all-welded A-frame
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Bearings: Permanently lubricated, self-aligning pillow block
• Length: 36 inches
• Width: 30 inches
• Height: 30 inches
• Weight: 109 pounds
• UPC: 674255855212

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-200-EA-BYXX
