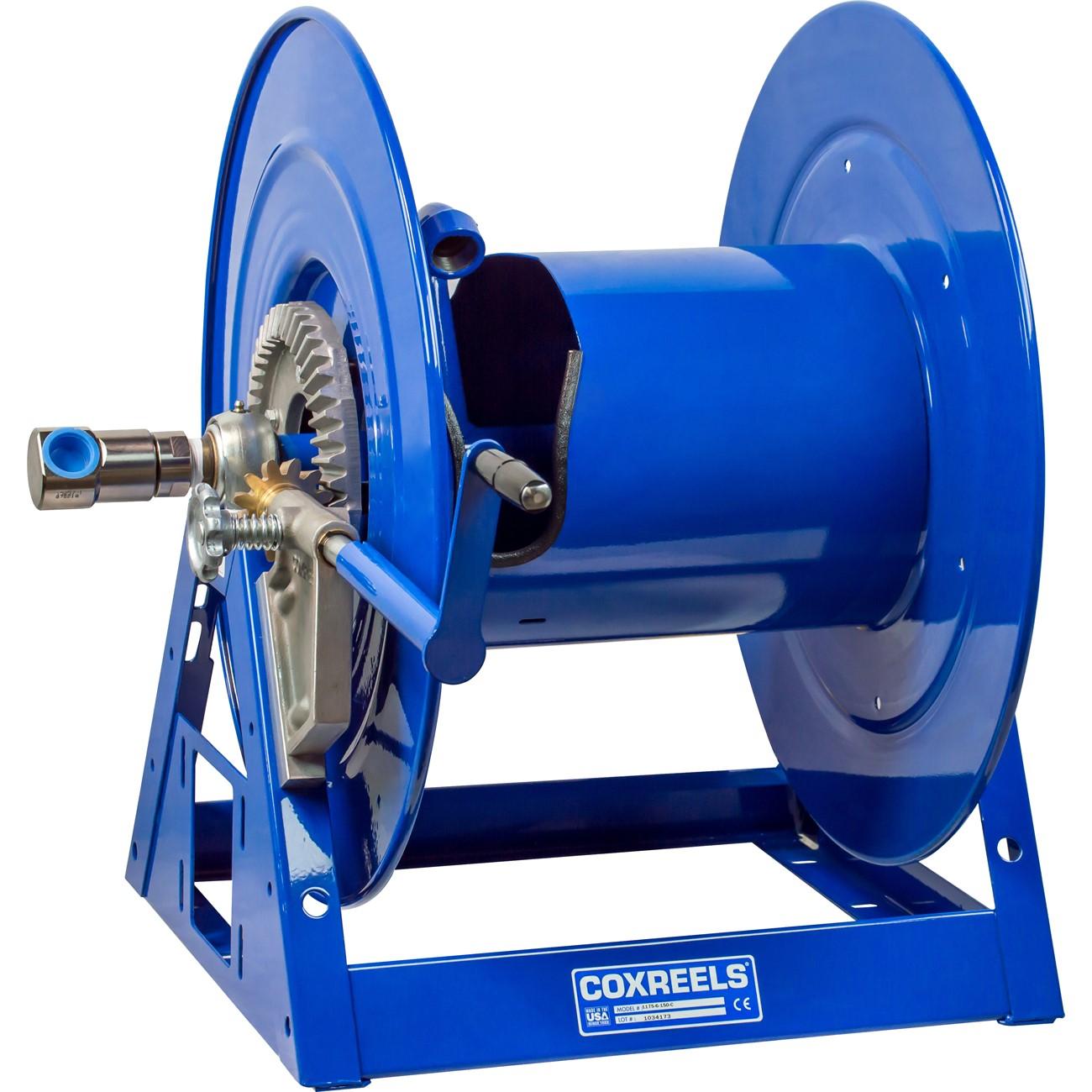

Coxreels 1175-6-200-C Hose Reel 1 Inch Id 200 Ft

Product Description

The COXREELS 1175-6-200-C is a heavy-duty industrial hose reel from the 1175 Series, designed for hand crank and motorized operation. Built for larger hose capacities and diameters, it accommodates a 1 inch ID hose up to 200 feet in length. The reel features a one-piece all-welded steel A-frame base, CNC robotically spun and ribbed discs, and a low-profile outlet riser with open drum slot design for smooth, even hose layering. At 78 pounds, this unit is a substantial piece of shop or field equipment suited for installation by industrial maintenance techs, plumbers, or service professionals working with high-volume fluid or air delivery systems.

The 1175-6-200-C fits applications requiring reliable hose management across industrial, commercial, and heavy-duty service environments. Its larger chassis accommodates higher-capacity hose runs compared to lighter-duty reel series. Typical installations include service bays, maintenance facilities, fleet shops, and industrial process environments where consistent, controlled hose payout and retraction are required. The front bevel-geared crank and motorized-ready design make it adaptable to both manual and powered retraction setups.

Key Features

• 1 inch ID inlet with 1 7/16 inch OD hose capacity, rated for 200 feet of hose
• Nickel-plated steel 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• One-piece CNC robotically welded 12-gauge steel A-frame base provides superior structural integrity over bolted designs
• Low-profile outlet riser and open drum slot design ensures non-crimping, flat hose wrap for extended hose service life
• Permanently lubricated, self-aligning pillow block bearings deliver smooth drum rotation and reduce maintenance intervals
• CPC powder coat finish resists chipping and rust; adjustable tension brake prevents free-wheeling during payout

Compatibility

Designed as an OEM-style replacement or direct installation unit within the COXREELS 1175 Series hose reel platform, compatible with standard 1 inch ID hose assemblies using NPT threaded connections.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or licensed tradesperson familiar with fluid or compressed-air distribution systems. Shut off all pressure to the supply line and depressurize the hose before mounting or connecting the reel. Secure the A-frame base to a rigid mounting surface using the integrated mounting pattern in the steel base. Verify all NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 200 feet
• Frame Material: 12-gauge welded steel
• Swivel Material: Nickel-plated steel
• Finish: CPC powder coat
• Length: 36 inches
• Width: 28 inches
• Height: 30 inches
• Weight: 78 pounds
• UPC: 674255854086

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-200-C
