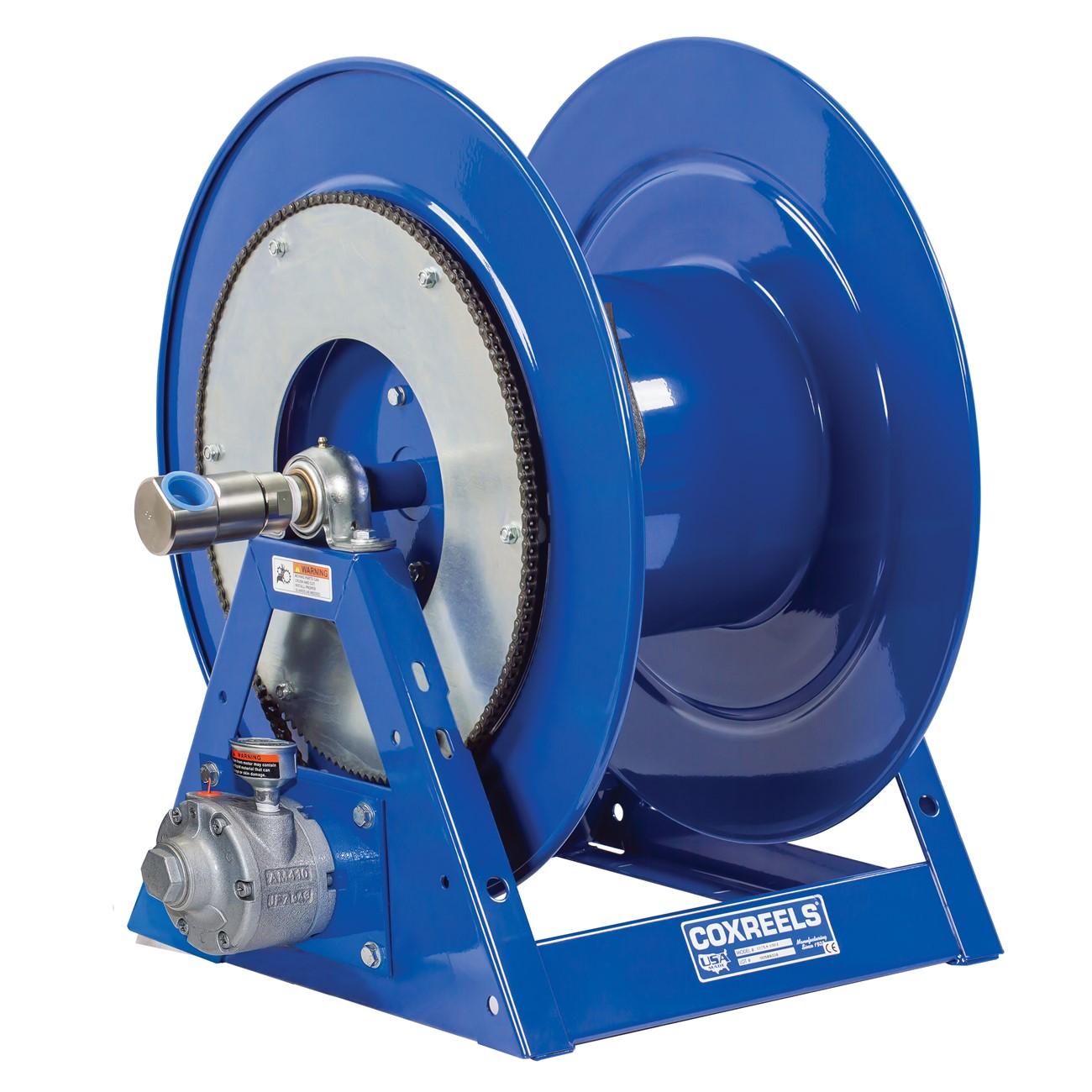

Coxreels 1175-6-200-AB Hose Reel 1 Inch Id 200 Ft

Product Description

The COXREELS 1175-6-200-AB is a heavy-duty hand crank and motorized hose reel from the 1175 Series, built for large-capacity hose management in demanding industrial and commercial applications. It accepts 1-inch ID hose with a 1-7/16-inch OD and holds up to 200 feet of hose. The unit weighs 91 pounds and measures 36 inches long by 30 inches wide by 30 inches tall. The all-welded steel A-frame chassis, CNC-spun ribbed discs, and permanently lubricated pillow block bearings make this reel a durable, low-maintenance choice for fluid transfer or air distribution systems. Installation is handled by licensed or qualified trades in industrial, commercial, and fleet service environments.

The 1175-6-200-AB suits applications where large hose diameters and high-volume fluid or air delivery are required. Typical install scenarios include manufacturing facilities, vehicle service bays, construction sites, and similar heavy-use environments. The open-drum slot and low-profile outlet riser design ensures smooth, even hose layering without kinking or binding, making this reel a practical fit for continuous-duty service points that demand reliable hose management over extended operating cycles.

Key Features

• One-piece all-welded 12-gauge steel A-frame base provides rigid reel structure without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Exclusive low-profile outlet riser and open-drum slot design enables non-crimping, flat smooth hose wrap
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping, rust, and corrosion for extended field use
• Aluminum body air motor with 6-vane design included for motorized operation

Compatibility

The 1175-6-200-AB is designed for use with 1-inch ID hose up to 200 feet in length and is part of the COXREELS 1175 Series, which shares mounting and chassis design principles with the 1125 Series for large-hose-capacity applications.

Installation Notes

This reel is typically installed by qualified mechanics, pipefitters, or industrial maintenance technicians. Depressurize and drain all fluid lines before mounting or servicing the unit. Follow applicable OSHA and facility safety protocols when positioning the reel and securing supply connections. Verify that the mounting surface and fastener pattern can support the loaded weight of the reel and hose before final installation.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1-7/16 inches
• Hose Capacity: 200 ft
• Length: 36 inches
• Width: 30 inches
• Height: 30 inches
• Weight: 91 pounds
• Frame Material: 12-gauge steel, all-welded
• Finish: CPC powder coat
• Swivel: Nickel-plated steel 90-degree full-flow NPT
• Motor: Aluminum body air motor, 6-vane
• UPC: 674255850170

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-200-AB
