Coxreels 1175-6-200-A Hose Reel 1 in Id 200 Ft

Product Description

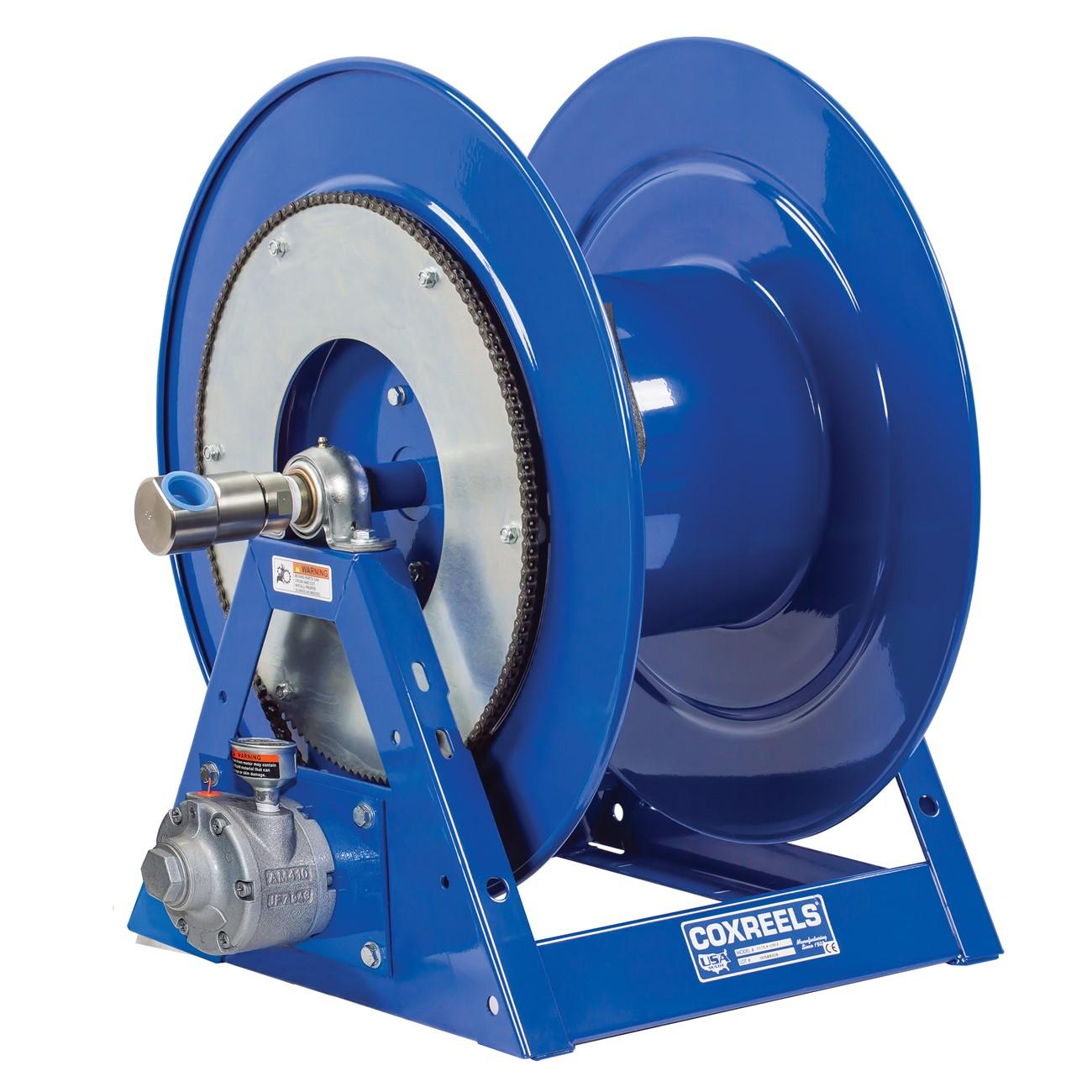

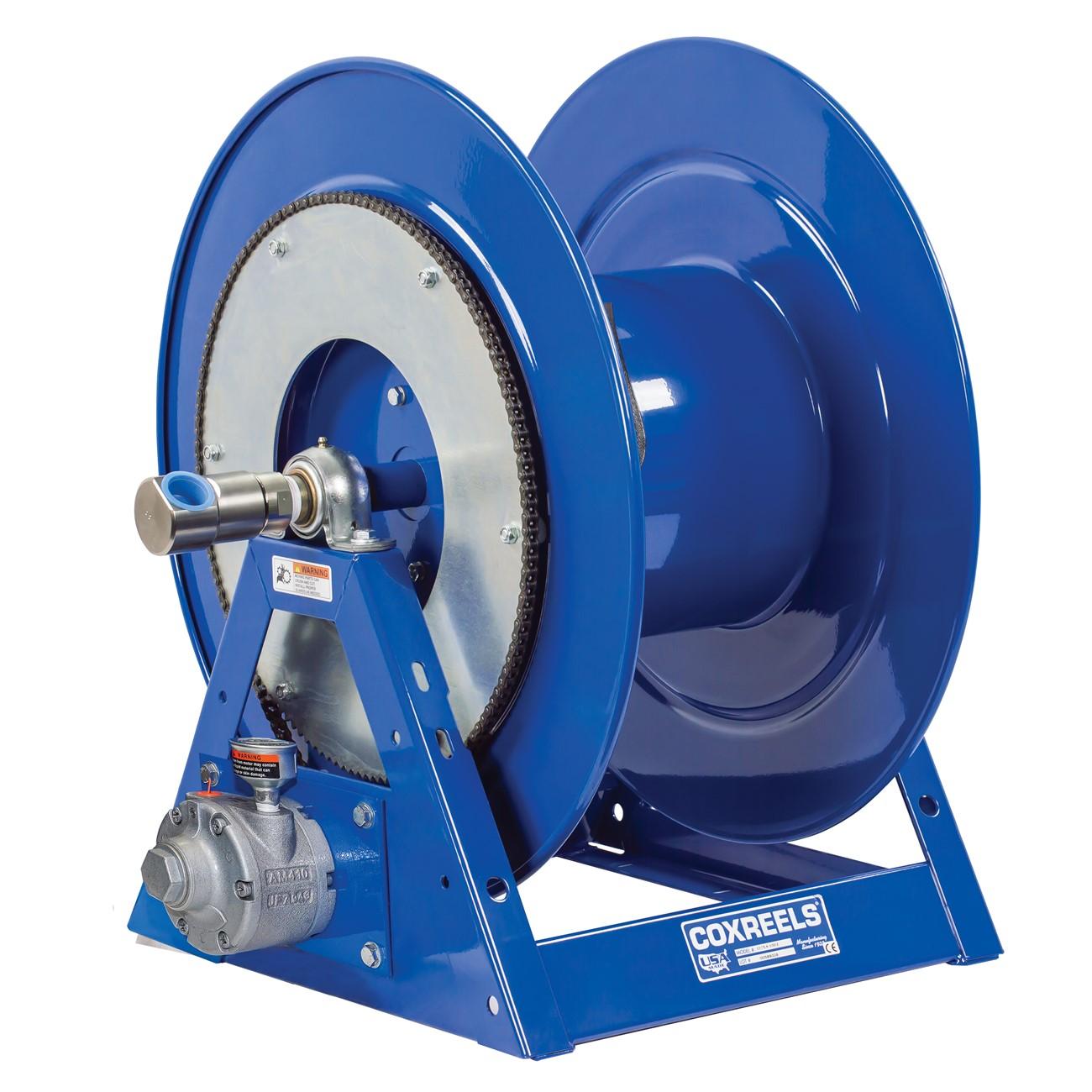

The COXREELS 1175-6-200-A is a heavy-duty hand crank and motorized hose reel from the 1175 Series, designed for industrial fluid and air distribution applications requiring larger hose capacities and larger hose diameters. Built on a one-piece all-welded steel A-frame base, the reel accepts 1 inch ID hose in lengths up to 200 feet. The low-profile outlet riser and open drum slot design guide hose onto the drum in flat, even wraps without crimping. At 91 pounds, this is a substantial unit intended for permanent or semi-permanent mounting in demanding service environments. Licensed tradespeople and industrial maintenance crews are the typical installers.

The 1175-6-200-A suits commercial and industrial settings where high-volume hose management is needed — compressed air lines, fluid transfer, wash-down stations, and similar applications. The larger chassis of the 1175 Series accommodates greater hose diameters and longer runs compared to lighter-duty reel designs, making it a practical choice for shops, fleet service bays, manufacturing floors, and heavy equipment maintenance facilities. The integrated aluminum-body air motor provides motorized retrieval as an option alongside manual hand-crank operation.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for rigid, bolt-free reel structure with integrated mounting pattern
• Low-profile outlet riser and open drum slot design delivers non-crimping, flat hose wraps for consistent hose feed
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth drum rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition for extended service in harsh environments

Compatibility

Designed for use with 1 inch ID hose up to 200 feet in length; intended for industrial and commercial hose reel applications where the 1175 Series chassis configuration is specified.

Installation Notes

Installation is typically performed by a qualified industrial mechanic or licensed plumber depending on the connected fluid system. Shut off all supply pressure and depressurize the hose completely before mounting or connecting the reel. Secure the A-frame base to a structurally rated surface using the integrated mounting pattern, following applicable facility and code requirements. Do not exceed the rated hose diameter or length when loading hose onto the drum.

Technical Specifications

• Hose ID: 1 inch
• Hose Capacity: 200 feet
• Frame Construction: 12-gauge CNC welded steel A-frame
• Swivel: Nickel-plated steel 90-degree full-flow NPT
• Motor: Aluminum body 4-vane air motor
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 36 inches
• Width: 30 inches
• Height: 30 inches
• Weight: 91 pounds
• Sold As: Each
• UPC: 674255826656

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-200-A
