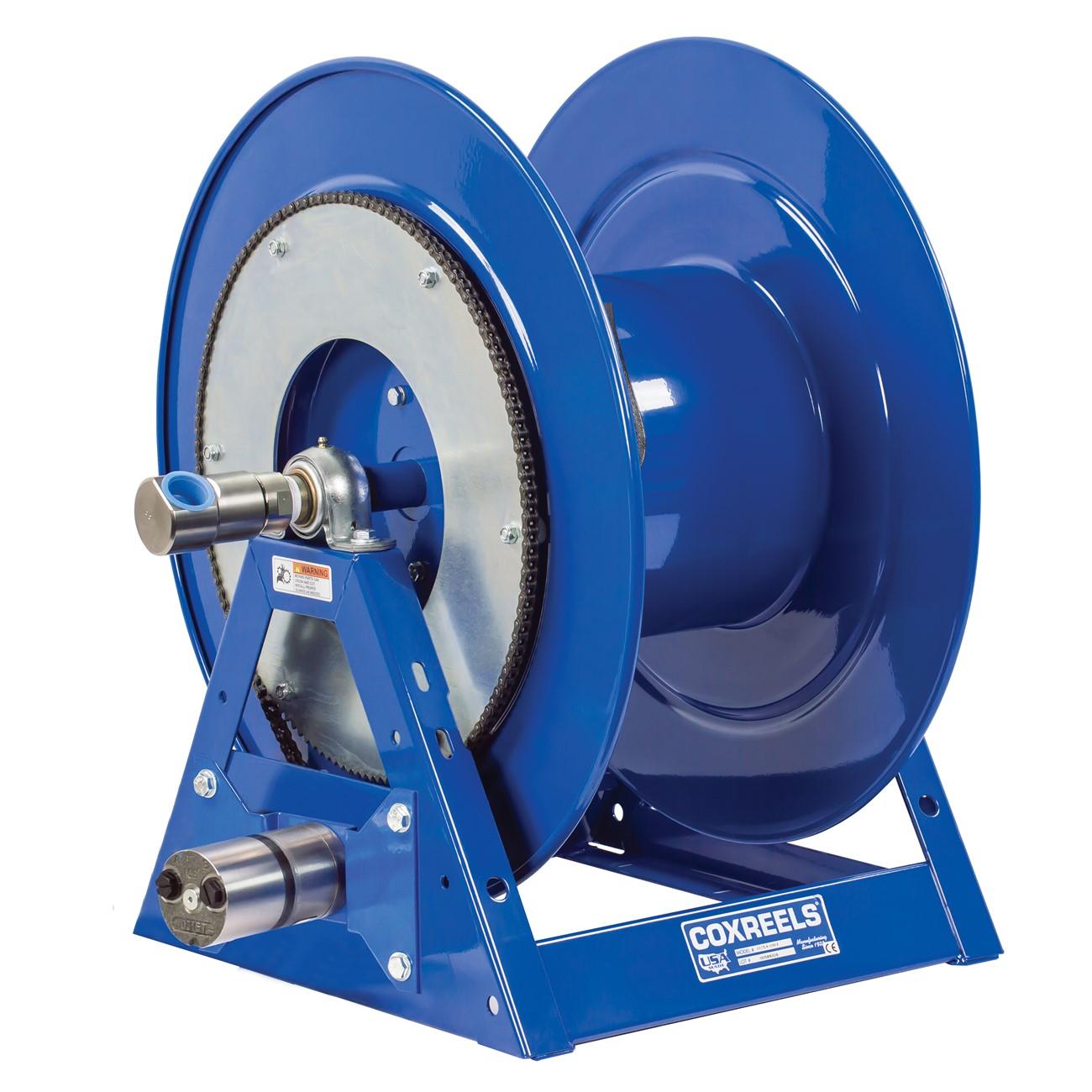

Coxreels 1175-6-150-H Hose Reel 1 in Id 150 Ft

Product Description

The COXREELS 1175-6-150-H is a heavy-duty hose reel from the 1175 Series, designed for large-capacity hose management in demanding industrial and trade applications. It accommodates a 1 inch inner diameter hose up to 150 feet in length and ships ready for hand crank or hydraulic motor operation. The reel is built on a one-piece all-welded 12-gauge steel A-frame base, giving it a rigid, bolt-free structure suited to fixed or semi-permanent mounting. Licensed contractors and facility maintenance technicians working with hydraulic, water, or fluid transfer lines will find the larger chassis geometry and reinforced disc design appropriate for high-cycle service environments.

The 1175-6-150-H fits industrial service bays, fleet maintenance facilities, construction sites, and plant floor fluid distribution stations where a 1 inch ID hose and 150 foot capacity are required. The hydraulic motor drive option makes it well suited for powered retrieval in applications where manual rewinding is impractical. The reel mounts directly through the integrated base mounting pattern, simplifying installation and removal without disassembling the reel assembly.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chips, rust, and corrosion for extended service in harsh environments

Compatibility

Designed as an OEM-style large-chassis hose reel for industrial fluid transfer applications requiring 1 inch ID hose connections at capacities up to 150 feet.

Installation Notes

Installation is typically performed by a licensed industrial mechanic, plumber, or fluid systems technician. Shut off all fluid supply and depressurize the hose line completely before connecting or disconnecting the swivel inlet. Secure the reel to a structurally rated surface using fasteners through the integrated base mounting pattern. If connecting to a hydraulic motor drive circuit, verify that the hydraulic supply pressure and flow rate are within the motor specifications before commissioning.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 150 feet
• Drive Type: Hand crank and hydraulic motor
• Frame Material: 12-gauge steel, one-piece welded
• Swivel Material: Nickel-plated steel
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 81 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-150-H
