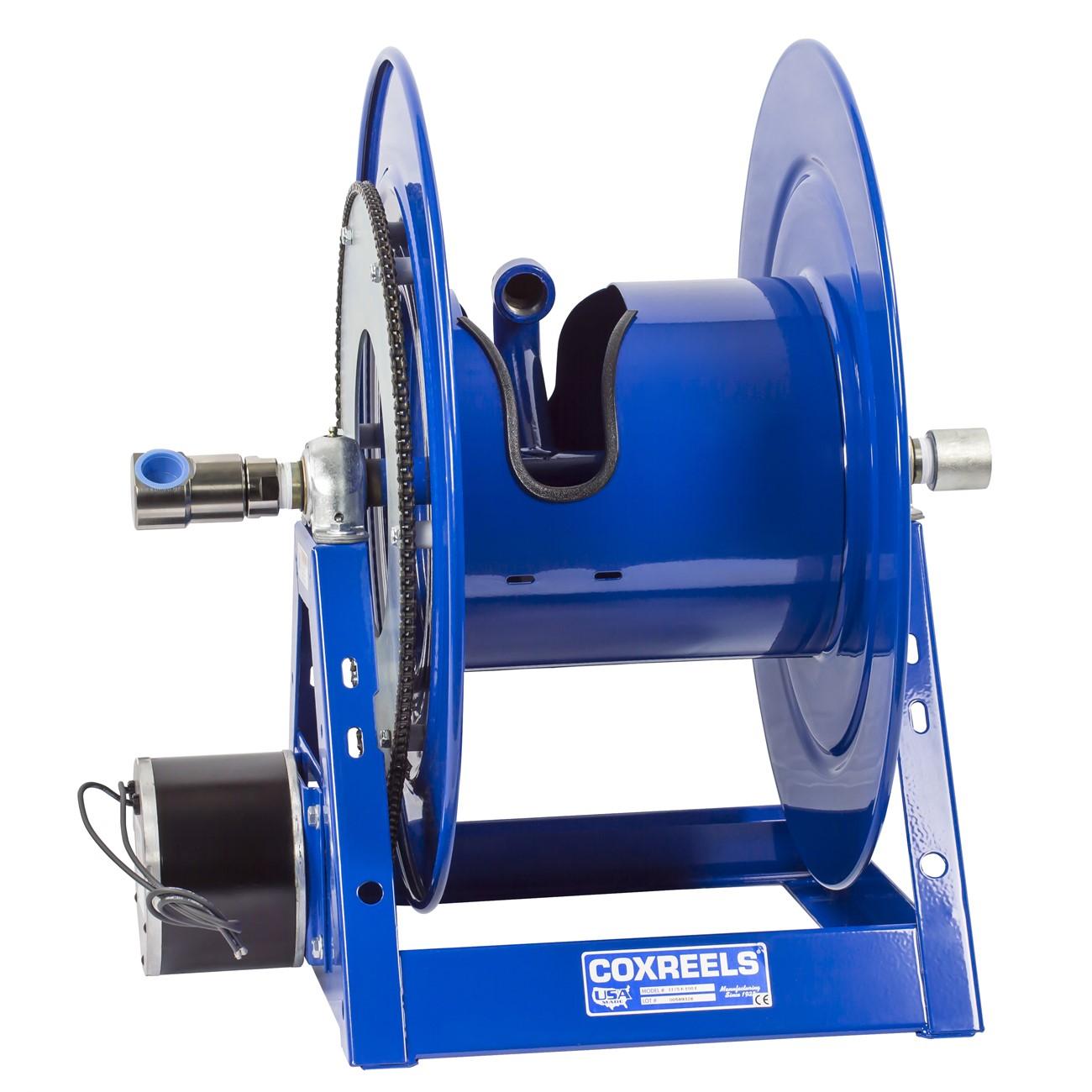

Coxreels 1175-6-150-E Motorized Hose Reel 150 Ft

Product Description

The COXREELS 1175-6-150-E is a heavy-duty motorized hose reel from the 1175 Series, designed for high-capacity industrial and commercial hose management applications. Built on a larger chassis than the 1125 Series, it accommodates hoses with a 1-inch inner diameter and 1-7/16-inch outer diameter, with a capacity of 150 feet of hose. Power comes from a 12-volt DC, 1/3 HP reversible electric motor. The one-piece all-welded steel frame and permanently lubricated pillow block bearings deliver smooth, consistent drum rotation under demanding service conditions. Licensed tradespeople and industrial maintenance crews are the primary installers of this unit.

The 1175-6-150-E is suited for industrial facilities, fleet maintenance shops, and commercial service environments where large hose diameters and long hose runs are standard. The low-profile outlet riser and open drum slot design promote flat, even hose wraps, reducing kinking and wear over repeated use cycles. Its larger chassis relative to mid-range reel series makes it a fit for applications requiring greater hose capacity without sacrificing structural integrity.

Key Features

• 12-volt DC, 1/3 HP reversible electric motor for powered hose retrieval
• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Nickel-plated steel 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers non-crimping, smooth hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping and rust for extended service in harsh environments

Compatibility

Designed for use with hoses measuring 1-inch inner diameter and 1-7/16-inch outer diameter, accommodating runs up to 150 feet. Consult COXREELS documentation to confirm fitment with specific hose types and fittings before installation.

Installation Notes

Installation should be performed by qualified industrial or mechanical tradespeople familiar with powered reel systems. Disconnect and lock out all electrical power to the 12-volt DC supply circuit before servicing the motor or swivel components. Secure the reel to a rigid mounting surface using the integrated base mounting pattern. Verify hose end connections and NPT swivel fittings for proper thread engagement and leak-free seating before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1-7/16 inches
• Hose Capacity: 150 feet
• Motor: 12-volt DC, 1/3 HP reversible electric
• Frame Material: 12-gauge welded steel
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 88 pounds
• UPC: 674255826632

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-150-E
