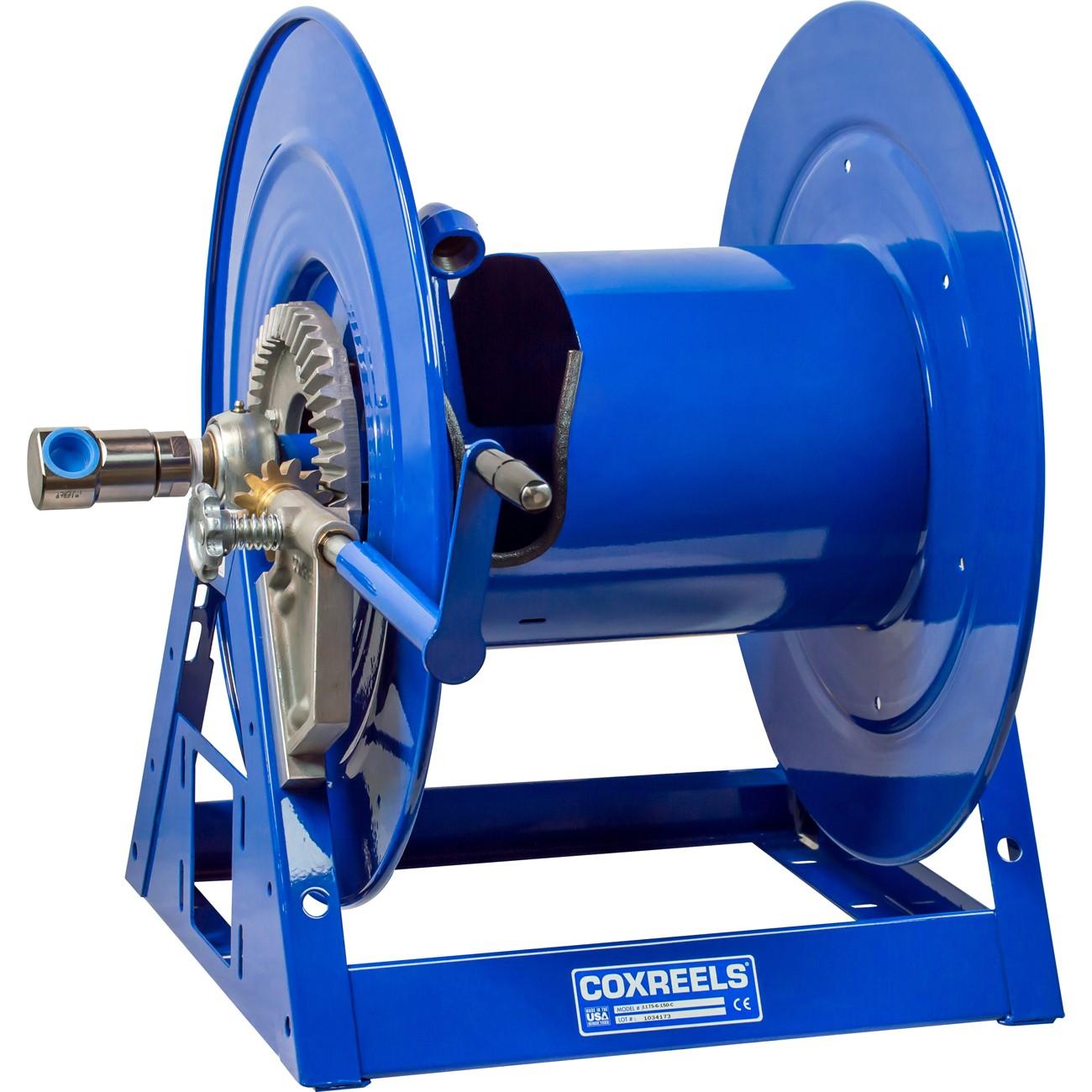

Coxreels 1175-6-150-C Hose Reel 1 Inch Id 150 Ft

Product Description

The COXREELS 1175-6-150-C is a heavy-duty hand crank hose reel from the 1175 Series, designed for industrial and commercial fluid-handling applications. Built on a one-piece all-welded 12-gauge steel A-frame base, this reel accommodates 1-inch ID hose up to 150 feet in length and 1-7/16-inch OD. A low-profile outlet riser with open drum slot design promotes smooth, even hose wraps without crimping. CNC robotically spun and ribbed discs, permanently lubricated pillow block bearings, and a front bevel-geared crank make this a reliable, serviceable unit for demanding job sites. Licensed HVAC, plumbing, and industrial service technicians are the typical installers.

The 1175-6-150-C suits larger-diameter hose runs where the compact 1125 Series is undersized. The larger chassis accepts greater hose capacities, making it appropriate for commercial facilities, fleet service bays, manufacturing plants, and industrial maintenance operations. Its nickel-plated steel 90-degree full-flow NPT swivel allows hose replacement without removing the reel from its mount, reducing downtime during service calls. The adjustable tension brake prevents free-wheeling during hose extension, supporting controlled deployment in both fixed-mount and portable cart configurations.

Key Features

• 1-inch ID hose inlet with 1-7/16-inch OD capacity and 150-foot maximum hose length
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Low-profile outlet riser and open drum slot design delivers non-crimping, flat hose wraps
• Heavy-duty CNC spun and ribbed discs with rolled edges for operator safety and hose protection
• Nickel-plated steel 90-degree full-flow NPT swivel — seal maintenance and hose swaps without dismounting the reel
• CPC powder coat finish resists chips and rust; adjustable tension brake and front bevel-geared crank for controlled mechanical retraction

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS 1175 Series hose reel platform, compatible with 1-inch ID hose assemblies up to 150 feet in standard NPT-connected fluid-handling systems.

Installation Notes

Installation is typically performed by qualified industrial maintenance technicians or licensed plumbing and mechanical contractors. Depressurize and drain all fluid from the connected hose and supply line before mounting or servicing the reel. Mounting hardware should be torqued to the fastener manufacturer's specification for the substrate material used. Verify that all NPT fittings are thread-sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1-7/16 inches
• Maximum Hose Length: 150 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 78 pounds
• UPC: 674255855458

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-150-C
