Coxreels 1175-6-135 Hose Reel 1 in Id 135 Ft

Product Description

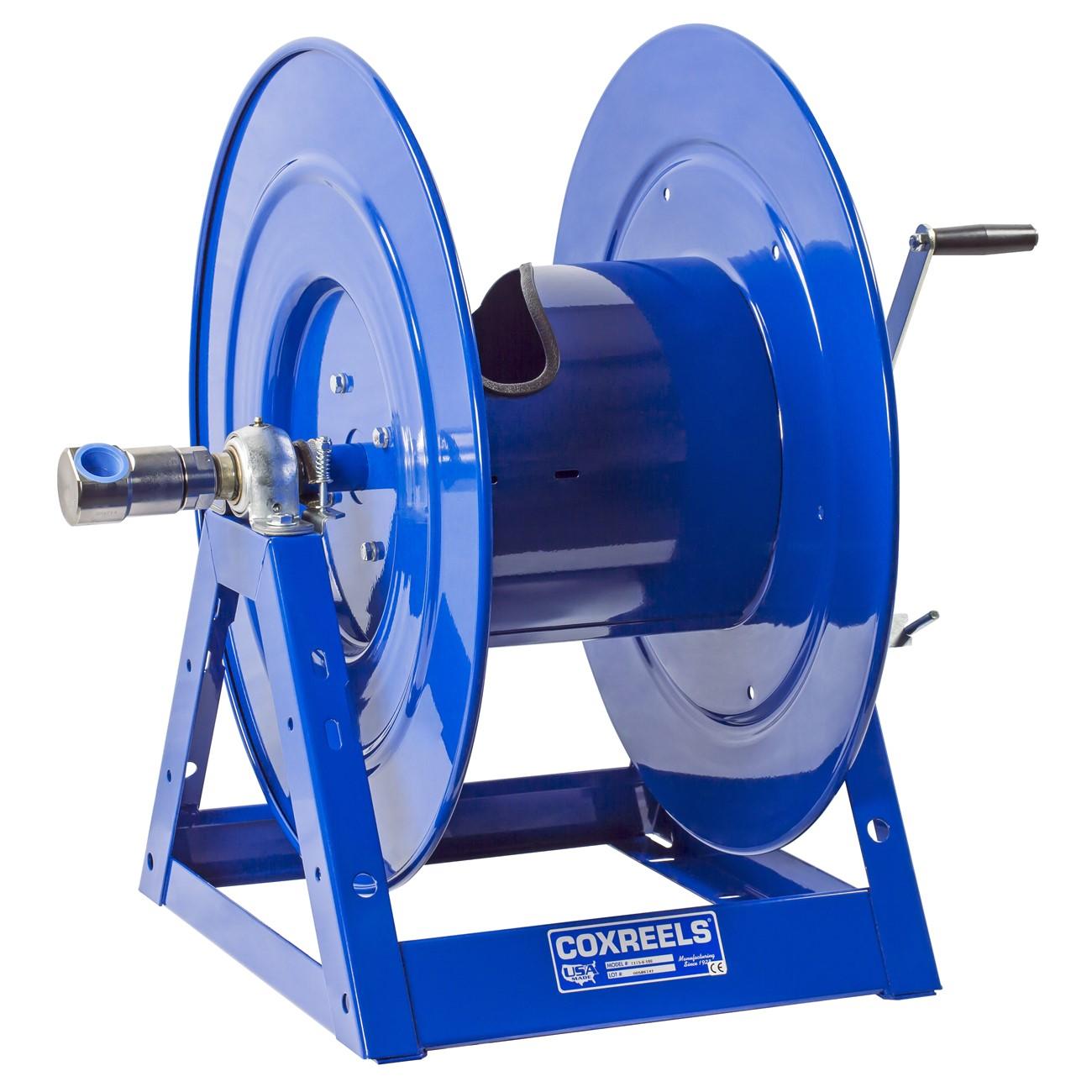

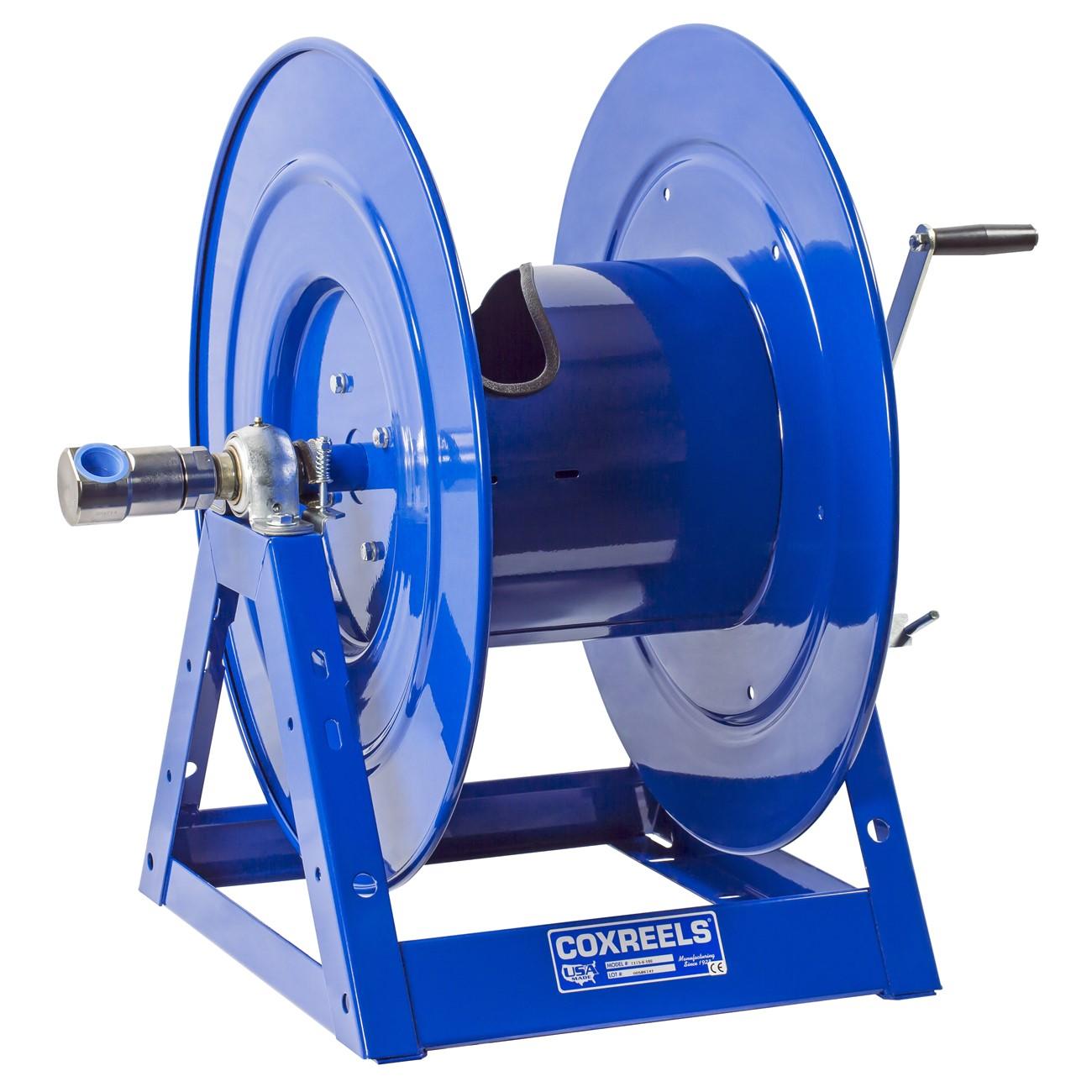

The COXREELS 1175-6-135 is a heavy-duty hand crank and motorized hose reel from the 1175 Series, built for larger hose capacities and larger hose diameters than standard-duty reels. It features a 1-inch inner diameter hose path, accepts hose up to 1 7/16-inch outer diameter, and handles 135 feet of hose. The reel is constructed on a one-piece, all-welded 12-gauge steel A-frame base and rides on permanently lubricated, self-aligning pillow block bearings for smooth, consistent rotation. A CPC powder coat finish provides long-term chip and rust resistance. Licensed contractors and industrial service technicians in fluid-transfer applications are the primary installers of this unit.

The 1175-6-135 is suited for demanding fluid-transfer applications in industrial, commercial, and heavy trade service environments. The open drum slot and low-profile outlet riser design allows hose to lay flat and even across the drum without crimping, making it appropriate for high-cycle service routines where hose integrity matters. An adjustable tension brake prevents free-wheeling during deployment, and the direct hand crank provides controlled mechanical retraction when power-driven operation is not in use.

Key Features

• 1-inch ID hose path with 1 7/16-inch OD clearance and 135-foot hose capacity
• One-piece CNC robotically welded 12-gauge steel A-frame base — no bolted joints
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated self-aligning pillow block bearings for smooth rotation and long service life
• Low-profile outlet riser and open drum slot design delivers non-crimping, flat hose wrap
• CPC powder coat finish resists chips and rust; adjustable tension brake prevents free-wheeling

Compatibility

Designed as an OEM-style hose reel for industrial and commercial fluid-transfer systems requiring a 1-inch ID, large-chassis reel with hand crank or motorized retraction capability.

Installation Notes

Installation is typically performed by licensed industrial mechanics or qualified trade technicians. Shut off and depressurize the fluid supply line completely before mounting or connecting the reel. Follow applicable facility codes and the manufacturer mounting pattern in the steel base for secure attachment to the intended surface. Do not exceed the rated hose diameter or length when configuring the reel for service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 135 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat, chip and rust resistant
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Bearings: Permanently lubricated self-aligning pillow block
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• Weight: 70 pounds
• UPC: 674255838857

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-135
