Coxreels 1175-6-135-ED Hose Reel 1 in Id 135 Ft 12V Dc

Product Description

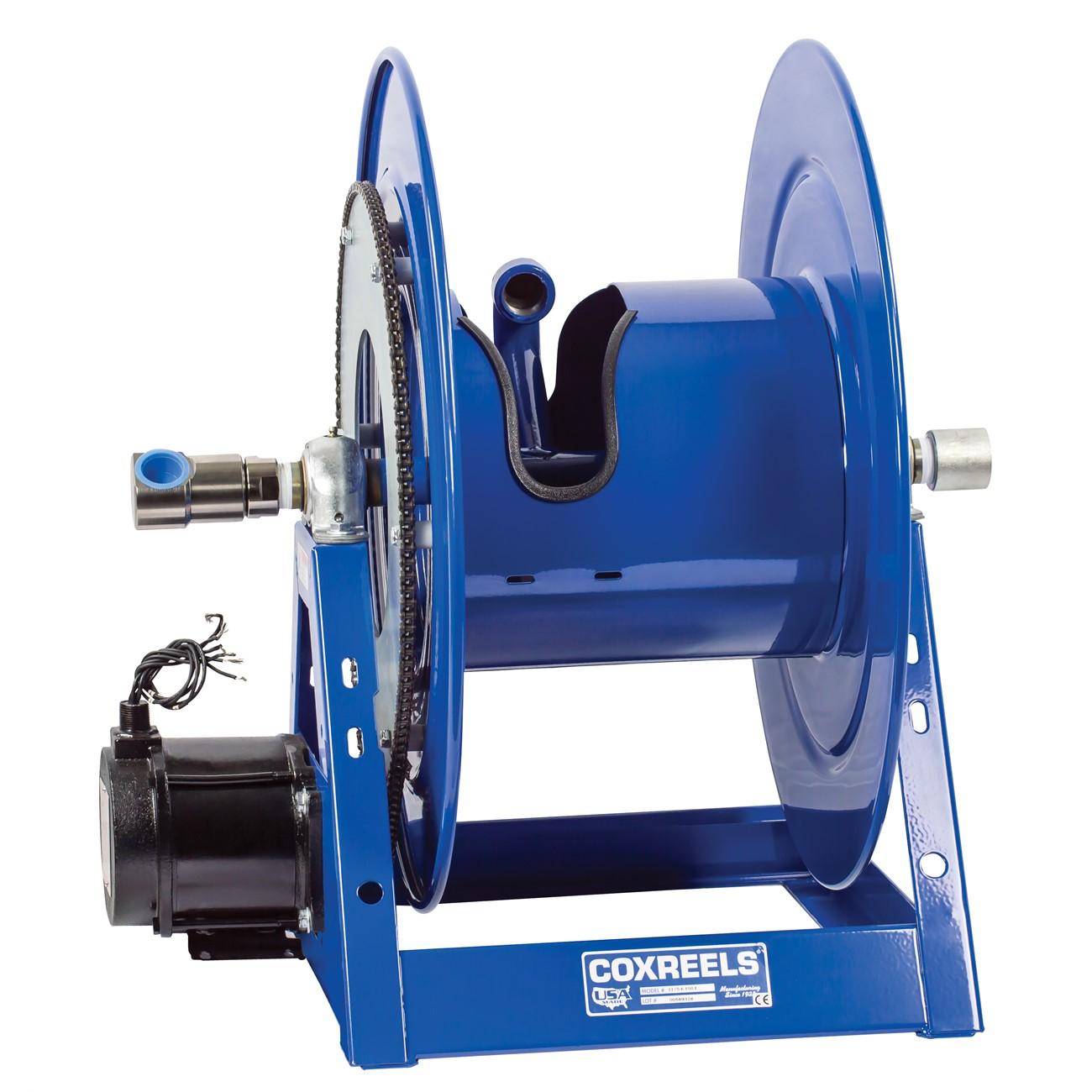

The COXREELS 1175-6-135-ED is a heavy-duty motorized hose reel from the 1175 Series, designed for industrial and commercial fluid transfer applications. It features a 1 inch ID inlet, accommodates up to 135 feet of hose, and is driven by a 12-volt DC, 1/2 HP explosion-proof reversible motor. The reel is built on a one-piece all-welded 12-gauge steel A-frame base and uses CNC robotically spun ribbed discs with rolled edges for structural integrity and hose protection. Licensed tradespeople and maintenance technicians in oil, gas, manufacturing, and heavy-service environments rely on this reel for consistent, safe hose management.

The 1175-6-135-ED is suited for larger-diameter, higher-capacity hose installations where a compact reel chassis is not sufficient. Its open drum slot and low-profile outlet riser design promotes smooth, flat hose wraps without kinking or binding. At 96 pounds and measuring 33 inches long by 20 inches wide by 23 inches tall, the reel is sized for fixed-mount installations in service bays, industrial facilities, or mobile equipment where a powered retract is required. The explosion-proof motor rating makes it appropriate for environments with flammable vapor exposure.

Key Features

• 12-volt DC, 1/2 HP explosion-proof reversible motor for powered hose retraction
• One-piece CNC robotically welded 12-gauge steel A-frame base — no bolted joints
• CNC spun, ribbed discs with rolled edges for strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design prevents hose kinking and ensures even wraps
• Nickel-plated steel 90-degree full-flow NPT swivel allows hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• CPC powder coat finish resists chipping and rust

Compatibility

Designed as an OEM-style fixed-mount motorized hose reel for industrial and commercial fluid transfer systems requiring a 1 inch ID hose path and up to 135 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial fluid transfer systems and low-voltage DC electrical wiring. Disconnect all power sources and relieve system pressure before mounting or servicing the reel. Secure the reel to a structurally rated surface using the mounting pattern in the steel base. In environments with flammable vapors, verify that all wiring connections to the explosion-proof motor comply with applicable NEC Class and Division requirements for the installation location.

Technical Specifications

• Hose ID: 1 inch
• Hose Capacity: 135 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge steel, all-welded A-frame
• Finish: CPC powder coat
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• Weight: 96 pounds
• UPC: 674255838888

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-135-ED
