Coxreels 1175-6-135-A Hose Reel 1 in Id 135 Ft

Product Description

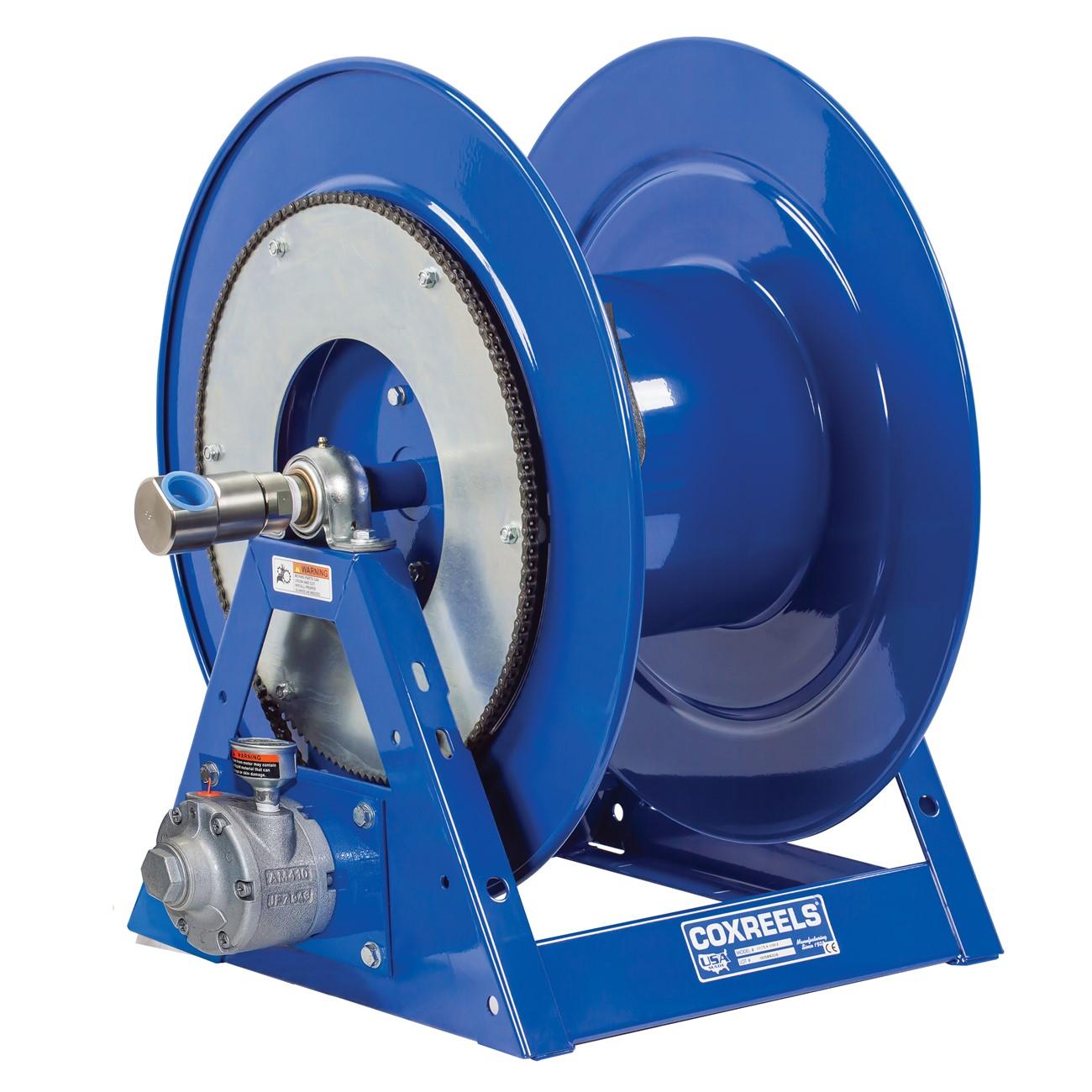

The COXREELS 1175-6-135-A is a heavy-duty hand crank and motorized hose reel from the 1175 Series, designed for industrial fluid and air distribution applications requiring larger hose capacities. Built on an all-welded one-piece 12-gauge steel A-frame base, this reel accommodates a 1-inch ID hose up to 135 feet in length. CNC robotically spun and ribbed discs with rolled edges deliver structural rigidity and protect hose integrity during repeated wrap cycles. A nickel-plated steel 90-degree full-flow NPT swivel allows for simple seal maintenance without removing the reel from its mount. Licensed HVAC technicians, industrial mechanics, and fleet service professionals specify this model where durability and high-volume hose deployment are required.

The 1175-6-135-A fits demanding shop, fleet maintenance, and industrial facility environments where larger-diameter hose and extended lengths are standard. The low-profile outlet riser and open drum slot design produce smooth, flat, non-crimping hose wraps, reducing wear on hose outer jackets over the service life of the reel. The aluminum-body 4-vane air motor option supports motorized retraction for high-cycle applications. This model ships as a single unit and is appropriate for permanent wall, floor, or ceiling mounting in service bays, mechanical rooms, and industrial facilities.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Nickel-plated steel 90-degree full-flow NPT swivel supports seal maintenance without dismounting the reel
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes even wraps
• Permanently lubricated self-aligning pillow block bearings for smooth rotation and long service intervals
• CPC powder coat finish resists chipping and rust for extended service life in demanding environments

Compatibility

Designed as an OEM-style replacement or direct-install hose reel for industrial and commercial service applications requiring 1-inch ID hose capacity up to 135 feet.

Installation Notes

Installation is typically performed by a licensed industrial mechanic or qualified service technician. Shut off all fluid supply lines and depressurize the system before mounting or connecting the reel. Secure the A-frame base to a structurally rated wall, floor, or ceiling mount rated for the combined weight of the reel and fully loaded hose. Verify that all NPT swivel connections are thread-sealed and torqued per the facility plumbing code before returning the system to pressure.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1.4375 inches
• Hose Capacity: 135 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Motor Type: Aluminum body 4-vane air motor (motorized configuration)
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• Weight: 78 pounds
• UPC: 674255838864

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-135-A
