Coxreels 1175-6-125 Hose Reel 1 in Id 125 Ft Hand Crank

Product Description

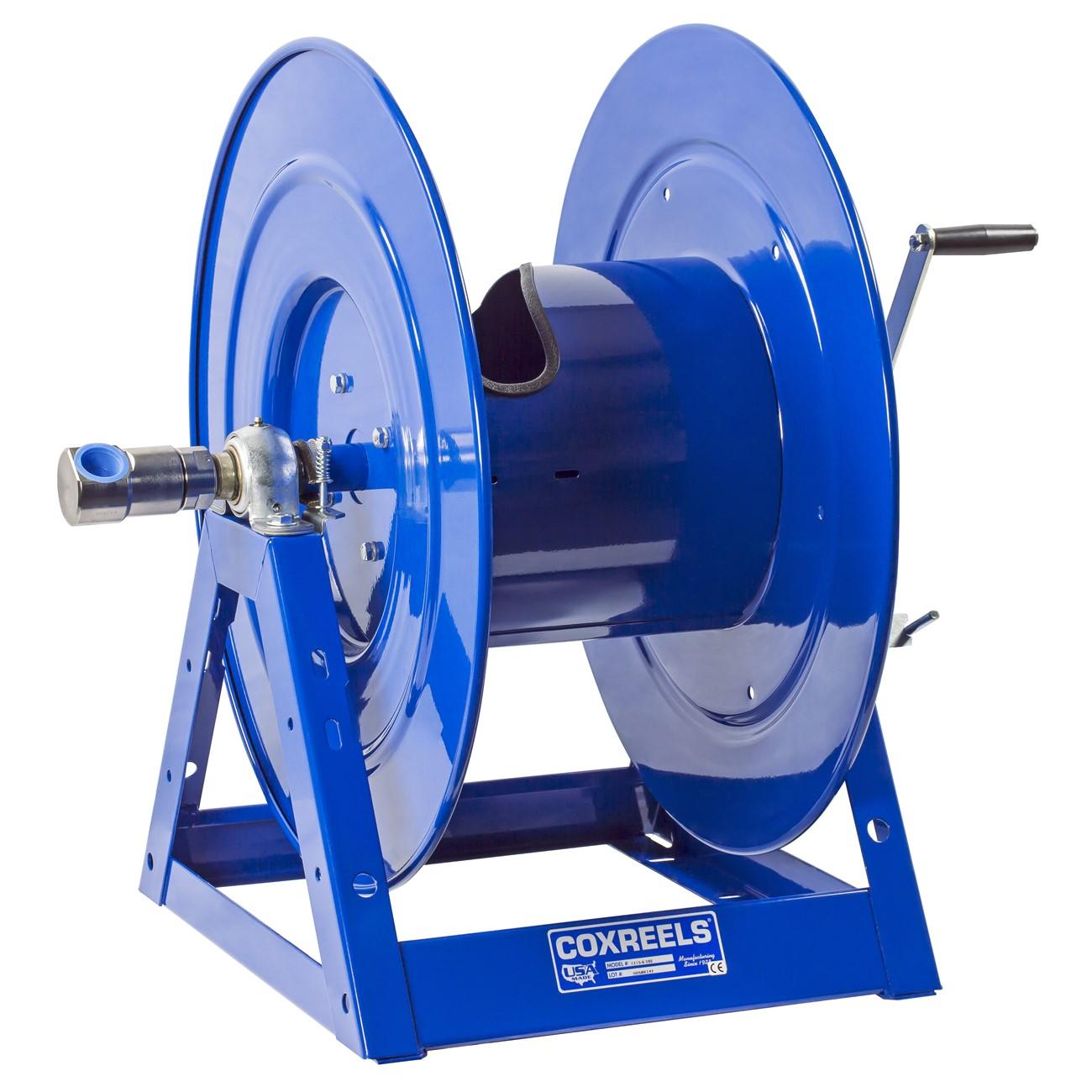

The COXREELS 1175-6-125 is a heavy-duty hose reel from the 1175 Series, designed for industrial and commercial applications that demand larger hose capacities and larger hose diameters. Built on a one-piece, all-welded 12-gauge steel A-frame base, this reel accepts a 1 inch inner diameter hose up to 125 feet in length. A nickel-plated steel 90-degree full-flow NPT swivel allows straightforward seal maintenance without removing the reel from its mount. The exclusive low-profile outlet riser and open drum slot design promotes smooth, even hose wraps and prevents kinking. A CPC powder coat finish provides long-lasting chip and rust resistance. Direct hand crank retraction and an adjustable tension brake round out the mechanical feature set.

The 1175-6-125 suits a wide range of trade applications including HVAC, plumbing, industrial fluid transfer, and general service environments where a high-capacity, manually retracted hose reel is required. The larger chassis of the 1175 Series accommodates bigger hose diameters compared to the 1125 Series, making it a practical choice for service bays, mechanical rooms, and job-site installations where 1 inch ID hose runs up to 125 feet are common. Its mounting pattern is located directly in the steel base, simplifying both installation and detachment from fixed mounting surfaces.

Key Features

• One-piece all-welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Nickel-plated steel 90-degree full-flow NPT swivel for fast seal maintenance without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design for non-crimping, flat smooth hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Adjustable tension brake prevents free-wheeling; direct hand crank enables easy mechanical retraction
• CPC powder coat finish resists chipping and rust for extended service life in demanding environments

Compatibility

Designed as an OEM-style fit within the COXREELS 1175 Series platform, accommodating 1 inch inner diameter hose up to 125 feet in length. The 1175 Series shares design heritage with the 1125 Series but is built on a larger chassis for greater hose capacity and diameter.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified service technician. Before servicing or mounting, shut off the fluid supply and relieve all pressure from the hose and reel assembly. The mounting pattern is integrated into the steel base plate; use appropriate fasteners rated for the mounting surface and expected load. Verify that the swivel inlet connection matches the supply line thread specification before pressurizing the system.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 125 feet
• Frame Material: 12-gauge steel, all-welded
• Finish: CPC powder coat, chip and rust resistant
• Retraction Method: Direct hand crank with adjustable tension brake
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 72 pounds
• UPC: 674255826533

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-125
