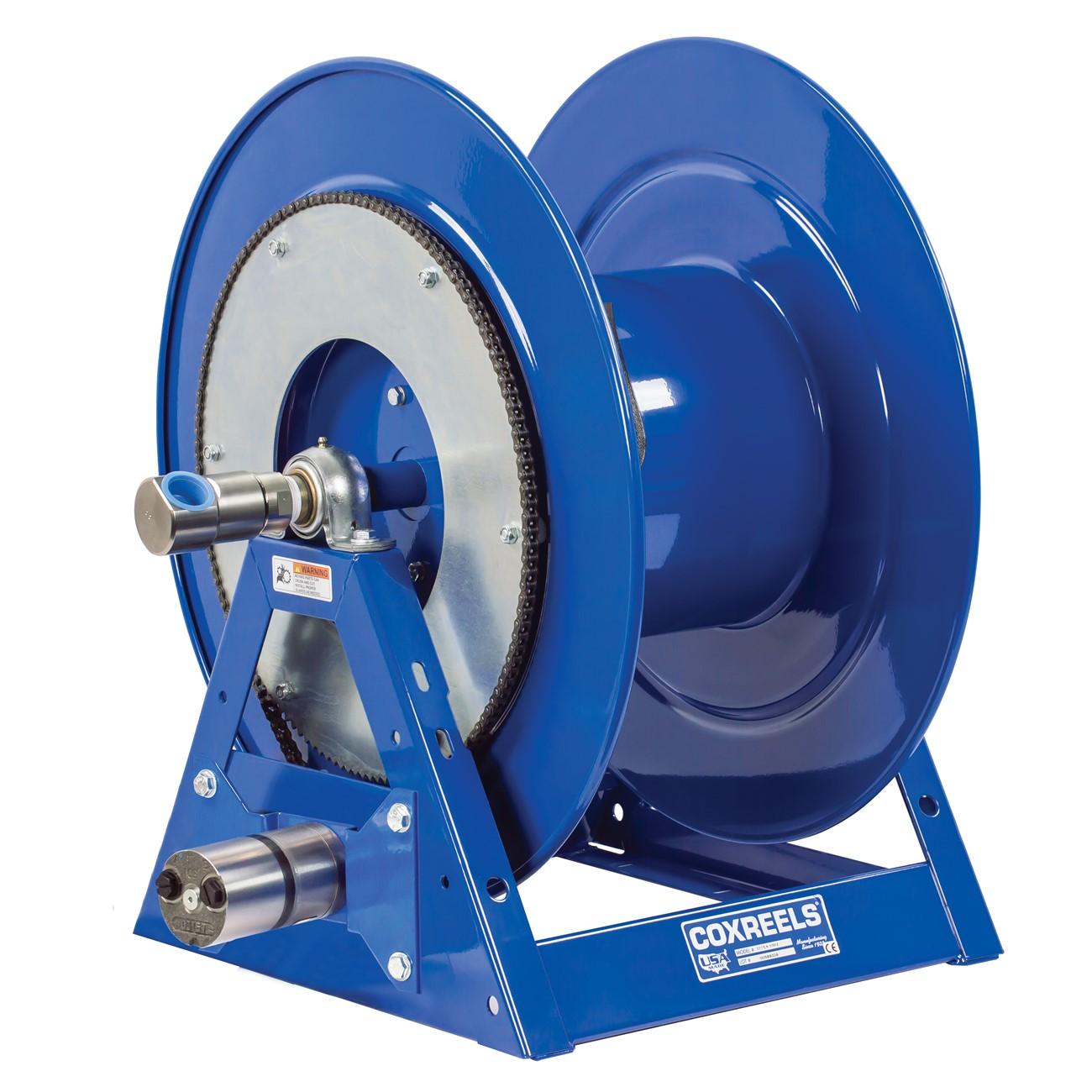

Coxreels 1175-6-125-H Hose Reel 1 in Id 125 Ft

Product Description

The COXREELS 1175-6-125-H is a heavy-duty hose reel from the 1175 Series, designed for demanding industrial and trade applications requiring large hose capacities and larger hose diameters. Built on a one-piece all-welded 12-gauge steel A-frame base, this reel accepts a 1-inch ID hose up to 125 feet in length. It ships with a hydraulic motor drive and is compatible with hand crank operation as well. The low-profile outlet riser and open drum slot design promotes smooth, even hose layering without kinking or bunching. Licensed contractors and industrial service technicians working with hydraulic fluid, water, or air lines will find this reel suited to heavy-cycle service environments.

The 1175-6-125-H fits applications where larger hose diameters and longer hose runs are required, including industrial facilities, fleet maintenance shops, agricultural operations, and heavy equipment service bays. The larger chassis of the 1175 Series accommodates greater hose capacities compared to smaller-frame reel designs. Its mounting pattern is built into the steel base, simplifying installation to fixed surfaces or mobile service rigs. Both hand crank and hydraulic motor operation make it adaptable to powered or manual service configurations.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Nickel-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC spun and ribbed discs with rolled edges for enhanced strength, hose protection, and operator safety
• Low-profile outlet riser and open drum slot design eliminates hose crimping and promotes flat, smooth wraps
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition for extended outdoor or shop service

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial hose reel applications requiring a 1-inch ID hose connection and up to 125 feet of hose capacity in the 1175 Series platform.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid power or hydraulic system plumbing. Shut off and depressurize all fluid supply lines before mounting or connecting the reel. Secure the reel to a structurally adequate surface using the mounting pattern built into the base. Verify hydraulic motor supply and return line connections meet the system pressure and flow requirements before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 125 feet
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 78 pounds
• Frame Material: 12-gauge steel, CNC welded
• Drive Type: Hydraulic motor
• Swivel Material: Nickel-plated steel
• Finish: CPC powder coat
• UPC: 674255841949

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-125-H
