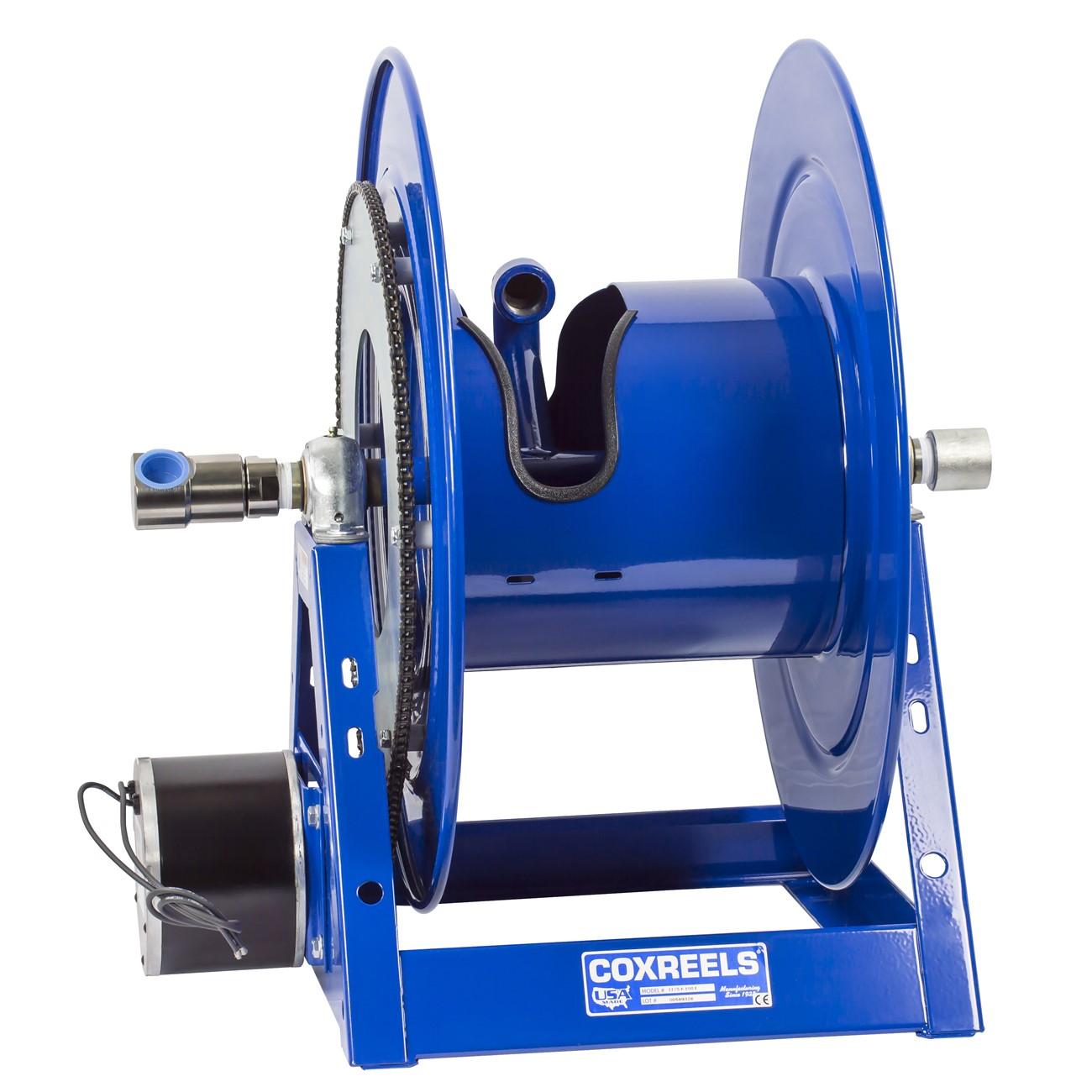

Coxreels 1175-6-125-E Motorized Hose Reel 1 in 125 Ft

Product Description

The COXREELS 1175-6-125-E is a heavy-duty motorized hose reel from the 1175 Series, designed for industrial and commercial fluid-transfer applications that demand large hose capacity and reliable powered retrieval. Built around a one-piece all-welded 12-gauge steel A-frame base, this reel accepts 1-inch ID hose up to 125 feet in length and is driven by a 12-volt DC, 1/3 HP reversible electric motor. A nickel-plated steel 90-degree full-flow NPT swivel simplifies seal maintenance without removing the reel from its mount, and a CPC powder coat finish resists chipping and rust for long service life in demanding environments.

The 1175-6-125-E is suited for large-volume hose applications in industrial facilities, fleet maintenance shops, agriculture operations, and commercial service environments where powered hose retrieval reduces operator fatigue and speeds up workflow. The open-drum slot and low-profile outlet riser deliver a flat, non-crimping hose wrap that protects hose integrity during repeated use. Licensed contractors and industrial maintenance technicians are the primary installers of this reel.

Key Features

• 12-volt DC, 1/3 HP reversible motor provides powered hose pay-out and retrieval
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose changes without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Exclusive low-profile outlet riser and open-drum slot design ensures smooth, non-crimping hose wraps
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and low maintenance
• CPC powder coat finish resists chips and rust for extended service life

Compatibility

Designed as an OEM-style motorized hose reel for industrial and commercial fluid-transfer systems requiring 1-inch ID hose up to 125 feet in length.

Installation Notes

Installation is typically performed by licensed industrial mechanics or qualified maintenance technicians. Disconnect and lock out all electrical power and depressurize the hose and fluid supply before mounting or servicing this reel. The mounting pattern is located in the steel base; ensure the mounting surface can support the loaded weight of the reel and hose. Electrical connections for the 12-volt DC motor should comply with applicable local electrical codes and the manufacturer wiring instructions.

Technical Specifications

• Hose ID: 1 inch
• Hose Capacity: 125 feet
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 85 pounds
• UPC: 674255826571

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-125-E
