Coxreels 1175-6-125-C Hose Reel 1 in Id 125 Ft

Product Description

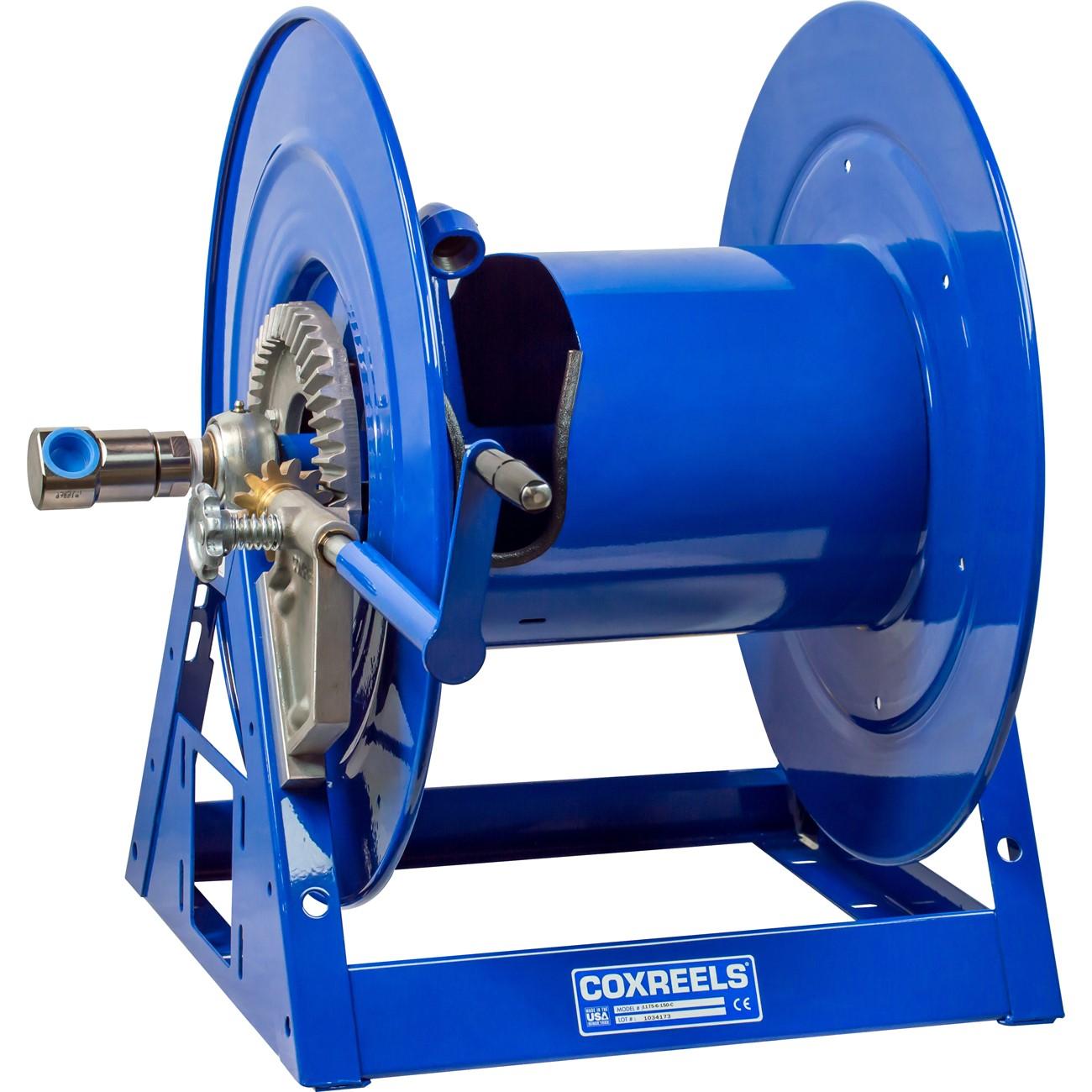

The COXREELS 1175-6-125-C is a heavy-duty hand crank hose reel from the 1175 Series, engineered for industrial and commercial applications that demand larger hose capacities and greater hose diameters. Built on a one-piece, fully welded 12-gauge steel A-frame base, this reel accepts hose with a 1-inch inner diameter and a 1-7/16-inch outer diameter, handling up to 125 feet of hose. A nickel-plated steel 90-degree full-flow NPT swivel, CNC-spun ribbed discs, and permanently lubricated pillow block bearings combine to deliver smooth rotation and reliable daily service. The unit weighs 75 pounds and ships as a single assembly.

This reel is suited for industrial facilities, fleet maintenance shops, construction sites, and similar environments where high-volume fluid or air delivery is required. The open drum slot and low-profile outlet riser design promotes flat, even hose wraps, reducing kinking and wear during repeated use. Licensed trades including industrial mechanics and plumbing contractors commonly specify this reel for wash-down, lubrication, coolant, and compressed-air service lines where a motorized or hand-crank retraction option is needed.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for structural rigidity without bolted joints
• Low-profile outlet riser and open drum slot design for non-crimping, flat smooth hose wraps
• Nickel-plated steel 90-degree full-flow NPT swivel enables seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition; adjustable tension brake prevents free-wheeling

Compatibility

Designed as an OEM-style replacement or new-installation reel for industrial hose management systems requiring a 1-inch ID hose connection with up to 125 feet of hose capacity.

Installation Notes

Installation is typically performed by industrial mechanics or licensed plumbing contractors. Shut off and depressurize the supply line completely before mounting or connecting the reel. Secure the A-frame base to a flat, rigid mounting surface using the integrated base mounting pattern. Verify that all swivel connections and supply fittings are torqued per the fitting manufacturer guidelines and pressure-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1-7/16 inches
• Hose Capacity: 125 feet
• Frame Material: 12-gauge steel, fully welded
• Swivel Finish: Nickel-plated steel
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 75 pounds
• UPC: 674255846906

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-125-C
