Coxreels 1175-6-125-A Hose Reel 1 in Id 125 Ft

Product Description

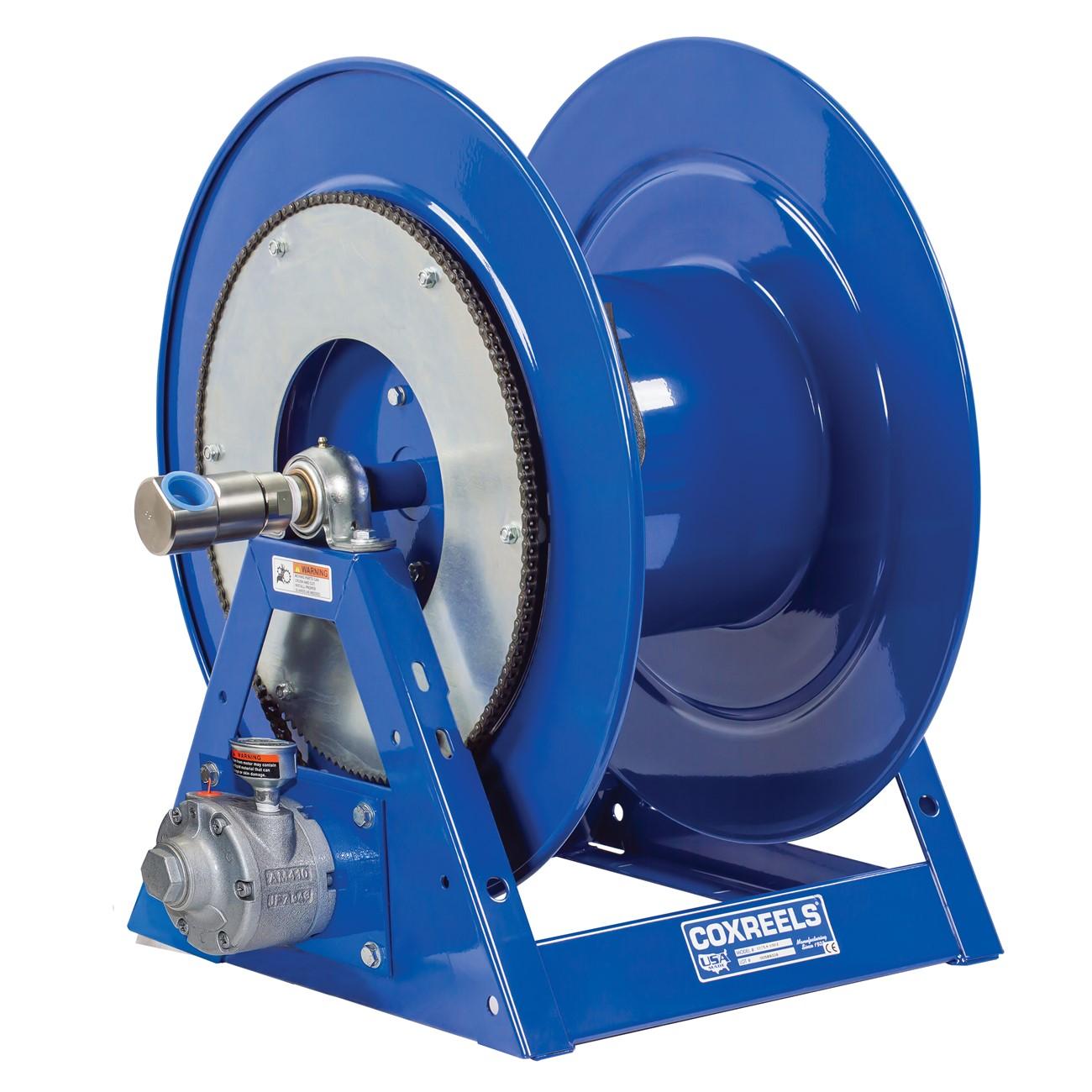

The COXREELS 1175-6-125-A is a heavy-duty hand crank and motorized hose reel from the 1175 Series, built for demanding industrial and trade applications. It accommodates a 1 inch inner diameter hose with a 125 foot capacity, making it well suited for high-volume fluid or air delivery tasks. The reel features a one-piece all-welded 12-gauge steel A-frame base, CNC robotically spun and ribbed disc sides, and a nickel-plated steel 90-degree full-flow NPT swivel. A licensed HVAC technician, plumber, or industrial maintenance professional would typically specify this unit for permanent or semi-permanent installation in a shop, fleet bay, or mechanical room.

The 1175-6-125-A is designed for industrial and commercial environments where larger hose diameters and longer hose runs are required. Its low-profile outlet riser and open drum slot design produce a flat, non-crimping hose wrap, reducing wear on the hose over extended service cycles. The unit is available in both hand crank and motorized configurations, giving installers flexibility depending on the application and frequency of use. Its mounting pattern is integrated into the steel base, allowing straightforward installation and removal.

Key Features

• 1 inch ID hose inlet with 125 foot hose capacity for high-volume fluid or air delivery
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• CNC spun and ribbed disc sides with rolled edges for hose protection and operator safety
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition for harsh environments
• Aluminum body 4-vane air motor option available for motorized operation

Compatibility

Designed as an OEM-style replacement and direct fit within the COXREELS 1175 Series hose reel platform, compatible with standard NPT hose and fitting connections at the specified 1 inch ID inlet size.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with industrial hose reel mounting and fluid or compressed air systems. Shut off and depressurize all supply lines before mounting or servicing the reel. Secure the reel to a structural surface using the integrated base mounting pattern, following local building and mechanical codes. Do not exceed the rated hose diameter or length capacity during installation.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 125 feet
• Frame Material: 12-gauge steel, all-welded construction
• Swivel Material: Nickel-plated steel
• Swivel Type: 90-degree full-flow NPT
• Motor Type: Aluminum body 4-vane air motor
• Finish: CPC powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 80 pounds
• UPC: 674255826540

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-125-A
