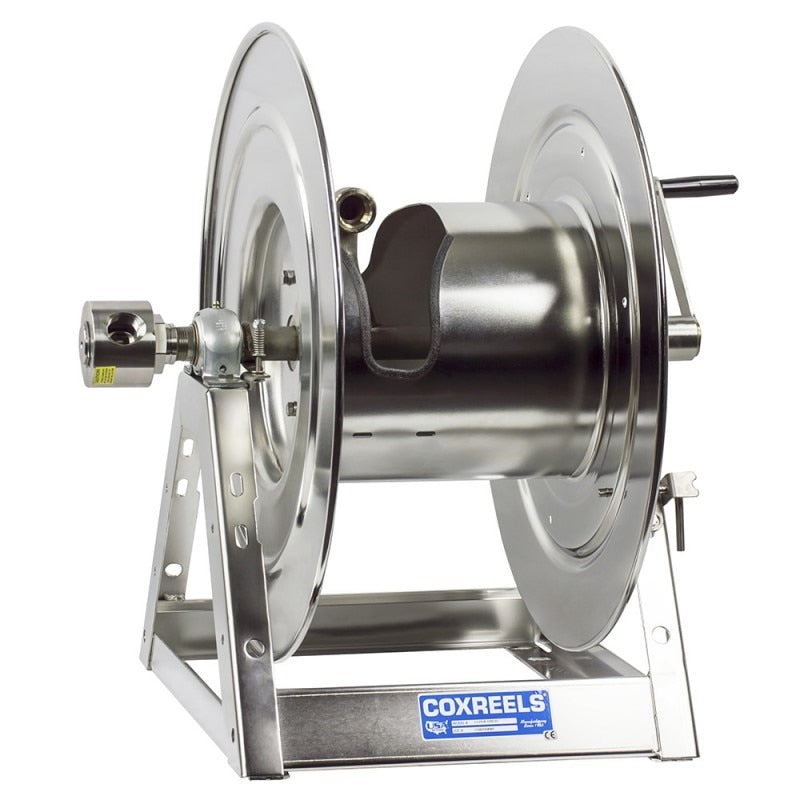

Coxreels 1175-6-100-SP Stainless Steel Hose Reel 1 in 100 Ft

Product Description

The COXREELS 1175-6-100-SP is a stainless steel hand crank hose reel built for demanding service environments where corrosion, contamination, and rust are ongoing concerns. Part of the COXREELS 1175-SS Series, it features an electro-polished stainless steel construction with a fully stainless fluid path. The reel accommodates hose with a 1 inch inner diameter and 1 7/16 inch outer diameter, with a 100-foot hose capacity. Weighing 70 pounds, it is a heavy-duty unit intended for permanent installation by maintenance technicians, industrial facility crews, or service professionals requiring a clean, non-corrosive dispensing solution.

This hose reel is suited for applications where standard carbon steel reels would corrode or contaminate the fluid being dispensed. Typical installation environments include food and beverage processing facilities, chemical processing plants, marinas, and wash-down stations exposed to salt air, harsh chemicals, or sanitary regulations. The hand crank drive makes it appropriate for fixed mounting locations where a motorized reel is unnecessary and manual control is preferred.

Key Features

• Electro-polished stainless steel construction with fully stainless internal and external fluid path for non-corrosive, contamination-free service
• Machined stainless steel 90-degree full-flow NPT swivel inlet for smooth, leak-resistant hose movement
• Heavy-duty CNC robotically spun and ribbed stainless steel discs with rolled edges for strength, durability, and hose protection
• Exclusive low-profile stainless steel outlet riser and open drum slot design delivers a flat, non-crimping hose wrap
• One-piece CNC robotically welded 1/4 inch stainless steel A-frame base with integrated mounting pattern for secure, bolt-free reel structure
• Adjustable tension brake prevents free-wheeling; permanently lubricated self-aligning pillow block bearings ensure smooth rotation

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1175-SS Series, compatible with hose having a 1 inch inner diameter and up to 1 7/16 inch outer diameter at 100 feet of length.

Installation Notes

Installation should be performed by a qualified maintenance technician or industrial tradesperson familiar with fluid dispensing systems. Shut off all fluid supply lines and depressurize the system before mounting or connecting the reel. The A-frame base mounting pattern allows floor, wall, or ceiling mounting depending on the bracket configuration. Verify that all inlet and outlet fittings are compatible with the fluid media and pressure rating before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 100 feet
• Weight: 70 pounds
• Material: Electro-polished stainless steel
• Drive Type: Direct hand crank
• Frame Construction: One-piece CNC robotically welded 1/4 inch stainless steel A-frame
• Swivel Inlet: 90-degree full-flow NPT stainless steel
• Brake: Adjustable tension brake
• Bearings: Permanently lubricated self-aligning pillow block
• UPC: 674255852013

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-100-SP
