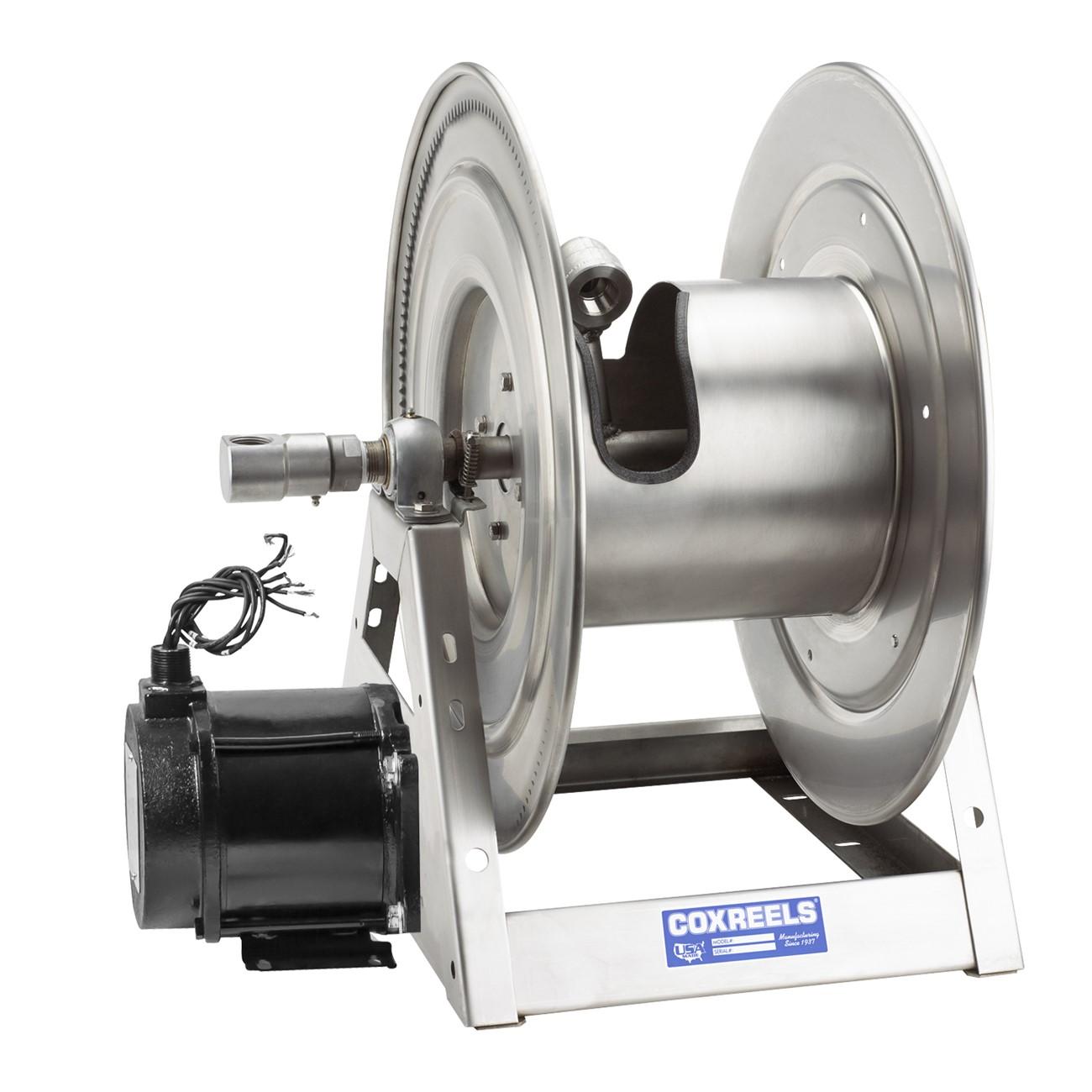

Coxreels 1175-6-100-EJ-SP Stainless Steel Hose Reel

Product Description

The COXREELS 1175-6-100-EJ-SP is a heavy-duty stainless steel hose reel from the 1175-SS Series, built for demanding applications where corrosion resistance and fluid purity are non-negotiable. It accepts hose with a 1 inch ID and 1 7/16 inch OD and holds up to 100 feet of hose. The reel is constructed from electro-polished stainless steel with a full stainless steel fluid path, keeping media clean and uncontaminated from inlet to outlet. A 230-volt AC, 1/2 HP reversible AC rectified motor drives retraction, making this unit appropriate for professional service environments where manual rewinding is not practical. Licensed trades and industrial service technicians are the primary installers.

This reel is designed for use in food and chemical processing facilities, marinas, agricultural operations, and any environment where rust, corrosion, or contamination are ongoing concerns. The stainless steel construction makes it suitable for washdown stations, chemical dispensing lines, and potable or process fluid delivery. Its adjustable tension brake and motorized operation support consistent, repeatable hose management in high-cycle service. The low-profile outlet riser and open drum slot design produce a flat, non-crimping hose wrap that preserves hose integrity across frequent use.

Key Features

• Electro-polished stainless steel construction with full stainless steel fluid path for non-corrosive, contamination-free performance
• 230V AC, 1/2 HP reversible AC rectified motor for powered hose retraction
• Machined stainless steel 90-degree full-flow NPT swivel inlet for leak-resistant external fluid connection
• Heavy-duty CNC robotically spun and ribbed stainless steel discs with rolled edges for hose protection and operator safety
• Exclusive low-profile stainless steel outlet riser and open drum slot for flat, non-crimping hose wrap
• Sturdy one-piece CNC robotically welded 1/4 inch stainless steel A-frame base with integrated mounting pattern for easy installation and removal
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long-term trouble-free operation

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1175-SS Series, compatible with 1 inch ID hose up to 100 feet in length. Refer to COXREELS documentation to confirm fitment with specific hose assemblies and mounting configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling equipment and applicable electrical codes. Before servicing or mounting, disconnect all power to the motor circuit and depressurize the supply line completely. The A-frame base mounting pattern allows for direct bolting to a suitable fixed surface; verify that the mounting substrate can support the loaded weight of the reel and hose. Motor wiring must comply with NEC requirements for the rated 230V AC supply voltage.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1 7/16 inches
• Hose Capacity: 100 feet
• Motor Voltage: 230 volts AC
• Motor Output: 1/2 HP reversible AC rectified
• Frame Material: 1/4 inch stainless steel, CNC robotically welded one-piece A-frame
• Finish: Electro-polished stainless steel (standard unpolished as-manufactured also noted)
• Weight: 96 pounds
• UPC: 674255858015

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-100-EJ-SP
