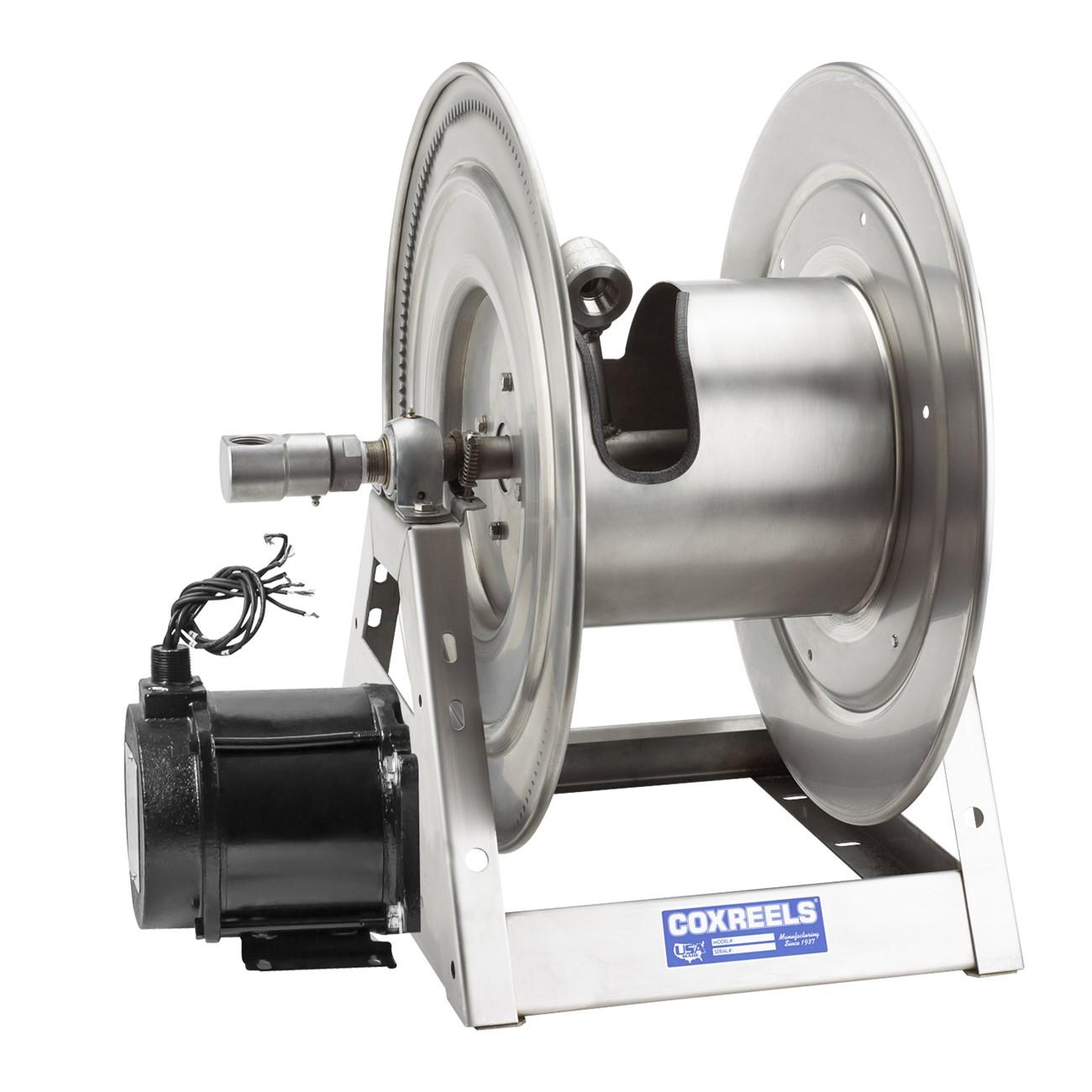

Coxreels 1175-6-100-ED-SP Stainless Steel Hose Reel

Product Description

The COXREELS 1175-6-100-ED-SP is an electro-polished stainless steel hand-crank and electric motor hose reel designed for corrosive, sanitary, and chemically aggressive environments. Built on the 1175-SS Series platform, it features a 1 inch ID hose inlet, accommodates up to 100 feet of hose, and is driven by a 12-volt DC, 1/2 HP explosion-proof reversible motor. The fluid path is fully stainless steel throughout, including a machined 90-degree full-flow NPT swivel inlet, making it appropriate for food processing, chemical handling, marina service, and anywhere rust, contamination, or corrosive wash-down conditions are a concern. Licensed technicians and industrial service professionals are the primary installers.

This reel is suited for industrial and commercial applications requiring non-corrosive fluid delivery or retrieval. Common deployment scenarios include food and beverage processing facilities, marine dock installations, chemical plants, and wash-down stations where standard carbon steel reels would corrode or contaminate the fluid stream. The low-profile outlet riser and open drum slot design produce a flat, non-crimping hose wrap, which extends hose service life in high-cycle applications.

Key Features

• Electro-polished stainless steel construction with fully stainless fluid path for corrosion resistance and cleanability
• 12V DC, 1/2 HP explosion-proof reversible electric motor for powered hose retrieval
• Machined stainless steel 90-degree full-flow NPT swivel inlet for non-corrosive external fluid connection
• Heavy-duty CNC robotically spun and ribbed stainless steel discs with rolled edges for strength and hose protection
• One-piece CNC robotically welded 1/4-inch stainless steel A-frame base with integrated mounting pattern for secure installation
• Adjustable tension brake prevents free-wheeling; permanently lubricated self-aligning pillow block bearings for smooth rotation

Compatibility

Designed as a direct-fit unit within the COXREELS 1175-SS Series for applications requiring stainless steel construction and a 12V DC explosion-proof electric drive on a 1 inch ID, 100-foot hose configuration.

Installation Notes

Installation of this reel should be performed by a qualified industrial or mechanical technician familiar with hose reel mounting and low-voltage DC wiring. Disconnect all power and depressurize the hose line completely before mounting or servicing the unit. Secure the A-frame base to a structurally rated surface using the integrated mounting pattern, and verify that the 12V DC power supply is correctly sized and fused for the 1/2 HP motor before energizing. Consult applicable electrical codes and the manufacturer installation guide for explosion-proof motor wiring requirements in classified areas.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 100 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible electric
• Frame Material: 1/4-inch stainless steel, CNC robotically welded one-piece A-frame
• Disc Material: Stainless steel, CNC robotically spun and ribbed
• Finish: Electro-polished stainless steel
• Weight: 96 pounds
• Unit of Measure: Each
• UPC: 674255854802

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-100-ED-SP
