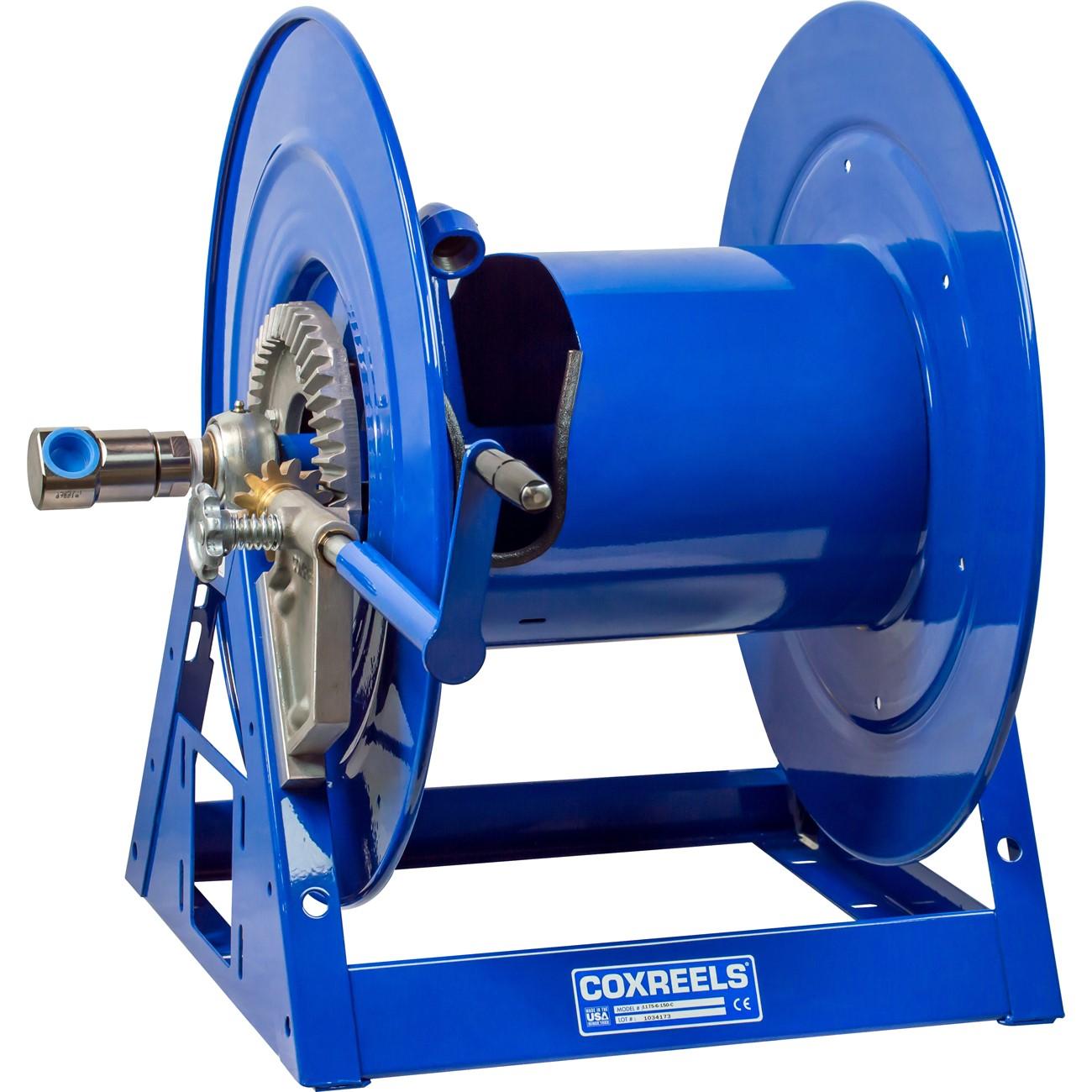

Coxreels 1175-6-100-C Hose Reel 1 Inch Id 100 Ft

Product Description

The COXREELS 1175-6-100-C is a heavy-duty hand crank hose reel from the 1175 Series, designed for demanding industrial and commercial fluid-transfer applications. Built on a one-piece, all-welded 12-gauge steel A-frame base, this reel accommodates a 1-inch ID hose up to 100 feet in length. A CPC powder coat finish provides long-lasting chip and rust resistance. The unit ships as a single reel assembly and is sized for applications requiring larger hose capacities and hose diameters than standard light-duty reels. Pillow block bearings, a front bevel-geared crank, and an adjustable tension brake come standard.

The 1175-6-100-C suits industrial, commercial, and trade service environments where reliable, repeatable hose management is critical. Typical installations include maintenance bays, fleet service facilities, manufacturing floors, and contractor work sites. The open-drum slot and low-profile outlet riser design promote smooth, even hose layering during retraction, reducing kinking and extending hose service life. Licensed plumbing, HVAC, and general mechanical contractors commonly specify this reel for air, water, and compatible fluid lines routed to fixed or semi-permanent service points.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for rigid, bolt-free reel structure with integrated mounting pattern
• Low-profile outlet riser and open drum slot design delivers a flat, non-crimping hose wrap for consistent retraction
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings provide smooth rotation and low-maintenance operation
• Adjustable tension brake prevents free-wheeling; CPC powder coat finish resists chipping and rust

Compatibility

Designed as an OEM-style replacement or direct-specification hose reel for industrial and commercial hose management systems requiring a 1-inch ID hose connection and up to 100 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified mechanical or plumbing technician familiar with fluid-transfer systems. Shut off and depressurize the supply line before connecting or disconnecting the swivel inlet. Secure the A-frame base to a structurally sound mounting surface using fasteners appropriate for the load rating of the installation. Verify that the hose material and fittings are rated for the fluid type, pressure, and temperature of the intended service.

Technical Specifications

• Hose ID: 1 inch
• Hose Capacity: 100 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Bearings: Permanently lubricated self-aligning pillow block
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 73 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-100-C
