Coxreels 1175-6-100-AB Hose Reel 1 in Id 100 Ft

Product Description

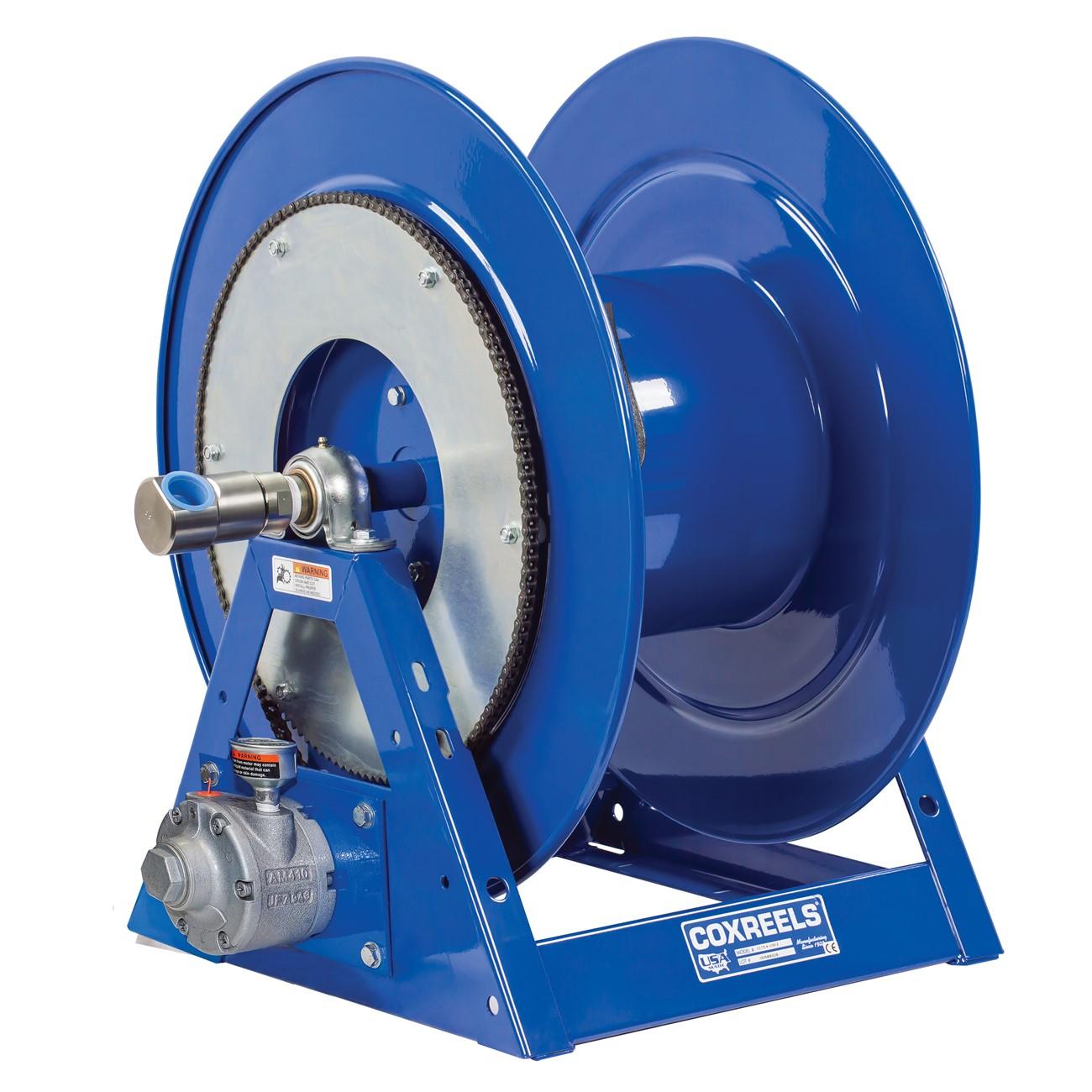

The COXREELS 1175-6-100-AB is a heavy-duty hand crank and motorized hose reel from the 1175 Series, designed for demanding industrial and trade applications. It accommodates a 1 inch inner diameter hose with a 1 7/16 inch outer diameter at a 100 ft capacity. The reel is built on a one-piece all-welded 12-gauge steel A-frame base that provides rigid structural integrity without bolted joints. A low-profile outlet riser and open drum slot design guides hose onto the drum in flat, even wraps, reducing kinking and wear. Licensed plumbers, industrial maintenance crews, and facility service techs are the typical installers.

The 1175-6-100-AB is suited for larger hose diameter and higher-capacity applications where a smaller-chassis reel would be insufficient. The larger 1175 Series chassis accepts hose sizes and lengths that exceed the capacity of the 1125 Series, making it a fit for commercial, industrial, and heavy-trade service environments. It supports both hand crank and motorized operation, giving installers flexibility based on job-site requirements. The powder coat finish resists chipping and rust, making it durable in harsh service bays, wash-down areas, and outdoor installations.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base for superior reel structure with no bolted joints
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Low-profile outlet riser and open drum slot design produces flat, non-crimping hose wraps around the drum
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Chip-resistant, rust-inhibiting CPC powder coat finish rated for demanding service environments

Compatibility

Designed for use with 1 inch inner diameter hose up to 100 ft in length; part of the COXREELS 1175 Series, which is built for larger hose capacities and diameters than the 1125 Series.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with industrial hose reel mounting requirements. Shut off all fluid or air supply lines and relieve system pressure before mounting or connecting the reel. Secure the reel to a structurally sound surface using the mounting pattern located in the steel base. Verify all swivel and hose connections are properly sealed and torqued to the fitting manufacturer's specifications before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 100 ft
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 78 pounds
• UPC: 674255850989

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-100-AB
