Coxreels 117-4-225-SS Ss Hand Crank Hose Reel 1/2 in 225 Ft

Product Description

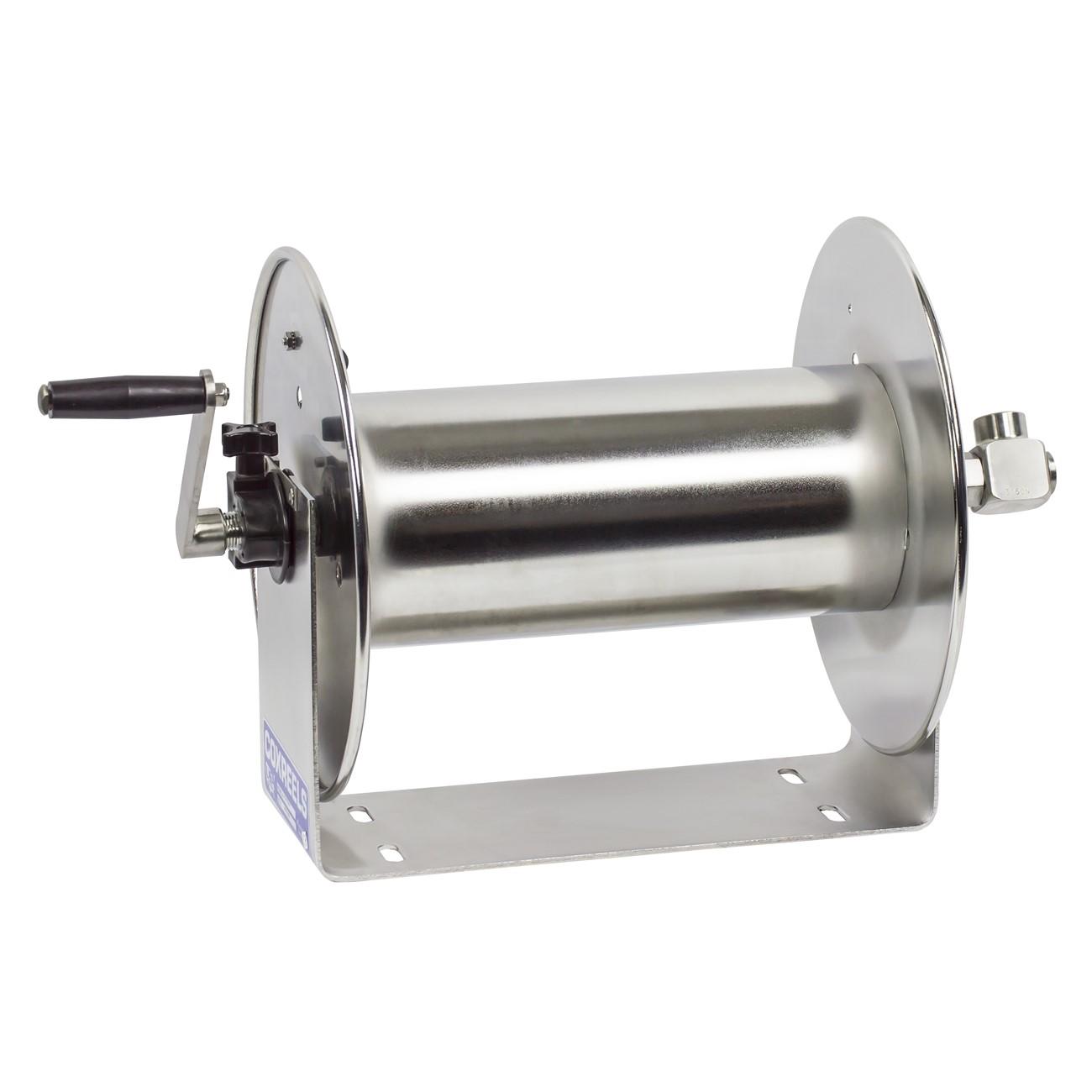

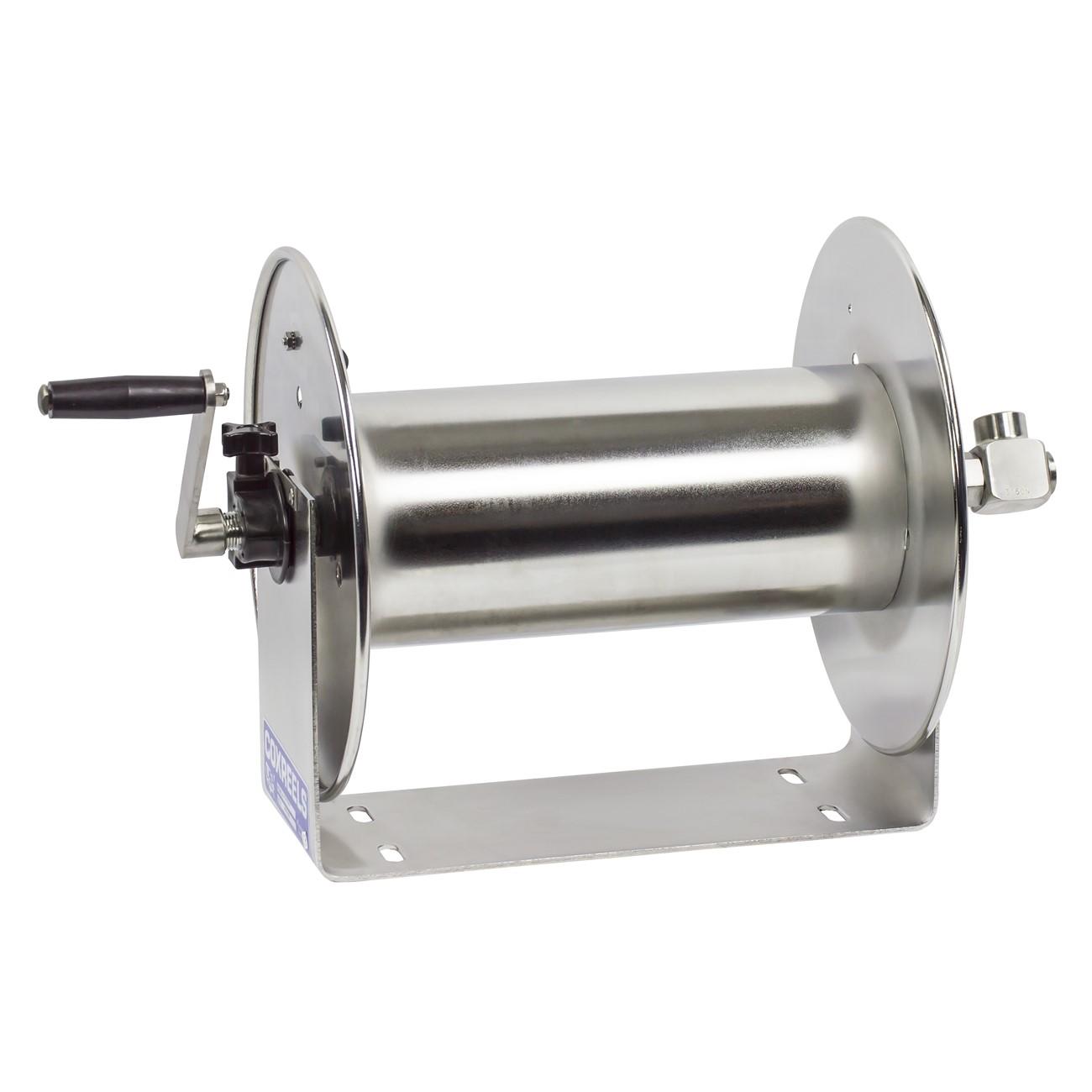

The COXREELS 117-4-225-SS is a stainless steel hand crank hose reel built for demanding commercial and industrial environments where corrosion, rust, and contamination are ongoing concerns. Part of the COXREELS 100-SS Series, it features a fully electro-polished stainless steel construction with a stainless steel fluid path throughout. The reel accommodates hose with a 1/2 inch interior diameter and 7/8 inch outer diameter, with a 225-foot length capacity. A machined stainless steel 90-degree full-flow NPT swivel inlet keeps the external fluid path non-corrosive. A direct hand crank provides straightforward mechanical retraction without a spring mechanism.

This hose reel is suited for food and chemical processing facilities, marinas, washdown stations, and any application where moisture, harsh chemicals, or sanitation requirements rule out carbon steel or coated alternatives. The compact U-shaped frame design keeps the footprint manageable for wall or fixed-surface mounting in tight service bays or dock environments. Facilities requiring clean, contamination-free fluid handling will find this reel appropriate for both liquid chemical transfer and general-purpose hose storage.

Key Features

• Electro-polished stainless steel U-shaped one-piece frame for corrosion resistance and structural rigidity
• Stainless steel fluid path with machined 90-degree full-flow NPT swivel inlet
• Heavy duty CNC robotically spun and ribbed stainless steel discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, and storage
• Direct hand crank for manual mechanical retraction without spring dependence
• Chip-resistant, rust-inhibiting CPC powder coat finish on applicable components

Compatibility

Designed for use with hose measuring 1/2 inch inner diameter and 7/8 inch outer diameter, up to 225 feet in length, with standard NPT swivel inlet connections typical of commercial and industrial hose reel installations.

Installation Notes

Installation is typically performed by a qualified mechanic or facilities technician. Mount to a solid structural surface capable of supporting the reel weight plus the weight of a fully loaded hose. Depressurize and drain the fluid system completely before connecting or disconnecting hose fittings at the swivel inlet. Verify that all NPT thread connections are properly sealed with thread tape or sealant rated for the intended fluid service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 225 feet
• Frame Material: Electro-polished stainless steel
• Retraction Type: Hand crank
• Swivel Inlet: 90-degree full-flow NPT stainless steel
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 31 pounds
• UPC: 674255800519

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117-4-225-SS
