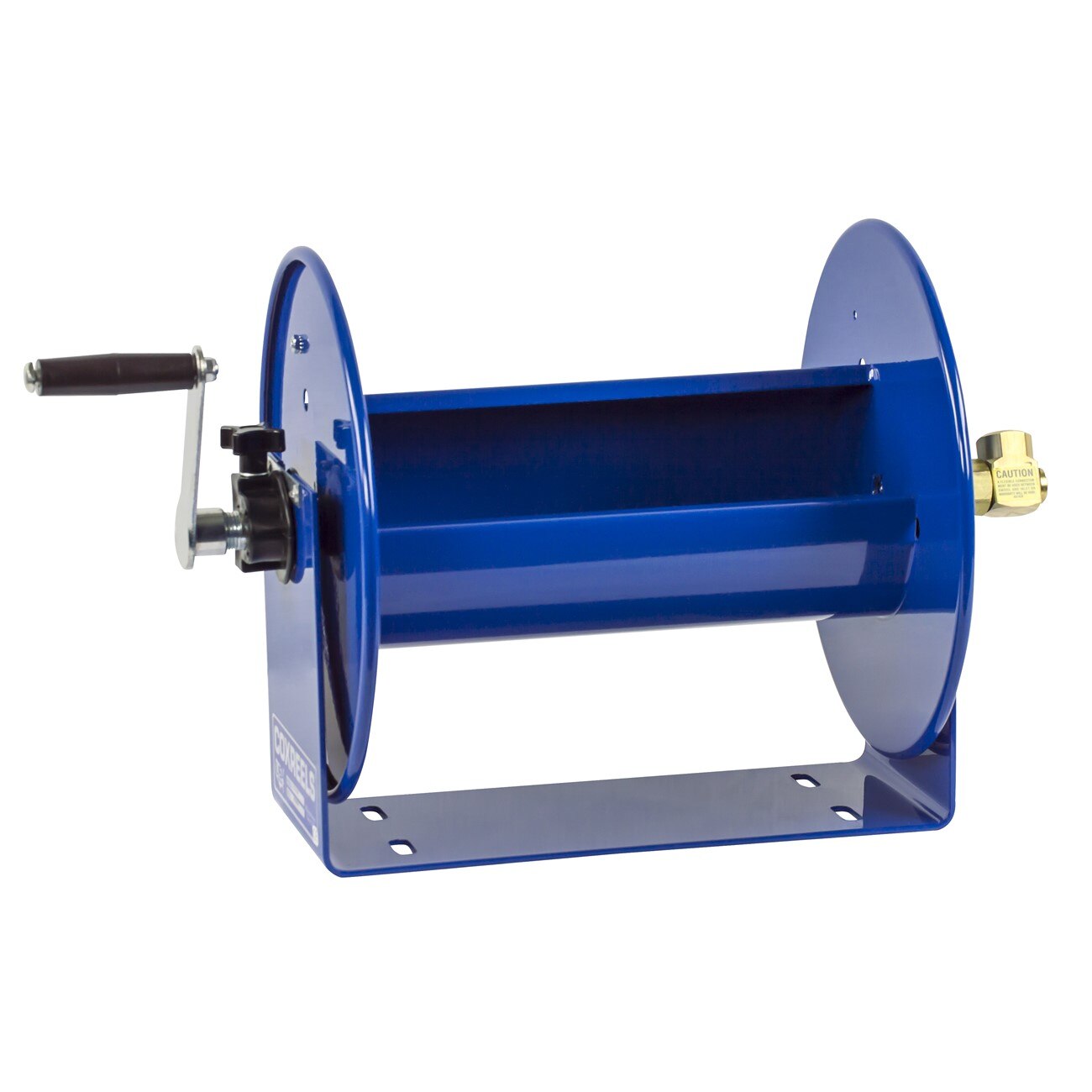

Coxreels 117-4-225 Hand Crank Hose Reel 225 Ft Steel

Product Description

The COXREELS 117-4-225 is a 100 Series hand crank hose reel built for demanding commercial and industrial environments. Constructed from heavy-gauge steel with a CPC powder coat finish, it handles working pressures up to 4,000 psi. The reel accepts 1/2 inch ID hose and accommodates up to 225 feet of hose length. A machined solid brass 90-degree full-flow NPT swivel simplifies seal maintenance and speeds up hose installation without requiring removal from the mount. The adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage. All units are supplied without hose. Licensed trades and service contractors in high-pressure fluid transfer applications rely on this reel for repeatable, safe operation.

The 117-4-225 is suited for hydraulic service, pressure washing, industrial fluid transfer, and similar high-pressure hose management tasks in commercial and industrial settings. Its compact footprint and lightweight steel frame make it practical in service bays, fleet maintenance facilities, and fixed equipment stations. The direct hand crank provides straightforward mechanical retraction without electrical components. The U-shaped frame design allows mounting in tight spaces while keeping the hose accessible.

Key Features

• Rated working pressure up to 4,000 psi for high-demand service applications
• Accepts 1/2 inch ID hose up to 225 feet in length
• Machined solid brass 90-degree full-flow NPT swivel for easy seal maintenance without dismounting
• Adjustable tension brake controls draw speed and prevents free-wheeling
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• CPC powder coat finish resists chips and rust for long service life
• Direct hand crank mechanical retraction with no electrical components required

Compatibility

Designed for use with 1/2 inch ID hose in high-pressure commercial and industrial hose reel applications. Supplied without hose; compatible hose must meet the 4,000 psi working pressure rating and 1/2 inch ID specification.

Installation Notes

Installation is typically performed by industrial maintenance technicians or qualified service professionals. Depressurize and bleed all connected lines before mounting or servicing the reel. Secure the U-shaped frame to a structurally adequate surface using appropriate fasteners rated for the load. Verify that all hose fittings and swivel connections are properly torqued and leak-free before returning the system to service.

Technical Specifications

• Working Pressure: 4,000 psi
• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 225 feet
• Frame Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Retraction Method: Direct hand crank
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 31 pounds
• Sold As: Unit only, hose not included

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117-4-225
