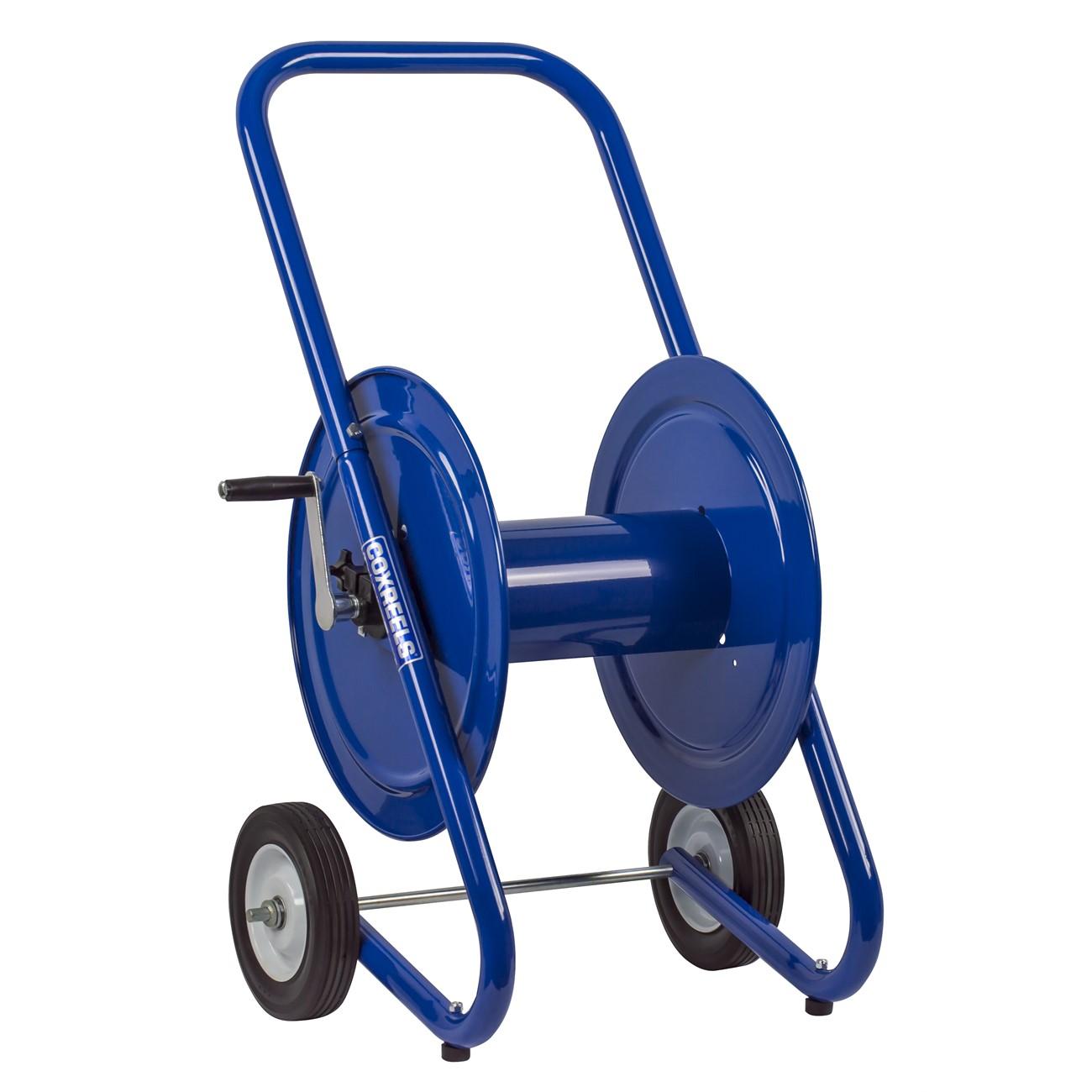

Coxreels 117-4-225-DM Dolly Mount Hose Reel 225 Ft

Product Description

The COXREELS 117-4-225-DM is a dolly-mount, hand-crank hose reel designed for trade professionals who need to move long hose runs between job sites without manual coiling. Part of the DM Series, it handles high-pressure applications rated to 4,000 psi and accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter up to 225 feet in length. The three-piece steel tube frame rides on solid 8 inch rubber tires, keeping the reel stable during transport across commercial and industrial job sites. A machined brass 90-degree full-flow NPT swivel allows hose installation without removing the reel from its mount, saving time during setup and breakdown.

The 117-4-225-DM suits plumbing, general contracting, and industrial maintenance applications where hose must travel frequently and handle sustained high-pressure service. The dolly-mount configuration is well suited to shop floors, service bays, and large commercial work sites where dragging or hand-coiling long hose lengths is impractical. An optional 4 inch inlet hose with 3/4 inch female fitting and male garden adapter is available for use with garden hose configurations in this series.

Key Features

• 4,000 psi pressure rating supports demanding commercial and industrial service
• Machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance without dismounting the reel
• Three-piece 1-1/4 inch steel tube frame with removable handle for compact storage
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• CPC powder coat finish resists chips and rust; solid 8 inch rubber tires and rubber front feet for stable mobility

Compatibility

Designed for use with hose measuring 1/2 inch inner diameter and 7/8 inch outer diameter up to 225 feet; compatible with an optional 4 inch inlet hose featuring a 3/4 inch female fitting and male garden adapter for garden hose applications in the DM Series.

Installation Notes

Installation and servicing of high-pressure hose reels should be performed by qualified trades personnel familiar with the applicable pressure ratings and connection standards. Shut off and bleed all pressure from the supply line before connecting or disconnecting hose or servicing the swivel. Verify that all NPT fittings are properly threaded and sealed before returning the system to service. Consult applicable OSHA and facility safety standards for high-pressure hose handling in commercial and industrial environments.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 225 feet
• Pressure Rating: 4,000 psi
• Frame Material: Steel
• Swivel Material: Solid brass
• Tire Size: 8 inches (solid rubber)
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 39 pounds
• UPC: 674255800496

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117-4-225-DM
