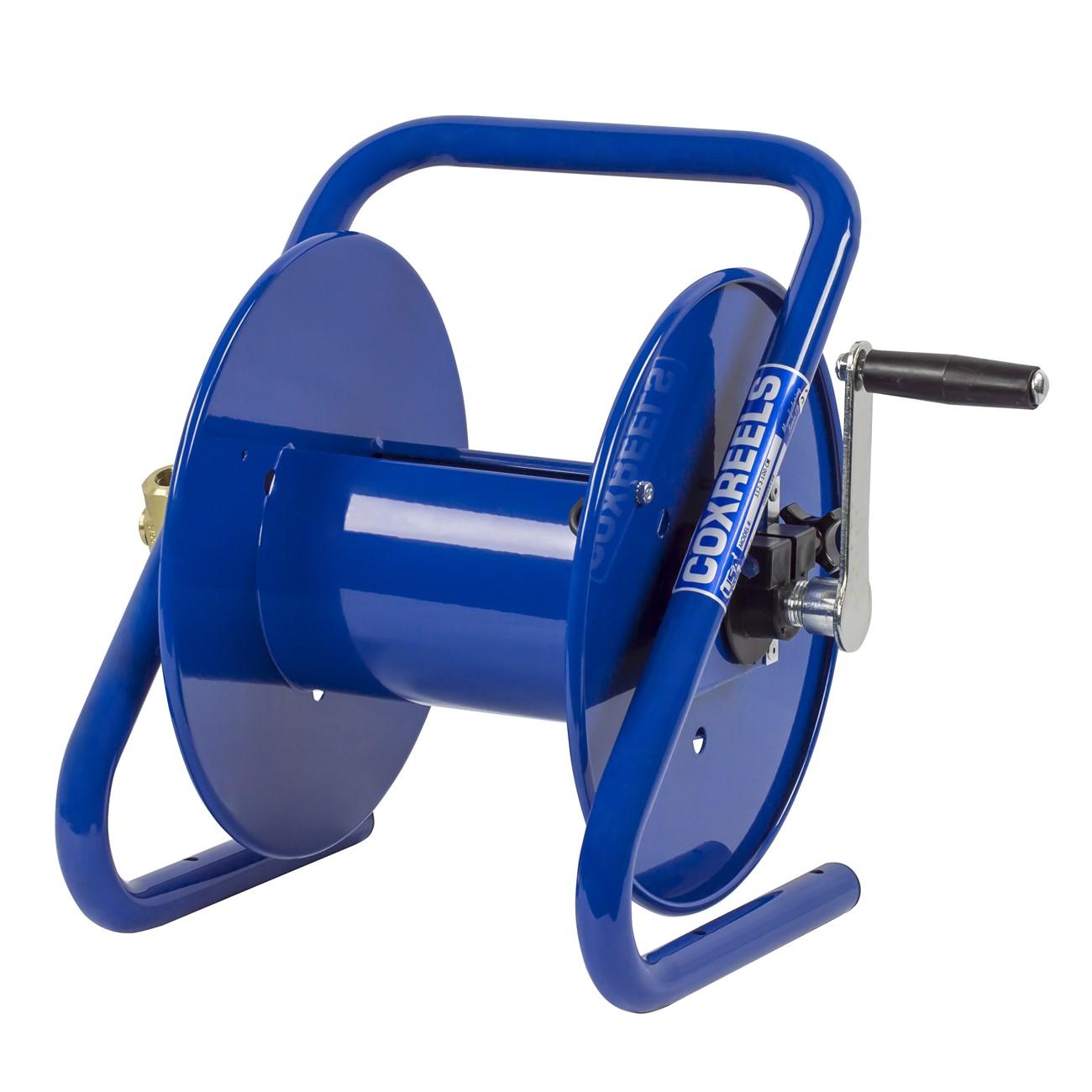

Coxreels 117-4-225-CM Hose Reel 1/2 in Id 225 Ft

Product Description

The COXREELS 117-4-225-CM is a CM Series Caddy Mount hand crank hose reel designed for portable, high-pressure hose management in commercial and industrial applications. Rated at 4,000 psi, it handles long hose runs without performance loss. The reel accepts 1/2 inch ID hose up to 225 feet in length and features a direct hand crank mechanism for controlled, manual retraction. A machined brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount. Licensed plumbers, HVAC technicians, and industrial service contractors install and operate this unit in field and shop environments.

The 117-4-225-CM is suited for long-run portable hose applications in commercial and industrial service settings. The caddy mount configuration places the reel on wheels, allowing a single technician to transport full hose loads across a job site without manually coiling or uncoiling. The adjustable tension brake controls draw speed and prevents free-wheeling during transport or storage, making it practical for both stationary and mobile work scenarios. The one-piece steel tube frame includes base mounting holes for temporary or permanent installation when portability is not required.

Key Features

• 4,000 psi pressure rating suitable for high-pressure service applications
• Machined solid brass 90-degree full-flow NPT swivel allows in-place hose installation and seal maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Adjustable tension brake controls retraction speed and prevents free-wheeling during operation, transport, or storage
• One-piece 1 inch steel tube frame with base holes for temporary or permanent mounting
• CPC powder coat finish provides chip resistance and rust inhibition for extended service life

Compatibility

Designed to accommodate 1/2 inch ID hose up to 225 feet in length. A 4 inch inlet hose with 3/4 inch female fitting and male garden adapter is available separately for use with standard garden hose connections.

Installation Notes

Installation and service should be performed by qualified tradespeople familiar with high-pressure hose systems. Depressurize and drain the hose assembly fully before connecting or disconnecting fittings. Verify that all NPT swivel connections are properly sealed to prevent pressure loss. When permanently mounting the base, follow applicable facility safety codes and ensure the mounting surface is rated for the combined weight of the reel and loaded hose.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 7/8 inch
• Hose Capacity: 225 feet
• Pressure Rating: 4,000 psi
• Frame Material: Steel
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 28 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117-4-225-CM
