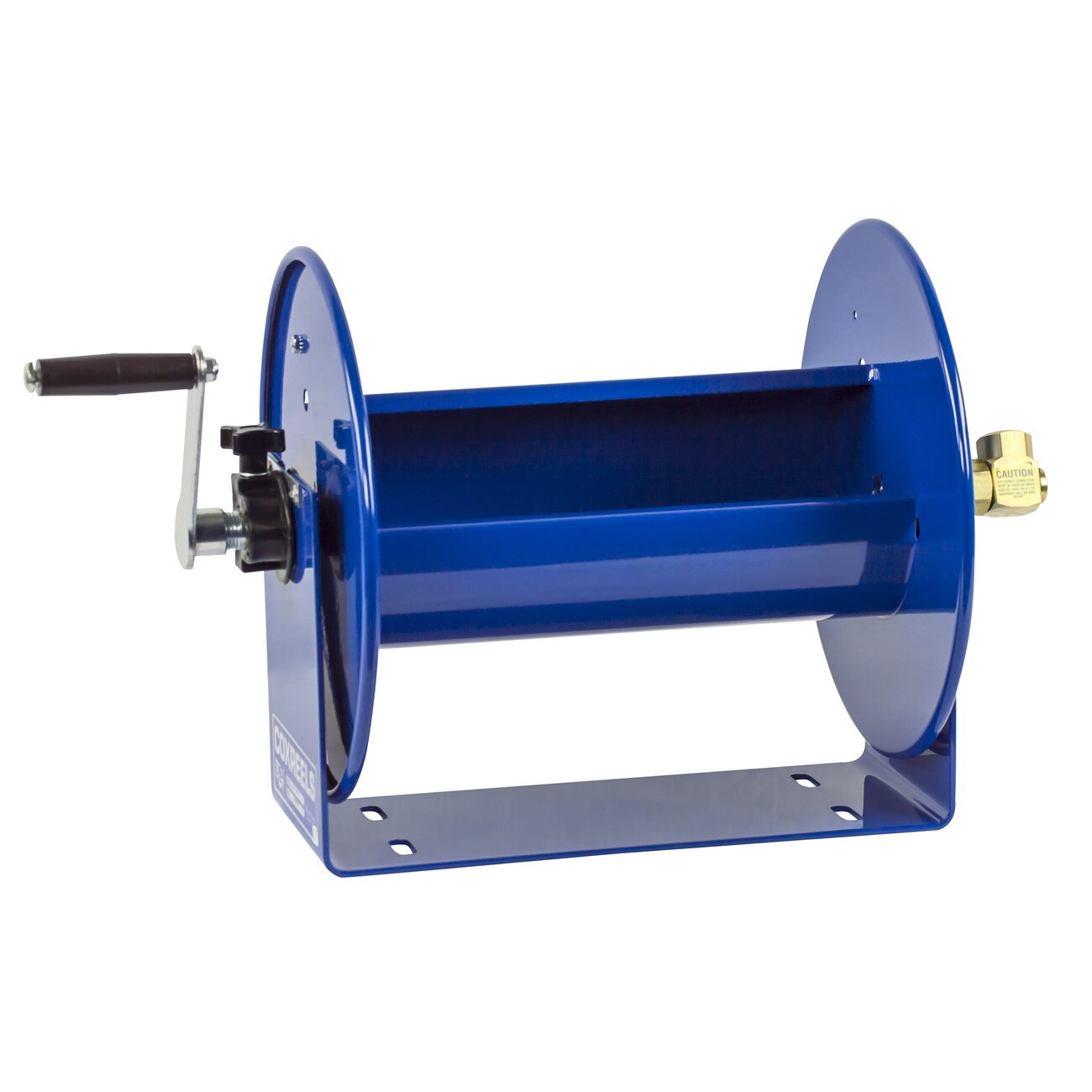

Coxreels 117-3-550 Hand Crank Hose Reel 550 Ft

Product Description

The COXREELS 117-3-550 is a hand crank hose reel from the 100 Series, built for demanding commercial and industrial applications where a compact, high-pressure reel is required. Constructed entirely from high-grade steel, this reel handles working pressures up to 4,000 psi and accommodates 550 feet of 3/8-inch ID hose. The unit ships without hose. A CPC powder coat finish resists chipping and rust for long service life in tough environments. HVAC, plumbing, and general-service contractors will find it equally at home in a shop or on a job site.

The 117-3-550 is suited for commercial and industrial settings where a high-capacity, high-pressure reel is needed. The compact U-shaped frame design keeps the footprint small enough for service vehicles and equipment rooms while still managing 550 feet of hose. This reel is appropriate for fluid transfer, pressure washing, and similar applications requiring a reliable mechanical retraction solution. All models in the 100 Series are supplied without hose, allowing the installer to match hose to the specific job requirement.

Key Features

• Rated for working pressures up to 4,000 psi
• Accommodates 550 feet of 3/8-inch ID hose
• Solid one-piece heavy-gauge steel U-shaped frame for structural rigidity
• Machined solid-brass 90-degree full-flow NPT swivel for easy seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• CPC powder coat finish resists chips and rust for extended service life

Compatibility

Designed as an OEM-style replacement or direct-fit hose reel for commercial and industrial fluid-handling systems requiring a 3/8-inch ID, hand crank reel rated to 4,000 psi.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified mechanical contractor. Before mounting, relieve all system pressure and isolate the fluid supply. Secure the reel to a structurally sound surface using fasteners appropriate for the mounting substrate. Verify that the hose and fittings selected are rated for the intended working pressure and fluid type before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 3/8 inch
• Hose Outside Diameter: 5/8 inch
• Hose Capacity: 550 feet
• Maximum Working Pressure: 4,000 psi
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 35 pounds
• Material: Steel
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• UPC: 674255800441

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117-3-550
