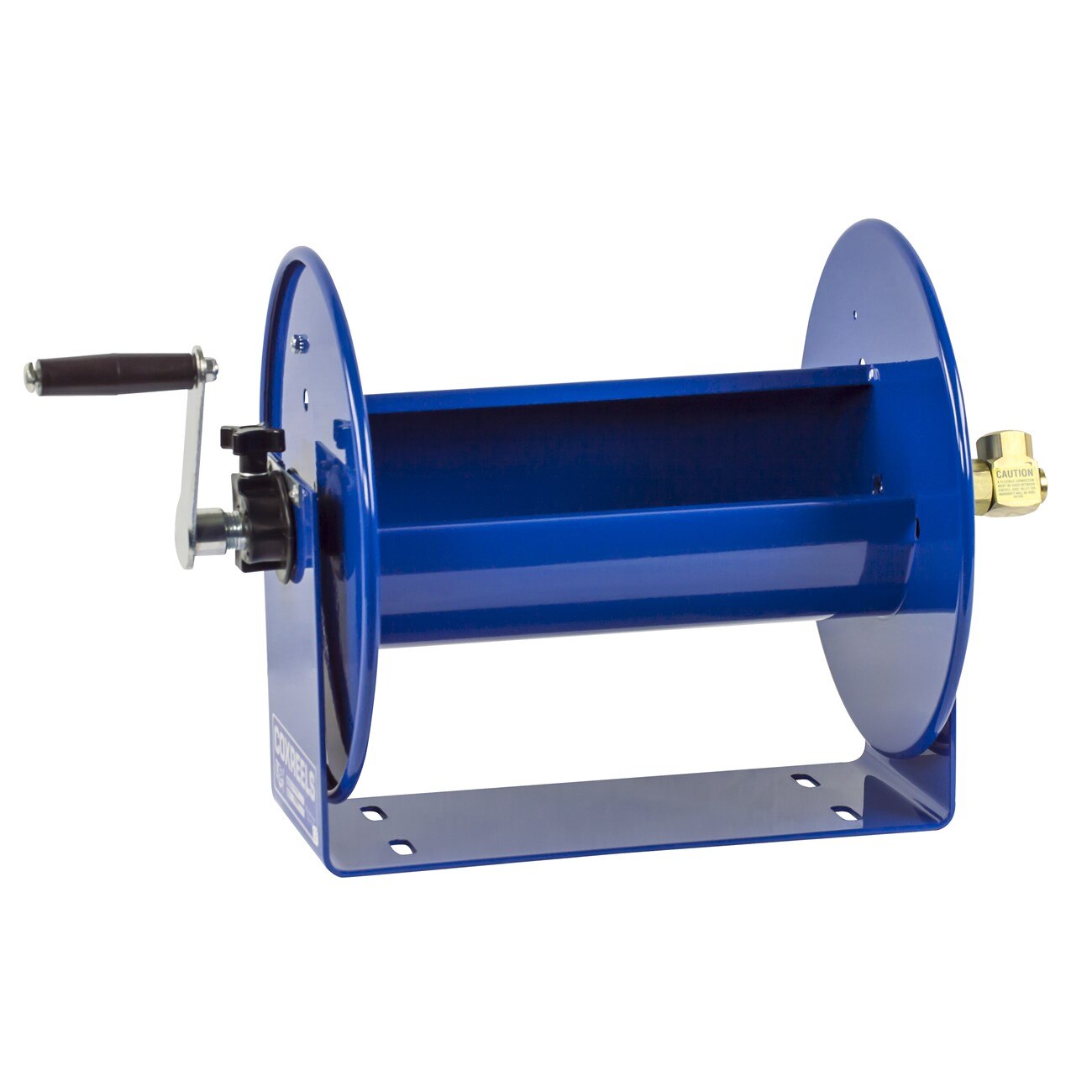

Coxreels 117-3-250 Hand Crank Hose Reel 250 Ft Steel

Product Description

The COXREELS 117-3-250 is a 100 Series hand crank hose reel built for demanding commercial and industrial applications. It accepts hose with a 3/8 inch inner diameter and 5/8 inch outer diameter, handling up to 250 feet of hose at working pressures up to 4,000 psi. The reel weighs 30 pounds and measures 19.5 inches long by 18 inches wide by 20 inches tall, making it a compact unit for its capacity. The all-steel U-shaped frame and CPC powder coat finish deliver the structural integrity required for heavy-duty field use. Licensed tradespeople and service technicians working in pressure washing, fluid transfer, or similar high-pressure hose applications are the primary installers.

The 117-3-250 is suited for commercial and industrial environments where a reliable, manually operated hose reel is needed at fixed or semi-permanent stations. Typical installations include service bays, fleet maintenance facilities, industrial plants, and contractor work vehicles. The unit ships without hose, so technicians source compatible 3/8 inch ID hose separately to complete the assembly. Its compact footprint allows wall mounting or frame mounting in tight spaces without sacrificing capacity.

Key Features

• Rated working pressure up to 4,000 psi for high-pressure fluid and air service
• Accepts 3/8 inch ID, 5/8 inch OD hose up to 250 feet in length
• Solid one-piece heavy-gauge steel U-shaped frame for structural rigidity
• Machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed as an OEM-style replacement or new-installation reel for commercial and industrial hose management systems requiring 3/8 inch ID hose connections at pressures up to 4,000 psi. Unit is supplied without hose.

Installation Notes

Installation should be performed by a qualified technician familiar with high-pressure fluid or pneumatic systems. Depressurize and disconnect all supply lines before mounting or servicing the reel. Secure the reel to a structurally sound mounting surface using appropriate hardware rated for the load. Verify all NPT swivel fittings are properly sealed before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Capacity: 250 feet
• Maximum Working Pressure: 4,000 psi
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 30 pounds
• Frame Material: Steel
• Finish: CPC powder coat
• Swivel Material: Brass
• UPC: 674255800366

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117-3-250
