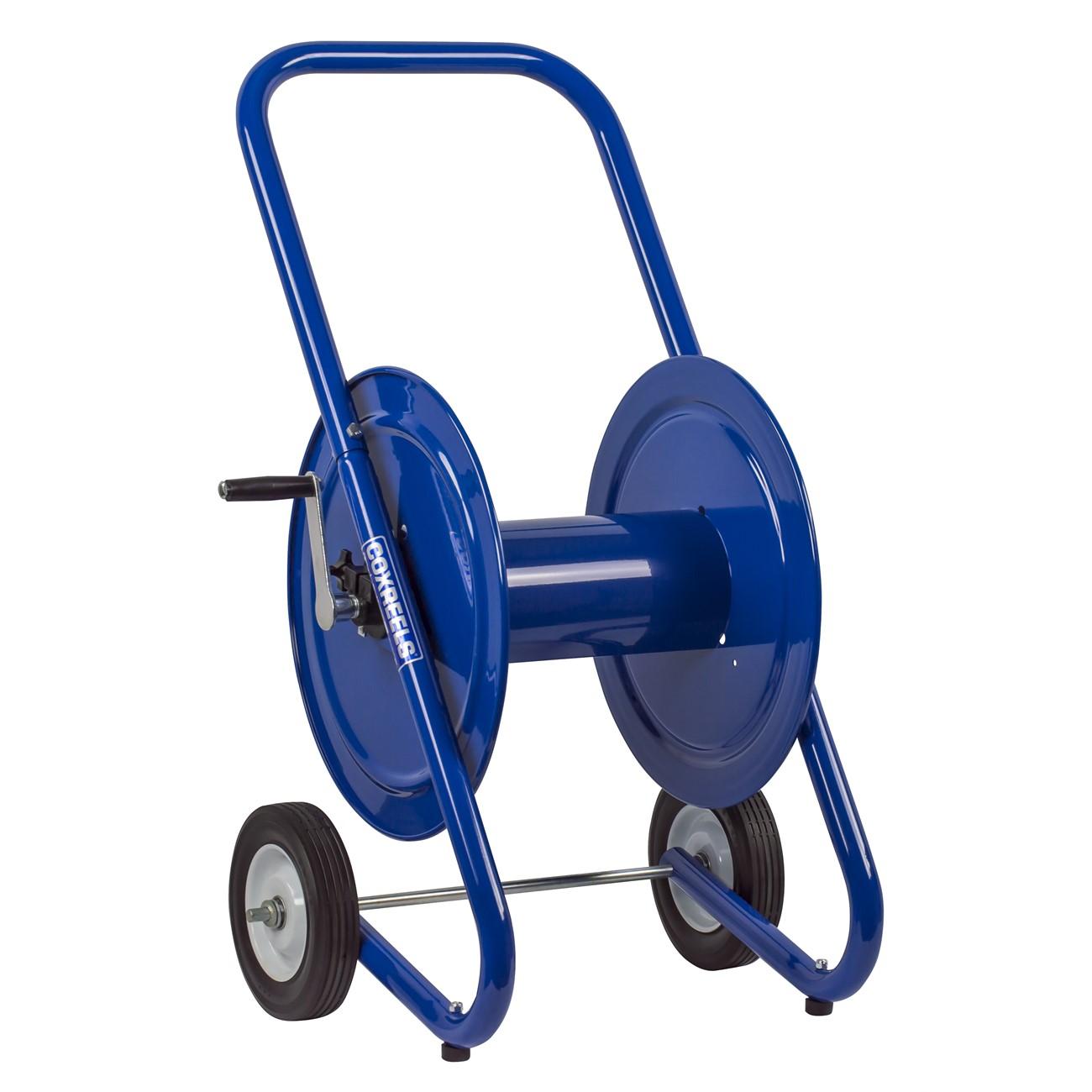

Coxreels 117-3-200-DM Dolly Mount Hose Reel 3/8 in 200 Ft

Product Description

The COXREELS 117-3-200-DM is a dolly-mount, hand-crank hose reel built for job sites that demand portability without sacrificing pressure capacity. Rated to 4,000 psi, it handles high-pressure applications in commercial and industrial environments. The reel accommodates 3/8 inch ID hose up to 200 feet in length, eliminating the need to manually coil or uncoil hose at the start and end of each job. A solid rubber-tired dolly frame lets technicians roll the loaded reel directly to the work area. The three-piece steel tube frame, CNC-spun ribbed discs, and CPC powder coat finish are designed for repeated heavy-duty use. Installation and operation are handled by any trade professional who works with compressed air, fluid transfer, or similar hose-fed systems.

The 117-3-200-DM is suited for commercial and industrial settings where long hose runs are common and compact storage between uses is a priority. The dolly mount design makes it practical for service vehicles, shop floors, and field work where the reel must move from one location to another. The adjustable tension brake gives the operator control over retraction speed and prevents free-wheeling during transport or storage. A direct hand crank provides straightforward mechanical retraction without requiring power. The machined brass swivel allows hose installation and seal maintenance without removing the reel from its mount.

Key Features

• 4,000 psi pressure rating suitable for high-pressure fluid and air applications
• Accommodates 3/8 inch ID hose up to 200 feet in length
• Dolly mount with solid 8 inch rubber tires for job-site portability
• Machined solid brass 90-degree full-flow NPT swivel for easy seal maintenance
• Adjustable tension brake controls retraction speed and prevents free-wheeling
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Long-lasting CPC powder coat finish — chip resistant and rust inhibiting

Compatibility

Designed for use with 3/8 inch ID hose up to 200 feet. Part of the COXREELS DM Series dolly-mount hand-crank hose reel line built for commercial and industrial hose management applications.

Installation Notes

Hose reel installation and connection should be performed by a qualified technician familiar with the applicable fluid or air system. Depressurize and shut off the supply line before connecting or disconnecting hose fittings. Verify that all NPT swivel fittings are properly threaded and sealed before returning the system to operating pressure. Removable handles allow for compact storage when the reel is not in use.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Length: 200 feet
• Pressure Rating: 4,000 psi
• Mount Type: Dolly Mount
• Frame Construction: 1-1/4 inch steel tube, three-piece
• Swivel Material: Solid brass, machined
• Tire Size: 8 inches, solid rubber
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 37 pounds
• UPC: 674255800342

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117-3-200-DM
