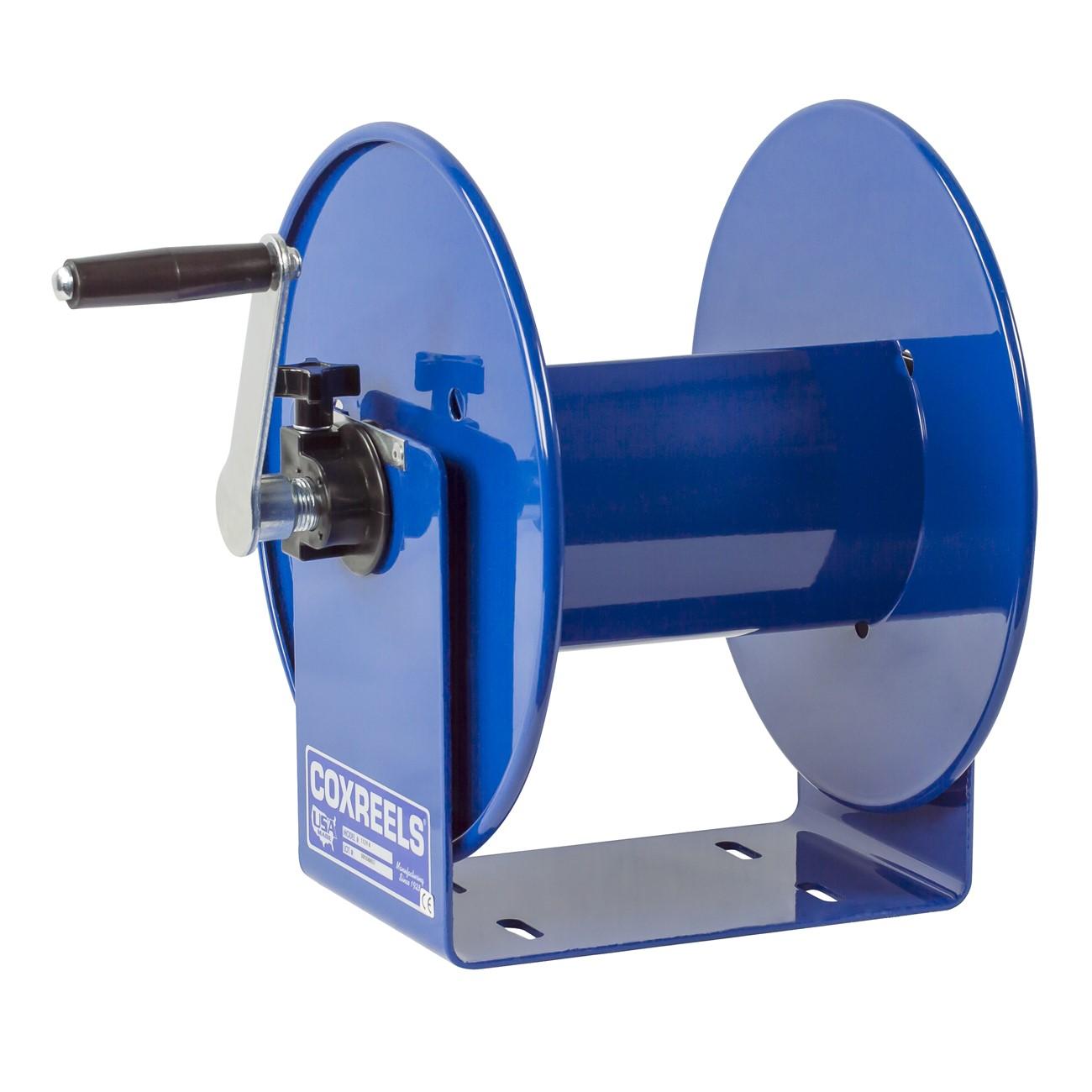

Coxreels 112Y-8 Hand Crank Storage Hose Reel Steel

Product Description

The COXREELS 112Y-8 is a hand crank driven hose and cord storage reel built for commercial and industrial service environments. The reel features an all-steel U-shaped one-piece frame with CNC robotically spun and ribbed discs rolled at the edges for added strength and operator safety. An open drum design allows pass-through routing of hose, cord, or cable without disassembly. At 14 pounds, the 112Y-8 is compact enough for portable use while remaining durable enough for heavy-duty daily service. Licensed tradespeople and service contractors in HVAC, plumbing, electrical, and general mechanical trades use this reel to organize and protect hose or cord runs on the job site.

The 112Y-8 is suited for residential and commercial service applications where fast, controlled hose or cord retrieval is required. The adjustable tension brake gives the operator direct control over draw speed and prevents free-wheeling during operation, transport, or storage. The reel ships without hose or cord, making it a flexible fit for shops and field service trucks that already stock their preferred line. Its compact footprint, measuring 16.5 inches long by 12.5 inches wide by 13.5 inches tall, fits standard van shelving and tool storage configurations.

Key Features

• U-shaped one-piece heavy-gauge all-steel frame for strength and portability
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Open drum design allows easy pass-through of any hose, cord, or cable type
• Adjustable tension brake controls draw speed and prevents free-wheeling
• CPC powder coat finish resists chipping, rust, and long-term wear
• Control bar keeps hose, cord, or cable seated on the disc during use
• Direct hand crank for mechanical retraction without powered components

Compatibility

Designed as an OEM-style storage reel for use with a wide range of hose, cord, and cable types in commercial and industrial service applications. Supplied less hose or cord.

Installation Notes

Mount the reel to a secure surface, wall bracket, or vehicle shelving using appropriate fasteners rated for the combined weight of the reel and loaded hose or cord. Power down or depressurize any connected line before attaching or detaching hose. Thread the hose or cord through the open drum port before securing to the reel drum. Follow applicable site safety and OSHA guidelines when mounting in elevated or mobile service environments.

Technical Specifications

• Drive Type: Hand Crank
• Frame Style: U-Shaped One-Piece
• Material: Steel
• Finish: CPC Powder Coat
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 14 pounds
• Supplied With Hose or Cord: No
• UPC: 674255843585

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112Y-8
