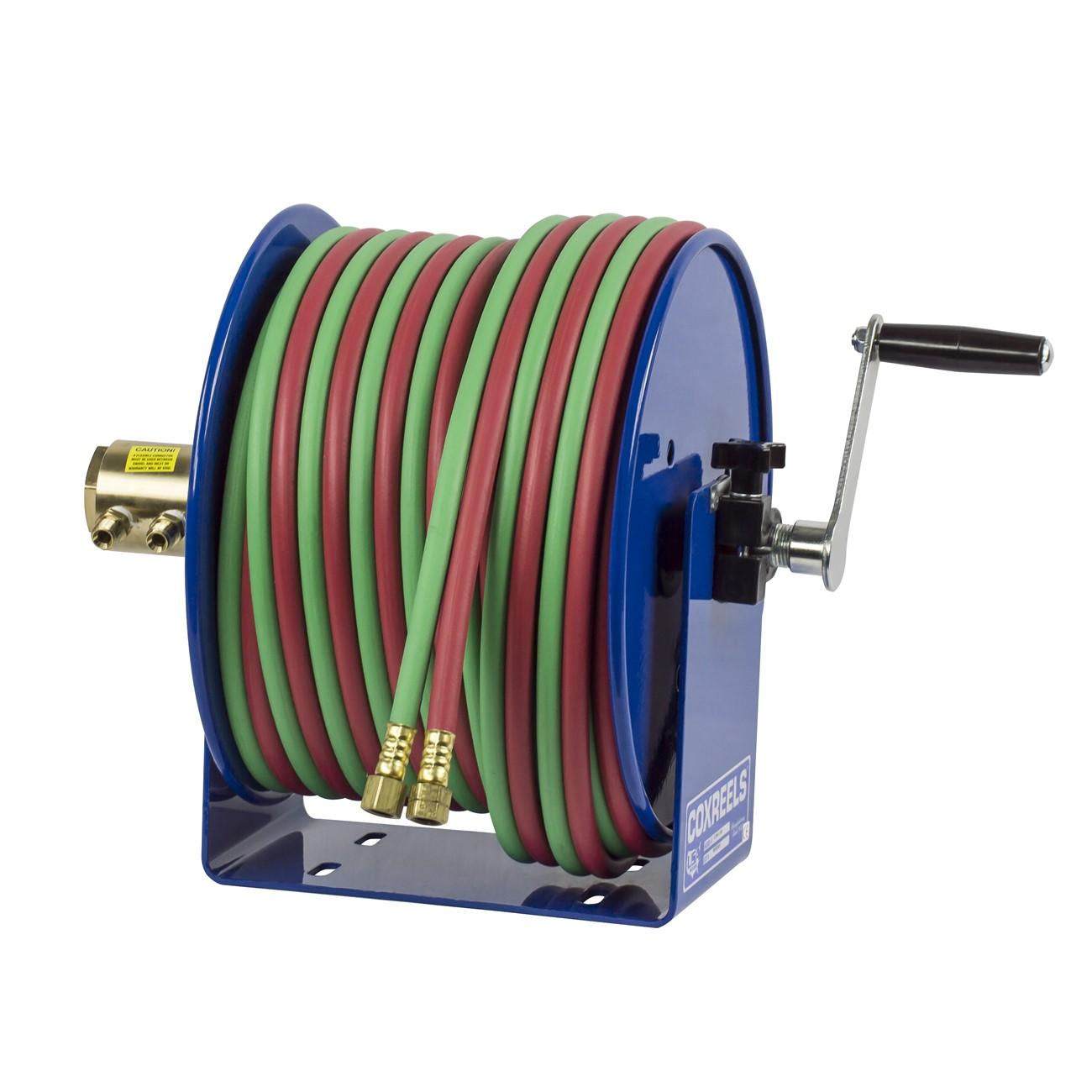

Coxreels 112WT-1-50 Welding Hose Reel 1/4 in 50 Ft Steel

Product Description

The COXREELS 112WT-1-50 is a hand crank welding gas hose reel from the 100W Series, built for commercial and industrial environments where compact size, durability, and reliable gas flow management are required. The reel features a one-piece heavy-gauge all-steel U-shaped frame measuring 16.5 inches long, 12.5 inches wide, and 13.5 inches tall, and weighs 28 pounds. It accepts 1/4 inch ID hose up to 50 feet and is supplied without hose. Licensed trades including welders, pipefitters, and industrial maintenance technicians are the primary installers and operators of this unit.

The 112WT-1-50 is designed for welding gas supply applications in commercial shops, fabrication facilities, and industrial job sites. Its external dual-ported brass swivel allows both inlet and outlet connections to remain accessible from the same side of the reel, eliminating the need to dismount the unit during connection changes. The direct hand crank provides controlled mechanical retraction, and the adjustable tension brake regulates spool speed during payout, retraction, transport, and storage. This reel is well suited to fixed wall or bench mounting in production and maintenance settings.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals keeps both gas connections on the same side of the reel
• One-piece heavy-gauge all-steel U-shaped frame provides rigid, compact support without multi-part assembly
• CNC robotically spun and ribbed steel discs with rolled edges add strength, protect hose, and reduce operator injury risk
• Adjustable tension brake controls payout speed and prevents free-wheeling during operation, transport, or storage
• CPC powder coat finish resists chips and rust for long service life in harsh environments
• Composite bearing supports smooth rotation; direct hand crank enables easy mechanical retraction

Compatibility

Designed as an OEM-style welding gas hose reel for use with 1/4 inch ID hose in commercial and industrial welding gas supply systems. Unit is supplied less hose.

Installation Notes

Installation is typically performed by a qualified welder, pipefitter, or industrial maintenance technician. Shut off all gas supply valves and verify zero pressure at the reel before making or breaking any connections. Mounting hardware selection should account for the loaded weight of the reel and hose; consult applicable facility and OSHA guidelines for overhead or wall-mounted equipment. Inspect swivel seals and hose connections for leaks using an approved leak detection solution after placing the system back into service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Capacity: 50 feet
• Frame Length: 16.5 inches
• Frame Width: 12.5 inches
• Frame Height: 13.5 inches
• Weight: 28 pounds
• Material: Steel
• Swivel Material: Brass with Viton seals
• Finish: CPC powder coat
• Retraction Method: Hand crank
• Sold As: Each, less hose

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112WT-1-50
