Coxreels 112WT-1-100 Welding Hose Reel 1/4 in 100 Ft

Product Description

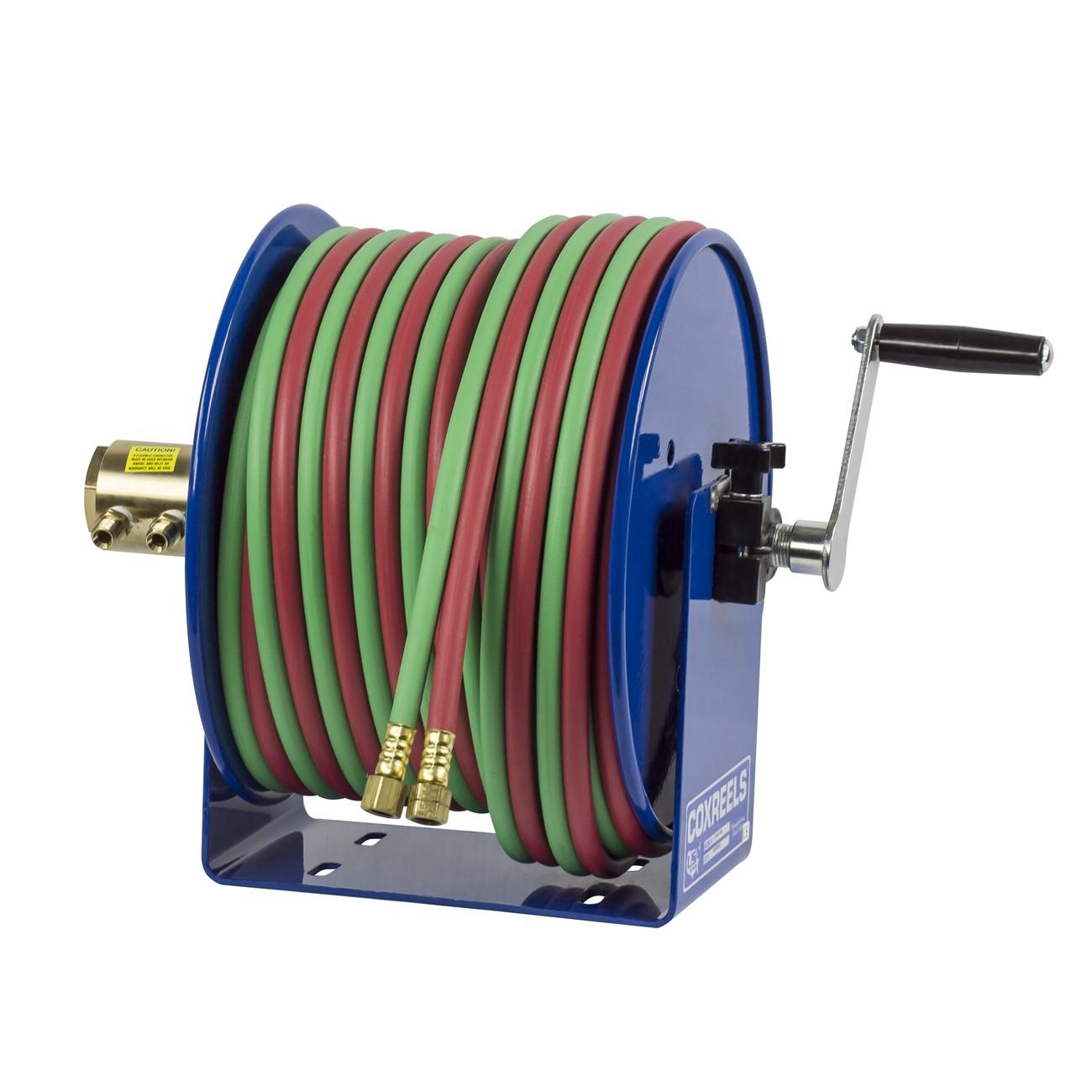

The COXREELS 112WT-1-100 is a hand crank welding gas hose reel from the 100W Series, designed for use with oxygen, acetylene, and other welding gas lines in commercial and industrial environments. Built on a one-piece heavy-gauge steel U-shaped frame, this reel accepts 1/4 inch ID hose up to 100 feet in length and retracts via a direct hand crank mechanism. Key features include an external 90-degree dual-ported brass swivel with Viton seals and CNC-spun ribbed steel discs. The unit weighs 37 pounds and measures 16.5 inches long by 12.5 inches wide by 13.5 inches tall. Supplied less hose.

The 112WT-1-100 is suited for welding shops, fabrication facilities, and industrial job sites where a compact, wall- or bench-mounted gas hose management solution is needed. The dual-ported swivel allows both inlet and outlet connections to route from the same side of the reel, eliminating the need to dismount the reel for line access. An adjustable tension brake controls payout speed and prevents free-wheeling during storage or transport. The CPC powder coat finish resists chipping and rust, making this reel appropriate for demanding shop environments. All models in this series are sold without hose.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections on the same side of the reel
• One-piece heavy-gauge all-steel U-shaped frame for compact, lightweight rigidity
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation or storage
• Direct hand crank provides reliable mechanical retraction without a rewind spring
• CPC powder coat finish — chip resistant and rust inhibiting for long service life

Compatibility

Designed as an OEM-style welding gas hose reel accepting 1/4 inch ID hose up to 100 feet; intended for use with welding gas supply lines in commercial and industrial installations. Sold without hose.

Installation Notes

Installation is typically performed by a qualified technician familiar with welding gas distribution systems. Shut off all gas supply valves and depressurize the lines before connecting or disconnecting fittings. Secure the reel to a structurally adequate wall, post, or bench mount using hardware appropriate for the load. Verify all swivel and hose connections for leaks after installation before returning the system to service.

Technical Specifications

• Hose ID: 1/4 inch
• Maximum Hose Length: 100 feet
• Retraction Type: Hand crank
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Frame Material: Steel
• Finish: CPC powder coat
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 37 pounds
• UPC: 674255735293

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112WT-1-100
