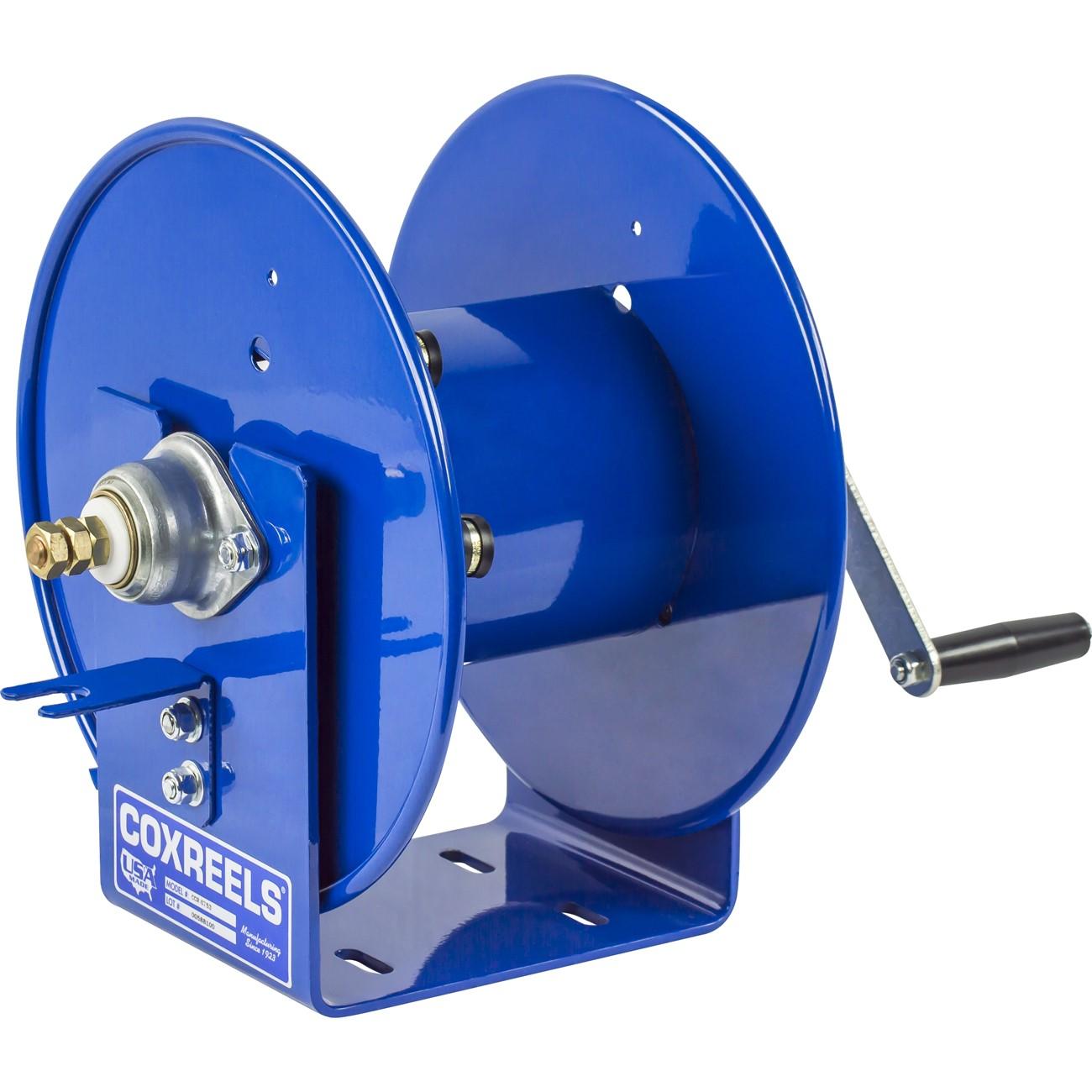

Coxreels 112WCL-6-20 Cable Reel Hand Crank Steel

Product Description

The COXREELS 112WCL-6-20 is a compact, hand crank cable reel built for electrode and grounding lead applications in commercial and industrial environments. Part of the 100WCL Series, it features an all-steel U-shaped frame, CNC robotically spun and ribbed disc heads, and a drum-located slip ring assembly that allows routine maintenance without removing the reel from its mount. At 19 pounds and a footprint of 16.5 inches by 12.5 inches by 13.5 inches, this reel balances durability with portability. It is supplied less cable. Licensed electricians and industrial maintenance technicians are the primary installers.

This reel is suited for residential service work, commercial facilities, and industrial job sites where organized cable management reduces hazards and speeds up task completion. The 100WCL Series is designed for electrode and grounding lead service, making it a practical fit for electrical contractors and maintenance crews that need a reliable, fixed or portable cable storage solution. The adjustable tension brake and direct hand crank drive make manual retraction straightforward without requiring power tools or external mechanisms.

Key Features

• Drum-located slip ring assembly with removable access panel for on-mount maintenance
• One-piece heavy-gauge all-steel U-shaped frame for structural rigidity
• CNC robotically spun and ribbed disc heads with rolled edges for strength and operator safety
• Self-lubricated bronze spherical bearings at each drum end for smooth, heavy-duty rotation
• Adjustable tension brake prevents free-wheeling during deployment
• CPC powder coat finish resists chips and rust for extended service life

Compatibility

Designed as an OEM-style cable reel for electrode and grounding lead applications in commercial and industrial electrical service settings. Supplied less cable — compatible cable must be sourced separately per application requirements.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial maintenance technician. Before mounting or servicing the reel, de-energize all associated circuits in accordance with NFPA 70E lockout/tagout procedures. Mount to a stable surface capable of supporting the reel and the weight of a fully loaded cable. The slip ring assembly access panel can be removed for routine maintenance without dismounting the reel from its installed position.

Technical Specifications

• Drive Type: Hand Crank
• Frame Material: Steel
• Series: 100WCL
• Height: 13.5 inches
• Width: 12.5 inches
• Length: 16.5 inches
• Weight: 19 pounds
• Sold As: Each, supplied less cable
• UPC: 674255842496

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112WCL-6-20
