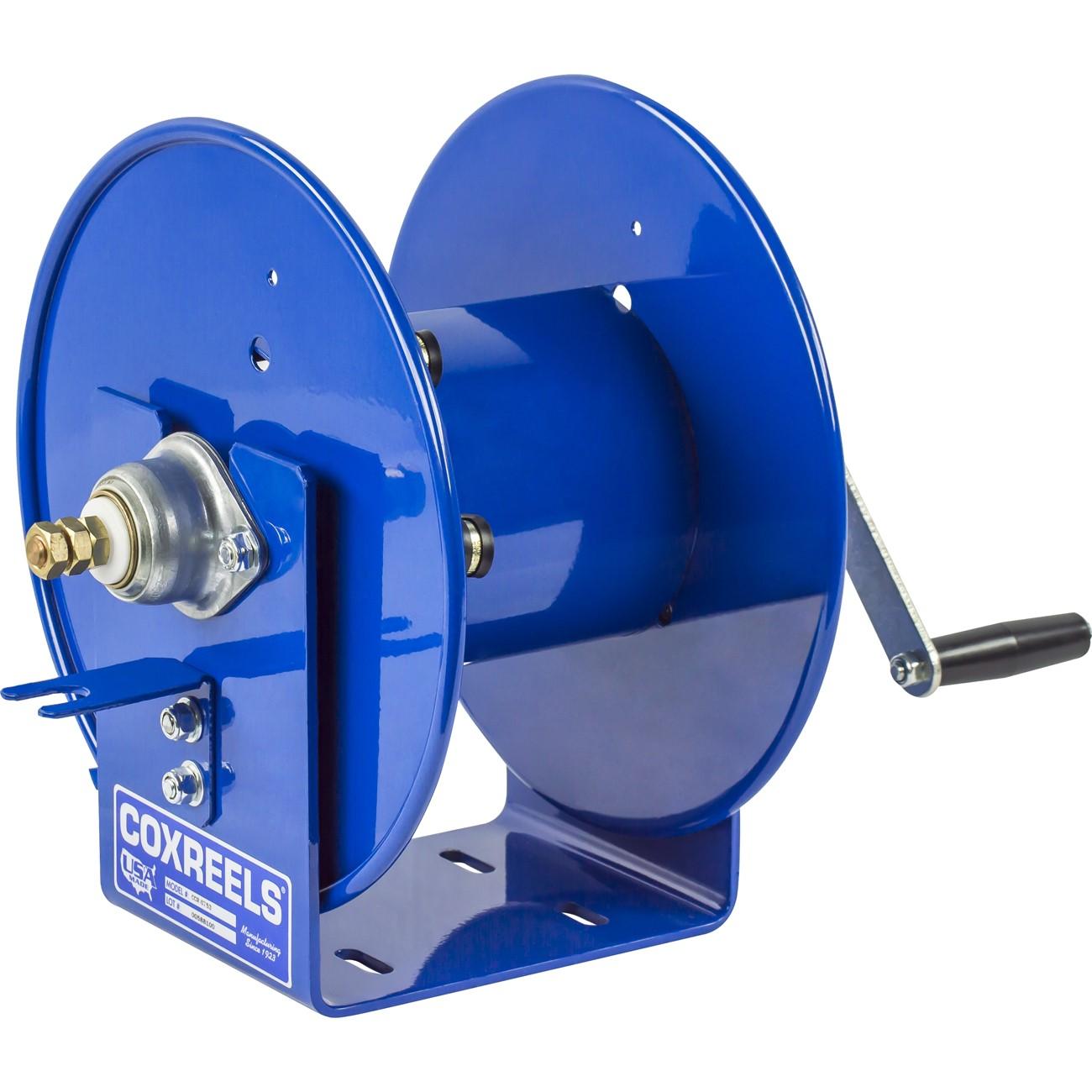

Coxreels 112WCL-6-10 Cable Reel 100 Ft Hand Crank Steel

Product Description

The COXREELS 112WCL-6-10 is a hand crank cable reel from the 100WCL Series, built for electrode and grounding lead applications in commercial and industrial environments. Constructed from high-quality steel with a U-shaped one-piece frame, this reel handles heavy-duty use while staying compact and lightweight. The drum-mounted slip ring assembly provides reliable electrical continuity during operation. A CPC powder coat finish resists chipping and rust for long service life. Licensed electricians and industrial maintenance technicians are the primary installers of this reel. All listed models are supplied less cable.

This reel is suited for grounding and electrode lead management in commercial and industrial settings where a durable, compact reel is needed at a fixed or semi-permanent mount point. The direct hand crank drive allows controlled, mechanical retraction without requiring a power source. The adjustable tension brake prevents free-wheeling during payout, keeping cable managed and reducing trip hazards on the job site.

Key Features

• Drum-located slip ring assembly with removable access panel for routine maintenance without removing the reel from its mount
• One-piece heavy-gauge steel U-shaped frame — compact, lightweight, and professional grade
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Self-lubricated bronze spherical bearings at each drum end for trouble-free rotation under heavy-duty loads
• Adjustable tension brake prevents free-wheeling during cable payout
• Chip-resistant, rust-inhibiting CPC powder coat finish for long-term durability in demanding environments

Compatibility

Designed as an OEM-style cable reel for electrode and grounding lead applications in commercial and industrial installations. Supplied less cable — compatible cable must be selected separately based on application requirements.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial maintenance technician. Disconnect and de-energize all circuits before mounting or servicing this reel. Secure the reel to a stable surface using appropriate hardware for the mounting substrate. Follow all applicable NEC requirements for grounding and bonding connections at the slip ring terminals.

Technical Specifications

• Cable Capacity: 100 feet
• Drive Type: Hand Crank
• Frame Material: Steel
• Bearing Type: Self-Lubricated Bronze Spherical
• Finish: CPC Powder Coat
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 19 pounds
• UPC: 674255842489

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112WCL-6-10
