Coxreels 112WCL-6-02 Cable Reel 165 Ft Hand Crank Steel

Product Description

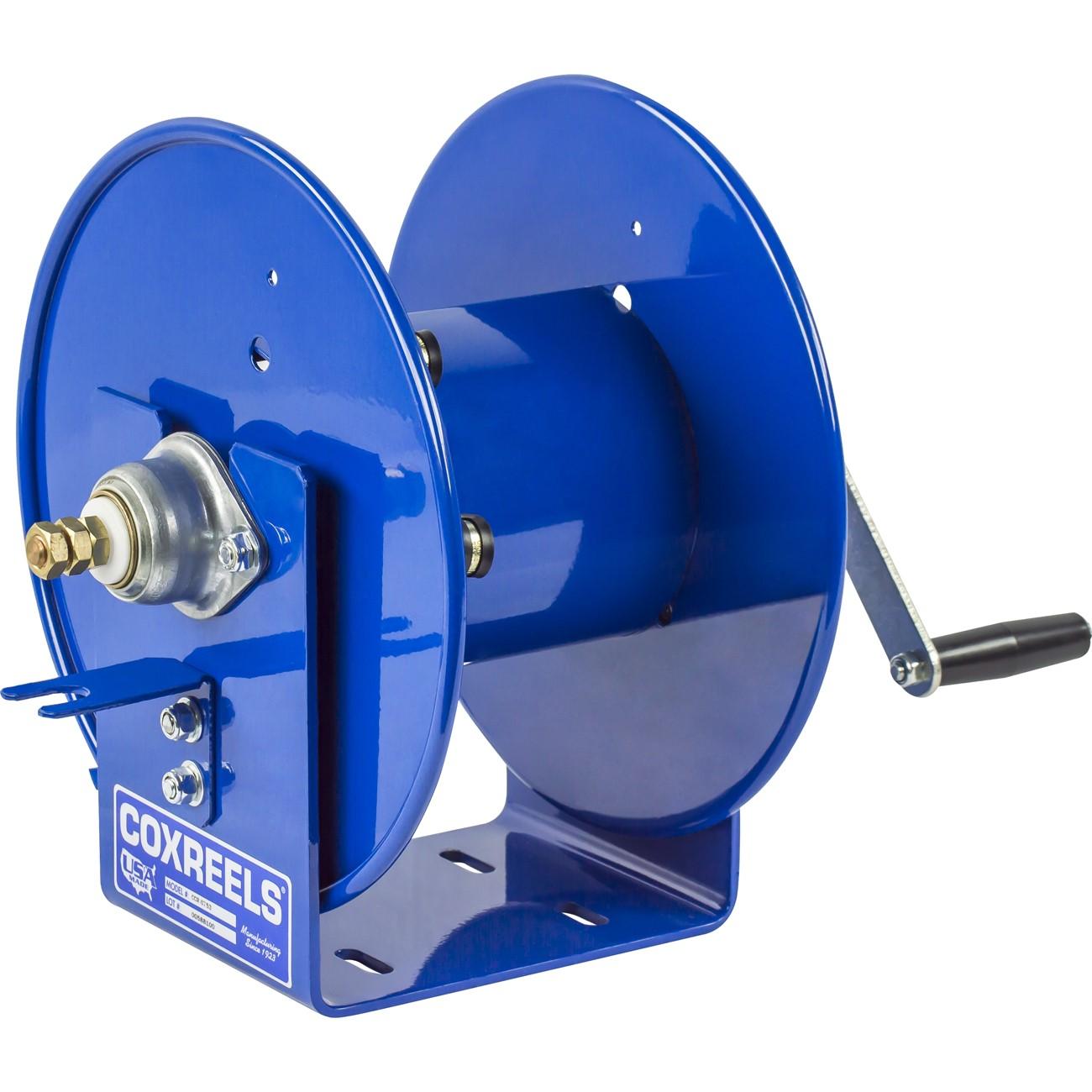

The COXREELS 112WCL-6-02 is a compact, hand-crank cable reel from the 100WCL Series, built for electrode and grounding lead applications in commercial and industrial environments. All-steel construction and a one-piece U-shaped frame give this reel the structural rigidity needed for heavy-duty service cycles. Key specs include a 165-foot cable capacity, manual hand-crank retraction, and a drum-located slip ring assembly for reliable electrical continuity during use. A CPC powder coat finish resists chipping and rust. This reel is supplied without cable and is sold individually.

The 112WCL-6-02 is well suited for commercial and industrial job sites where grounding leads and electrode cables need organized, repeatable storage and deployment. The hand-crank drive makes it practical in locations without power-retract infrastructure. Its compact footprint and lightweight steel frame allow mounting in tight service bays, utility rooms, or on mobile carts. Electricians and industrial maintenance techs are the primary installers of this reel type.

Key Features

• Drum-located slip ring assembly with removable access panel for routine maintenance without dismounting the reel
• Solid one-piece heavy-gauge steel U-shaped frame for a compact, rigid platform
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength and operator safety
• Self-lubricated bronze spherical bearings at each drum end for trouble-free rotation under load
• Adjustable tension brake prevents free-wheeling during cable deployment
• CPC powder coat finish provides long-lasting chip resistance and rust inhibition

Compatibility

Designed as an OEM-style replacement or direct-use reel for electrode and grounding lead cable applications in commercial and industrial settings. Supplied less cable — cable must be sourced and installed separately.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial maintenance technician. Power down and lock out all circuits connected to grounding leads before mounting or servicing this reel. Secure the mounting surface to a structure rated for the combined load of the reel, cable, and any dynamic tension. Follow applicable NEC requirements for grounding and bonding conductor installations.

Technical Specifications

• Cable Capacity: 165 ft
• Drive Type: Hand Crank
• Frame Material: Steel
• Bearing Type: Self-Lubricated Bronze Spherical
• Finish: CPC Powder Coat
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 19 pounds
• Sold As: Each, Less Cable

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112WCL-6-02
