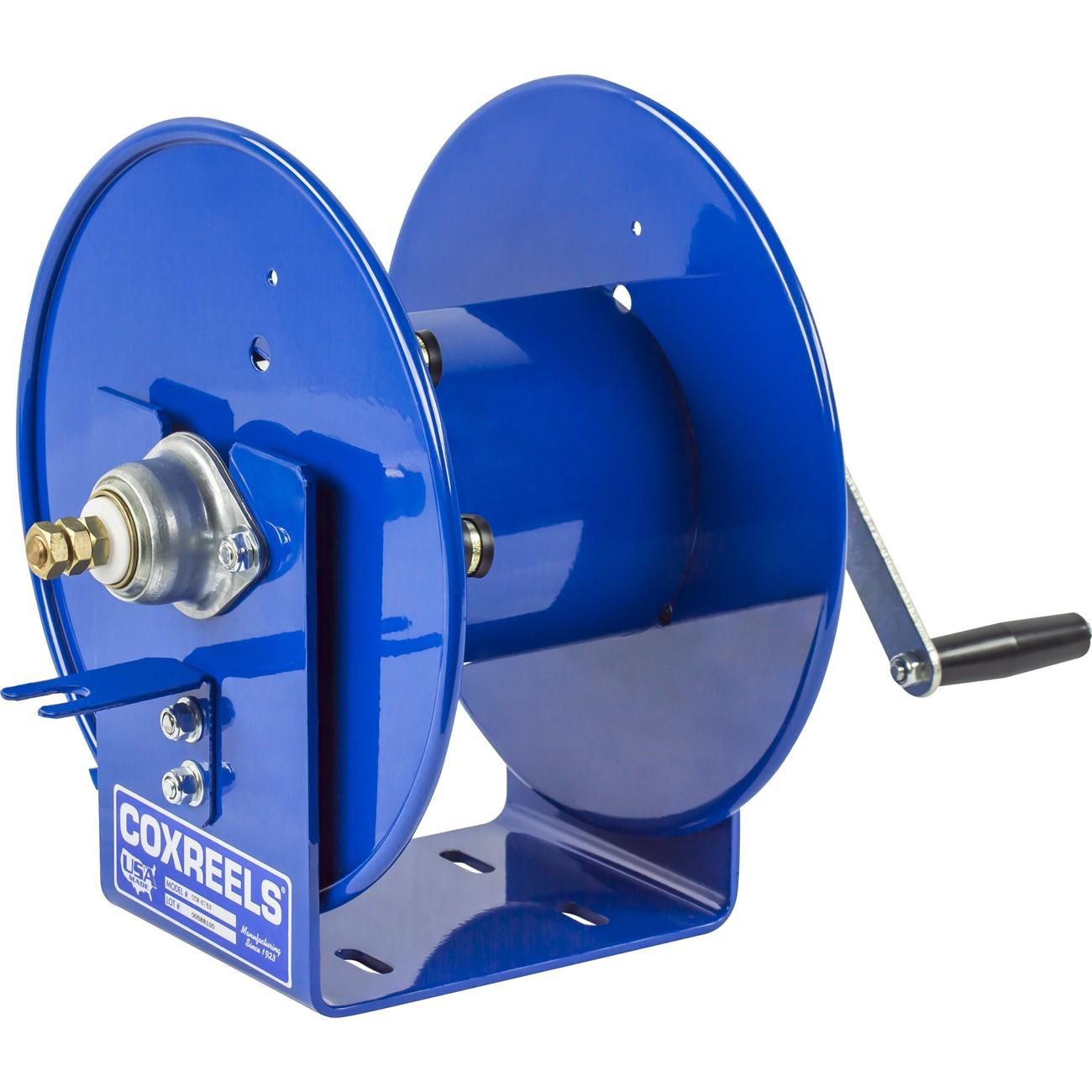

Coxreels 112WCL-6-01 Cable Reel 150 Ft Hand Crank Steel

Product Description

The COXREELS 112WCL-6-01 is a compact, hand-crank cable reel built for electrode and grounding lead applications in commercial and industrial environments. Part of the 100WCL Series, it features an all-steel, one-piece U-shaped frame and CNC robotically spun ribbed discs with rolled edges for strength and operator safety. The drum-located slip ring assembly includes a removable access panel, so routine maintenance can be completed without pulling the reel from its mount. Licensed electricians and industrial service technicians are the primary installers. The reel ships without cable, allowing techs to load their own lead to fit the job.

This reel is suited for stationary and semi-portable installations where organized cable management reduces trip hazards and speeds up setup. The 100WCL Series targets industrial service bays, commercial construction sites, and maintenance facilities that require reliable grounding lead storage. The hand-crank drive provides controlled, mechanical retraction without relying on a spring or motor. At 19 pounds and with a footprint of 16.5 inches by 12.5 inches by 13.5 inches, it fits in tight service areas without sacrificing durability.

Key Features

• Drum-located slip ring assembly with removable panel for maintenance without dismounting the reel
• One-piece heavy-gauge all-steel U-shaped frame for structural rigidity and compact footprint
• CNC robotically spun ribbed discs with rolled edges for disc strength and cable protection
• Self-lubricated bronze spherical bearings at each drum end for smooth, trouble-free rotation
• Adjustable tension brake prevents free-wheeling during cable deployment
• CPC powder coat finish resists chipping, rust, and corrosion in demanding environments

Compatibility

Designed as an OEM-style fit within the COXREELS 100WCL Series for electrode and grounding lead cable management applications. All listed models are supplied without cable.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial maintenance technician. Disconnect and de-energize all circuits before mounting the reel or connecting grounding leads. Secure the U-frame to a stable mounting surface using hardware rated for the application load. Follow applicable NEC requirements for grounding and bonding connections.

Technical Specifications

• Series: 100WCL
• Drive Type: Hand Crank
• Frame Material: Steel
• Cable Capacity: 150 ft
• Weight: 19 pounds
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• UPC: 674255844063

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112WCL-6-01
