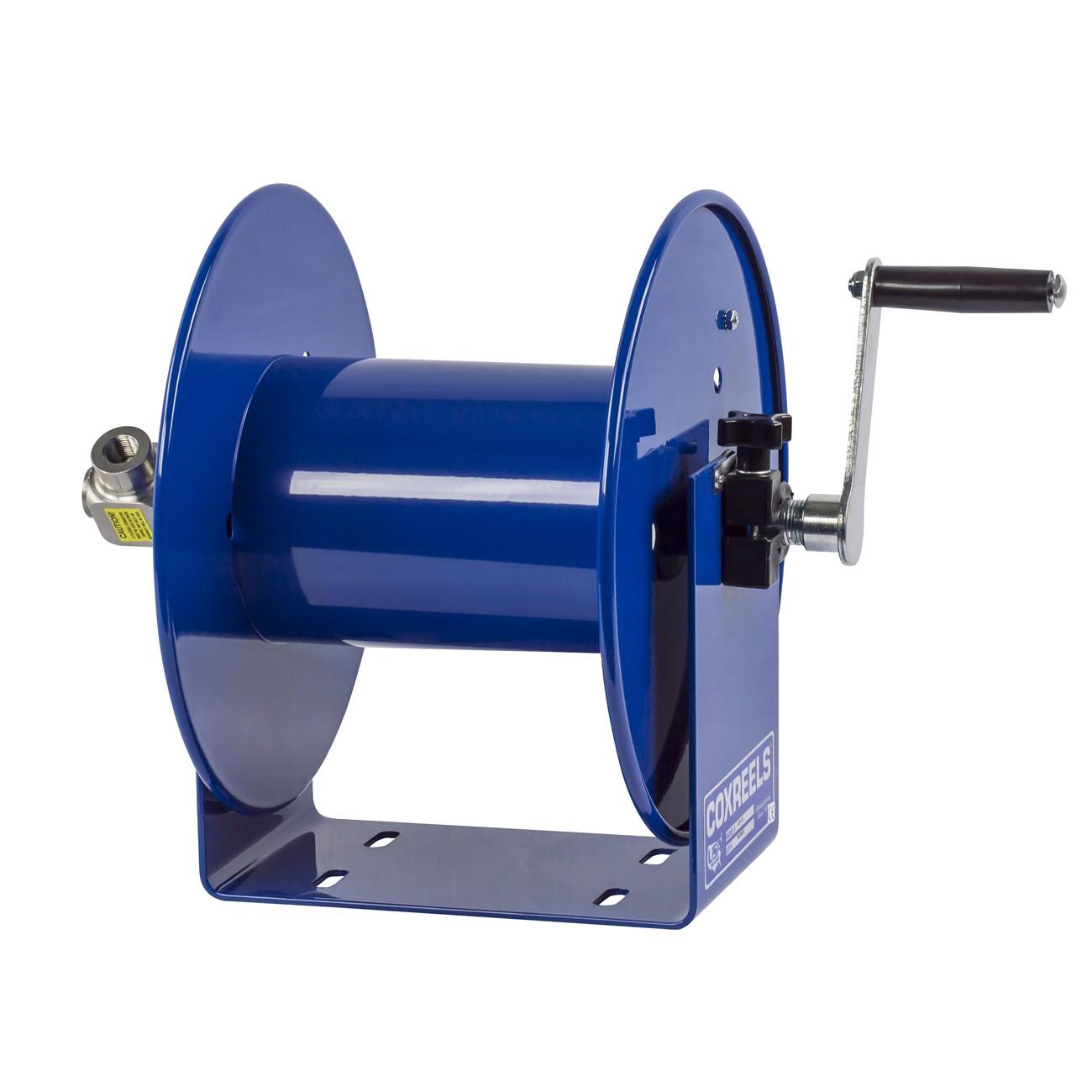

Coxreels 112P-3-8 Pure Flow Hose Reel 3/8 in 100 Ft

Product Description

The COXREELS 112P-3-8 is a hand crank hose reel built for high-volume fluid delivery applications requiring a clean, non-contaminated flow path. It features a 3/8 inch inner diameter hose path and accommodates up to 100 feet of hose. The open drum design and low-profile outlet riser promote a flat, non-crimping hose wrap that protects hose integrity over repeated use cycles. A CPC powder coat finish resists chipping and rust for long service life in mobile or fixed installations. Licensed plumbers, HVAC technicians, and fluid-handling contractors are the typical installers of this reel.

The 112P-3-8 suits applications where hose contamination must be controlled, including potable water delivery, respiratory air lines, and sanitized fluid transfer systems. The all-welded steel U-shaped frame provides structural rigidity for demanding mobile environments where the reel may be subject to vibration and lateral loads. The direct hand crank allows mechanical retraction without requiring a power source, making it practical for field service vehicles, service bays, and utility installations.

Key Features

• Non-corrosive stainless steel air and fluid path with machined stainless steel 90-degree full-flow NPT swivel inlet
• Solid one-piece heavy-gauge all-steel U-shaped frame for a compact, lightweight, and durable build
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, and storage
• Safe storage for respiratory air hose lines, potable water lines, and any hose requiring a sanitized, non-contaminated fluid transfer path
• Long-lasting CPC powder coat finish that is chip-resistant and rust-inhibiting

Compatibility

Designed as an OEM-style reel for 3/8 inch ID hose in portable or fixed fluid-handling systems requiring pure-flow, non-contaminating service.

Installation Notes

Installation is typically performed by licensed plumbers or fluid-system technicians. Shut off the fluid supply and depressurize the line completely before connecting or disconnecting the swivel inlet. Verify that NPT thread sealant used is compatible with the fluid being conveyed, particularly for potable water or breathing air applications. Mount the reel to a surface rated to support the combined weight of the unit and a fully loaded 100-foot hose.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Hose Length Capacity: 100 feet
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 19 pounds
• Frame Material: All-welded steel
• Finish: CPC powder coat
• Swivel Material: Stainless steel
• Retraction Type: Direct hand crank
• UPC: 674255829107

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112P-3-8
