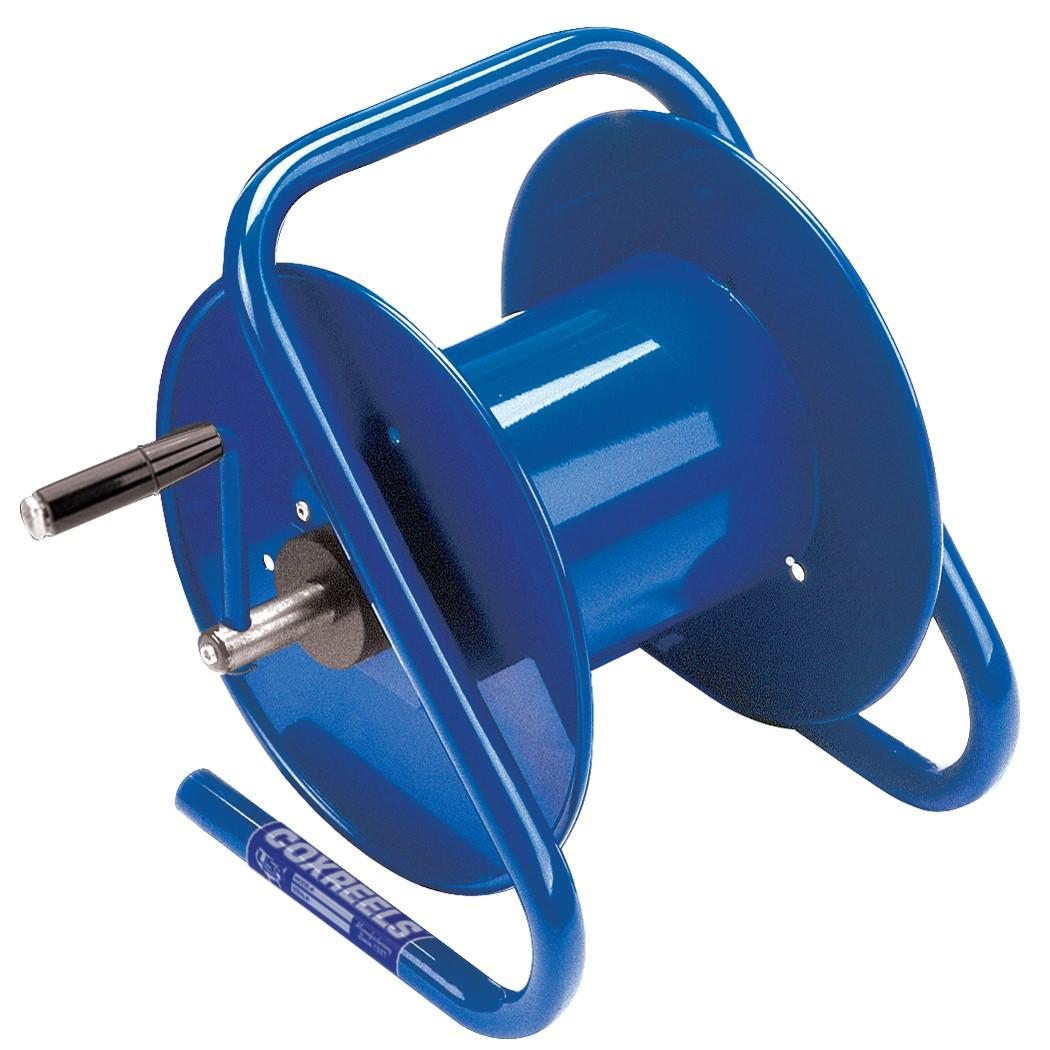

Coxreels 112P-3-8-CM Pure Flow Hose Reel 3/8 in 100 Ft

Product Description

The COXREELS 112P-3-8-CM is a hand crank Pure Flow series hose reel engineered for the safe, uncontaminated transfer of potable water, breathing air, and other clean fluids. Built with a full stainless steel air and fluid path and a stainless steel swivel inlet, this reel meets the sanitary demands of drinking water systems and respiratory air supply lines. The swivel uses non-toxic, food-grade grease throughout. The one-piece steel tube frame measures 18 inches long, 13 inches wide, and 19.5 inches tall, and the entire unit weighs 18 pounds. The direct hand crank provides reliable mechanical retraction without requiring a power source.

This reel is suited for residential, commercial, and industrial applications where fluid purity is a non-negotiable requirement. Typical installations include potable water service stations, breathing air supply setups in confined-space or respiratory protection programs, and any service environment requiring sanitized, non-contaminated fluid delivery. The 3/8 inch ID hose path and full-flow NPT swivel inlet maintain consistent flow rates across the full 100-foot hose length. The base includes mounting holes for either temporary positioning or permanent installation on floors, walls, or work benches.

Key Features

• Full stainless steel air and fluid path with machined stainless steel 90-degree full-flow NPT swivel inlet for corrosion resistance and fluid purity
• Non-toxic, food-grade grease in swivel — suitable for potable water and breathing air service
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, and storage
• One-piece 1-inch steel tube frame with base mounting holes for temporary or permanent installation
• Chip-resistant, rust-inhibiting CPC powder coat finish with hose control bar included

Compatibility

Designed for use with 3/8 inch ID hose up to 100 feet in length. Suitable for low-pressure and high-pressure breathing air systems, potable water distribution lines, and other clean-fluid hose applications requiring a sanitized, non-contaminated fluid path.

Installation Notes

Installation is typically performed by a plumber, safety equipment technician, or qualified maintenance professional. Shut off the fluid supply and depressurize the hose line completely before mounting or servicing the reel. Base mounting holes allow bolting to a fixed surface — use fasteners rated for the substrate and service load. Verify that all downstream fittings and hose materials are rated for the intended fluid type and working pressure before placing the system in service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Length: 100 feet
• Retraction Type: Hand Crank
• Swivel Material: Stainless Steel
• Fluid Path Material: Stainless Steel
• Frame Material: 1-inch Steel Tube, One-Piece Construction
• Finish: CPC Powder Coat
• Unit Length: 18 inches
• Unit Width: 13 inches
• Unit Height: 19.5 inches
• Weight: 18 pounds
• UPC: 674255829114

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 112P-3-8-CM
