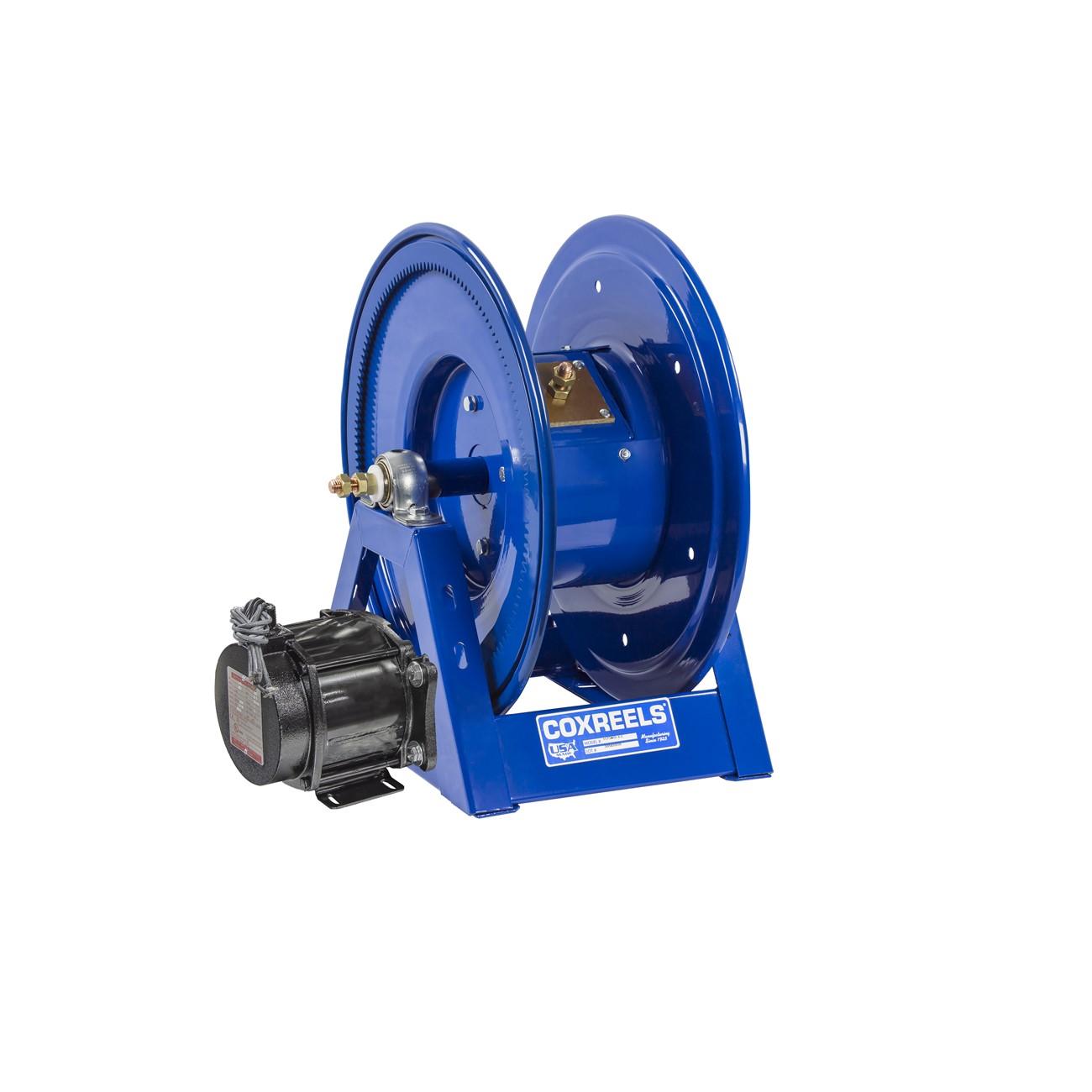

Coxreels 1125WCL-6-ED Cable Reel Motor Drive Steel

Product Description

The COXREELS 1125WCL-6-ED is a motorized welding cable reel built for grounding cable applications in industrial and trade environments. It runs on a 12-volt DC, 1/2 HP explosion-proof reversible motor and features an all-steel, powder-coated construction designed to handle the demands of daily use. The drum-located slip ring assembly keeps all electrical components inside the drum for a narrow overall width profile. Licensed electricians and welding professionals typically specify and install this unit in shops, fabrication facilities, and field service setups where organized, protected cable management is required.

The 1125WCL-6-ED is suited for applications requiring controlled extension and retraction of welding or grounding cable in both fixed and mobile installations. The built-in stacking bracket option allows pairing a lead reel and a ground reel into a single organized unit, reducing clutter and improving workstation efficiency. Its explosion-proof motor makes it appropriate for environments where flammable vapors or gases may be present. This reel is sold individually and is intended for professional installation.

Key Features

• 12-volt DC, 1/2 HP explosion-proof reversible motor drives cable retraction and extension
• Drum-located slip ring assembly with removable access panel for routine maintenance without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Long-handled locking pin secures reel against rotation during storage or transport
• CPC powder coat finish resists chips and rust for extended service life

Compatibility

Designed as an OEM-style motorized cable reel for welding and grounding cable applications in the COXREELS 1125WCL Series. A stacking bracket accessory is available for lead and ground cable combination setups.

Installation Notes

Installation should be performed by a qualified electrician familiar with motor-driven reel systems and applicable NEC requirements. Disconnect and lock out all power sources before mounting or servicing the reel or its electrical components. Secure the A-frame base to a structurally sound mounting surface using the integrated mounting pattern in the steel base. Verify the 12-volt DC power supply is correctly rated and protected before energizing the motor.

Technical Specifications

• Motor Voltage: 12 volts DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge steel
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 64 pounds
• UPC: 674255832091

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125WCL-6-ED
