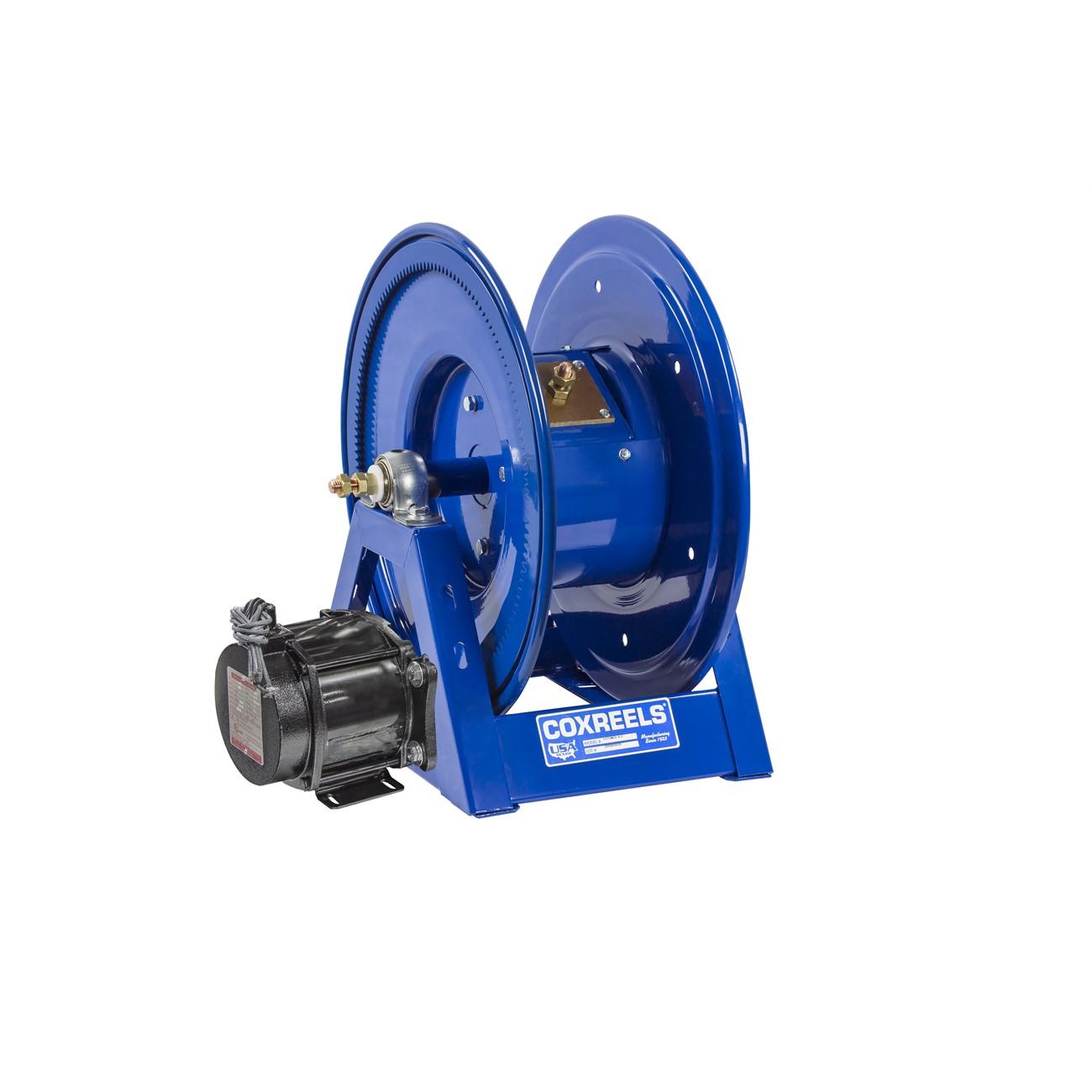

Coxreels 1125WCL-6-EB Cable Reel Motor Drive Steel

Product Description

The COXREELS 1125WCL-6-EB is a heavy-duty welding cable reel built for grounding cable applications in demanding industrial environments. It is driven by a 24-volt DC, 1/3 HP explosion-proof reversible motor and constructed with a powder-coated steel frame and CNC-spun ribbed discs. All electrical components are housed inside the drum, resulting in a narrow overall width that saves space on the job site. A drum-located slip ring assembly allows routine maintenance without removing the reel from its mount. Licensed electricians and welding professionals are the primary installers of this unit.

The 1125WCL-6-EB is designed for industrial and commercial environments where welding cable must be extended and retracted repeatedly. Its motor-drive system reduces physical strain during heavy cable management tasks and extends cable service life by preventing kinks and sharp bends. A stacking bracket is available separately, allowing two reels to be combined into a single lead and ground combination unit for organized multi-cable setups.

Key Features

• 24-volt DC, 1/3 HP explosion-proof reversible motor for powered cable retrieval
• Drum-located slip ring assembly with removable access panel for maintenance without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Long-handled locking pin secures reel against rotation during storage or transport
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in harsh conditions

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS 1125WCL Series. A stacking bracket is available to pair this reel with a second unit for lead and ground cable combinations in one organized assembly.

Installation Notes

Installation should be performed by a qualified electrician familiar with motor-driven cable reel systems. Disconnect and lock out all power sources before servicing electrical components or the slip ring assembly. Secure the reel to a structurally sound mounting surface using the integrated base mounting pattern. Wiring of the 24-volt DC motor drive should comply with applicable NEC requirements for the installation environment.

Technical Specifications

• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP
• Motor Type: Explosion-proof reversible
• Frame Gauge: 12-gauge steel
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 64 pounds
• UPC: 674255925137

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125WCL-6-EB
