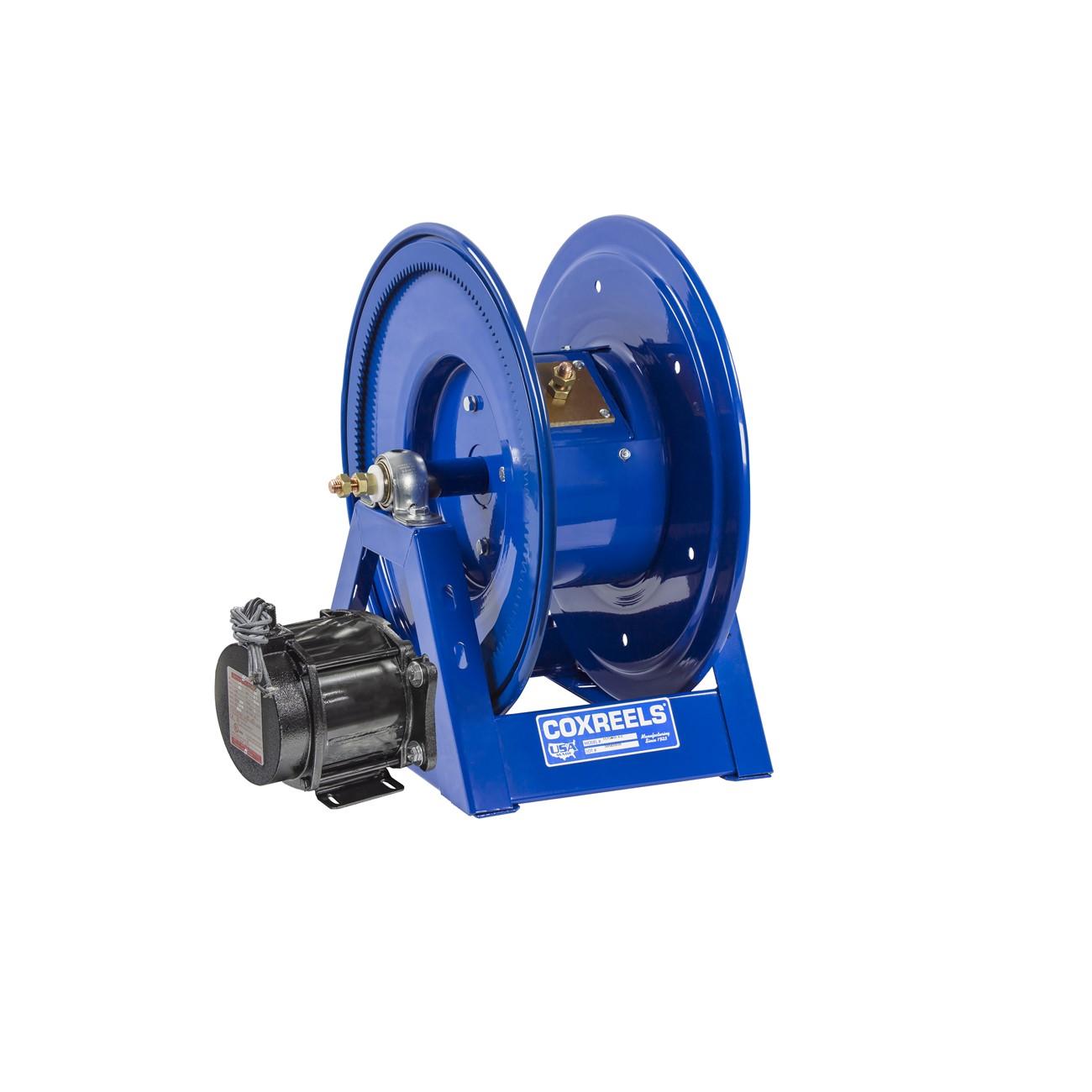

Coxreels 1125WCL-6-EA Cable Reel Motor Drive Steel

Product Description

The COXREELS 1125WCL-6-EA is a motorized welding cable reel designed for grounding cable applications in demanding industrial and field environments. Built on a one-piece CNC robotically welded 12-gauge steel A-frame base, this reel integrates all electrical components inside the drum to achieve a narrow overall width profile. The unit ships with a 115-volt AC, 1/2 HP explosion-proof reversible motor and features a drum-located slip ring assembly with a removable access panel for routine maintenance without dismounting the reel. A long-handled locking pin holds the drum stationary during storage or transport. Licensed electricians and welding equipment technicians are the primary installers of this reel.

The 1125WCL-6-EA is suited for industrial facilities, construction sites, and maintenance shops where grounding or welding cable must be deployed and retrieved repeatedly. The narrow drum width makes it practical in space-constrained installations. An optional stacking bracket allows two reels to be paired into a single organized lead-and-ground combination unit, reducing footprint and cable management time. This reel is sold individually.

Key Features

• 115-volt AC, 1/2 HP explosion-proof reversible motor for powered cable retrieval
• Drum-located slip ring assembly with removable panel for maintenance without removing reel from mount
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength and cable protection
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Long-lasting CPC powder coat finish that resists chipping and rust

Compatibility

Designed as an OEM-style motorized cable reel for welding and grounding cable applications in industrial and construction environments. Compatible with optional stacking bracket for lead-and-ground combination configurations.

Installation Notes

Installation should be performed by a qualified electrician or mechanical technician familiar with motor-driven reel systems. Disconnect and lock out all power sources before making electrical connections to the motor or slip ring assembly. Mount the reel to a structurally adequate surface using the mounting pattern located in the steel base. Follow applicable NEC requirements for motor branch circuit wiring and grounding of the reel frame.

Technical Specifications

• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 64 pounds
• UPC: 674255832367

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125WCL-6-EA
