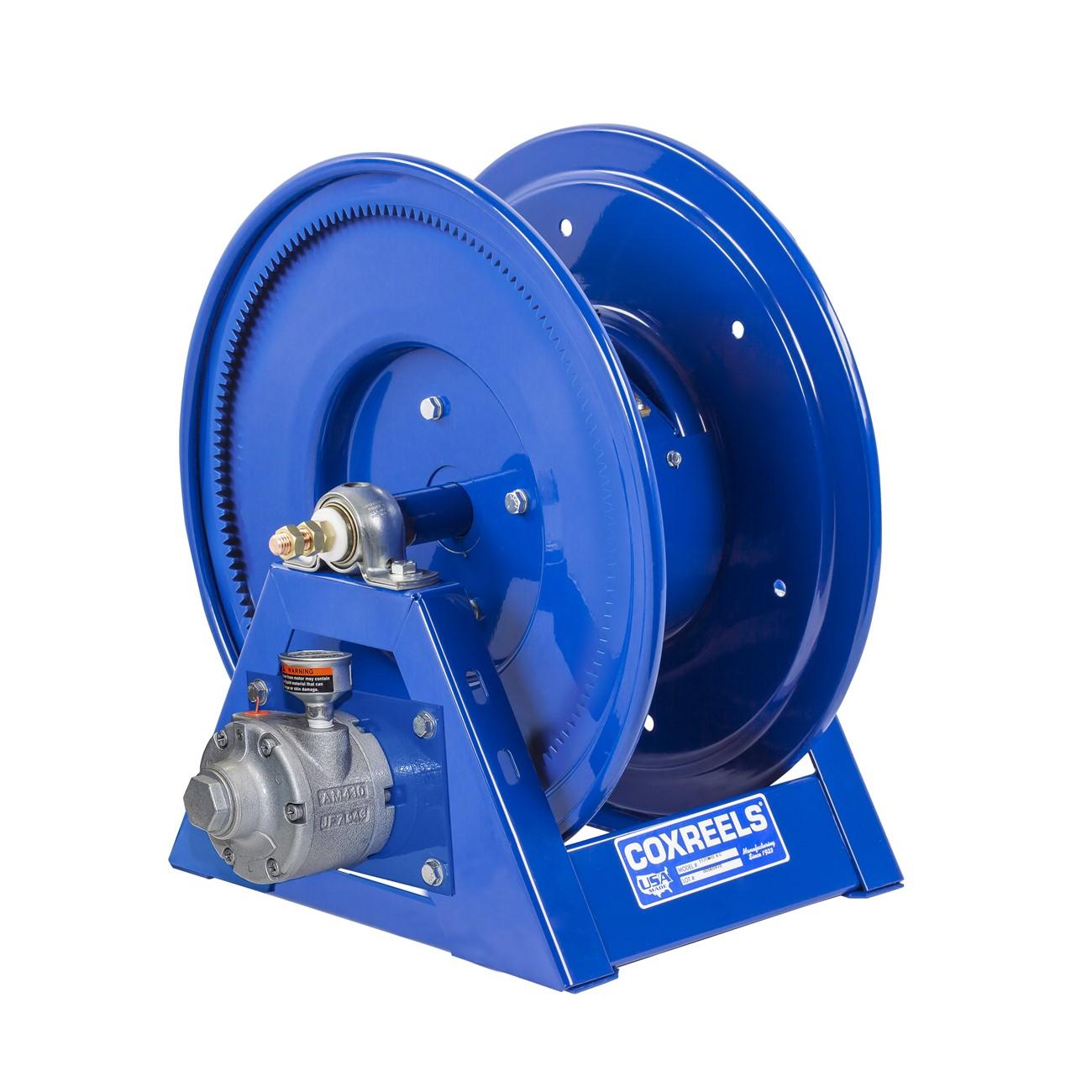

Coxreels 1125WCL-6-A Welding Cable Reel Motor Drive

Product Description

The COXREELS 1125WCL-6-A is a motor-drive welding cable reel built for grounding cable management in demanding shop and field environments. Constructed from steel with a CPC powder coat finish, this reel is designed to extend the service life of welding cable by keeping it organized, protected, and easy to deploy. All electrical components are housed inside the drum, creating a narrow overall width that suits tight installations. A 4-vane aluminum-body air motor drives the reel, and the drum-located slip ring assembly supports continuous electrical connection during operation. This reel is installed by welding technicians, electricians, and maintenance professionals in industrial and fabrication settings.

The 1125WCL-6-A is suited for grounding cable applications in welding operations, both residential shop and commercial fabrication environments. The unit can be used as a standalone grounding reel or paired with a stacking bracket to form a lead and ground combination in a single organized unit. The compact footprint, at 25.5 inches long by 22 inches wide by 22 inches tall, allows mounting in overhead, wall, or floor configurations. A locking pin secures the drum during storage and transport, making it practical for mobile or job-site use.

Key Features

• Drum-located slip ring assembly with removable access panel for routine maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and cable protection
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Long-handled locking pin secures the drum against rotation during storage or transport
• CPC powder coat finish resists chipping and rust for extended service in industrial environments

Compatibility

Designed as an OEM-style motor-drive welding cable reel in the COXREELS 1125WCL Series. A stacking bracket accessory is available for lead and ground combination setups.

Installation Notes

Installation is typically performed by qualified electricians or welding equipment technicians. Disconnect and lock out all power sources before mounting or servicing the reel. Mounting hardware must be selected to suit the mounting surface load rating; use the integrated steel base mounting pattern for a secure, properly aligned installation. Follow applicable NEC requirements for grounding cable connections and conductor sizing.

Technical Specifications

• Drive Type: Motor Drive (4-Vane Aluminum-Body Air Motor)
• Frame Material: 12-Gauge Steel, CNC Robotically Welded
• Finish: CPC Powder Coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 46 pounds
• UPC: 674255828803

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125WCL-6-A
