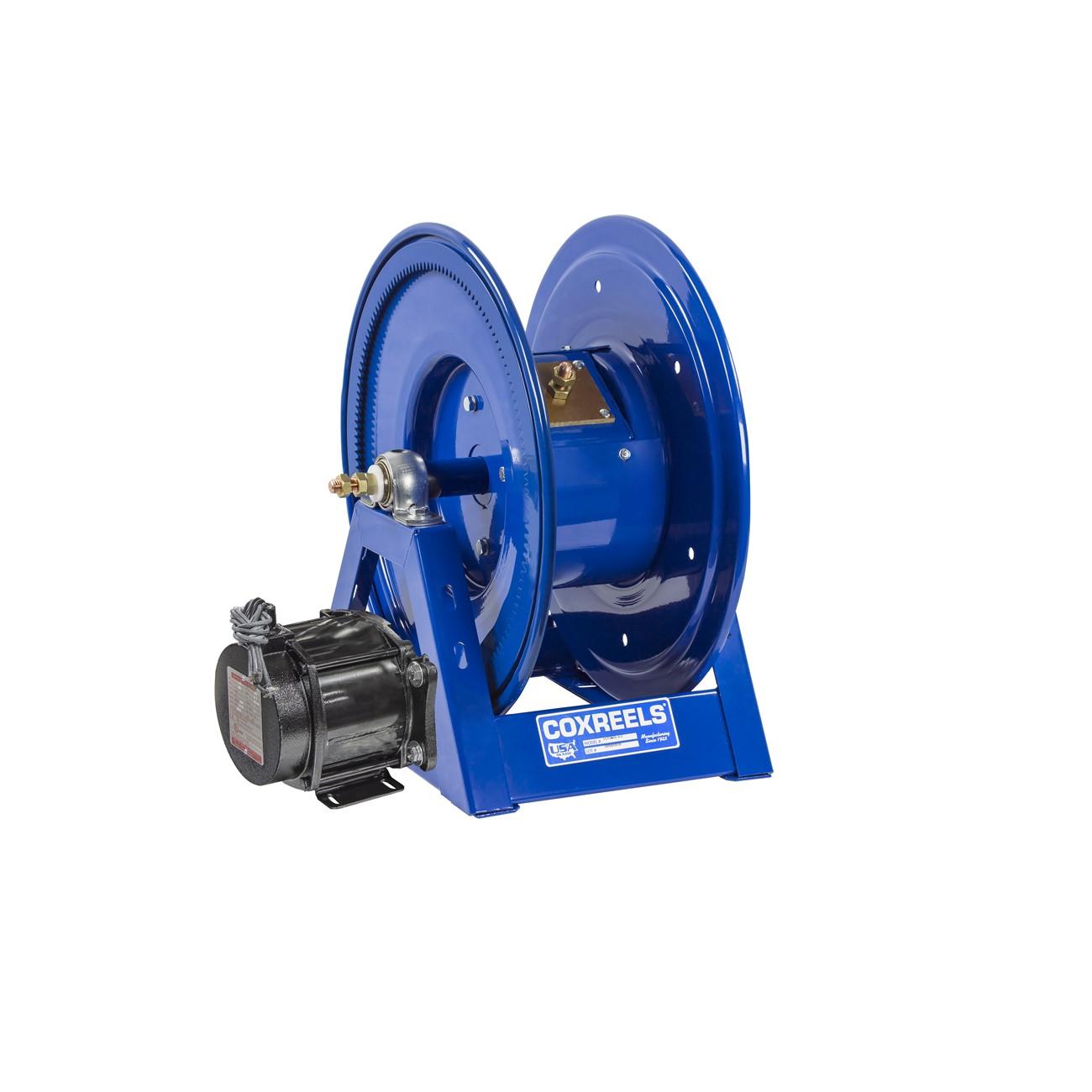

Coxreels 1125WCL-12-EA Cable Reel Motor Drive Steel

Product Description

The COXREELS 1125WCL-12-EA is a heavy-duty motorized welding cable reel designed for grounding cable applications in industrial and commercial environments. Powered by a 115-volt AC, 1/2 HP explosion-proof reversible motor, it extends and retracts cable with minimal operator effort, reducing wear on expensive welding cable. The drum houses all electrical components internally, resulting in a narrow-width profile that conserves floor or mounting space. The unit ships fully assembled and is built from 12-gauge CNC-welded steel with a powder coat finish that resists chipping, rust, and general shop abuse. Licensed electricians and welding equipment technicians are the primary installers for this type of reel.

The 1125WCL-12-EA is suited for grounding cable management in welding shops, fabrication facilities, and industrial service bays. The integrated drum-located slip ring assembly allows continuous electrical connection as the reel rotates. A stacking bracket is available separately, enabling a lead and ground cable reel to be combined into a single organized unit. This reel fits applications where a motorized retraction system is required to handle heavy cable runs efficiently.

Key Features

• 115-volt AC, 1/2 HP explosion-proof reversible motor drives cable extension and retraction
• Drum-located slip ring assembly with removable access panel for routine maintenance without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and cable protection
• One-piece 12-gauge CNC robotically welded steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Long-handled locking pin secures the drum during storage or transport
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in harsh environments

Compatibility

Designed as an OEM-style motorized cable reel for grounding and welding cable management applications in industrial and commercial settings. A stacking bracket accessory is available to pair this unit with a lead cable reel in a combined assembly.

Installation Notes

Installation should be performed by a qualified electrician familiar with NEC requirements for motor-driven equipment and explosion-proof electrical components. Power down and lock out the circuit before making any electrical connections to the motor or slip ring assembly. Secure the A-frame base to a structurally sound mounting surface using the integrated mounting pattern in the steel base. Do not bypass or modify the explosion-proof motor enclosure.

Technical Specifications

• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge steel
• Finish: CPC powder coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 71 pounds
• UPC: 674255923065

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125WCL-12-EA
